• Introduction

  Features






  Million Pixels Camera
  Upgrade wifi endoscope

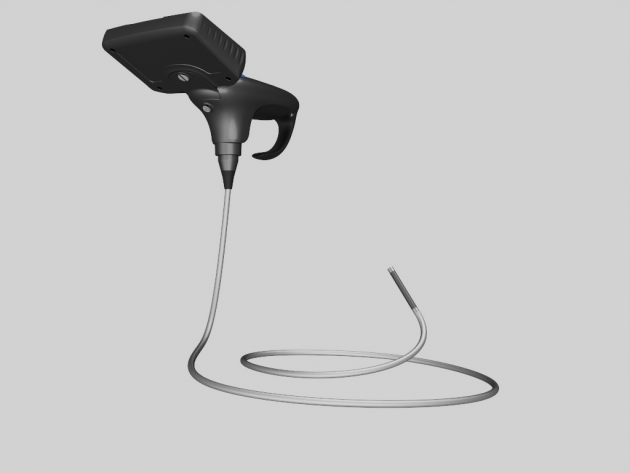

   360° Joystick 180° Bending angl






  3500mAh Batery






  Master ergonomic operation





  One key for snapping video recording








  Highlight fiber-glass guided for illumination





  WiFi connection to smart device







  Video Demostration







  Optional accessories: standing stand


  handbag packaging

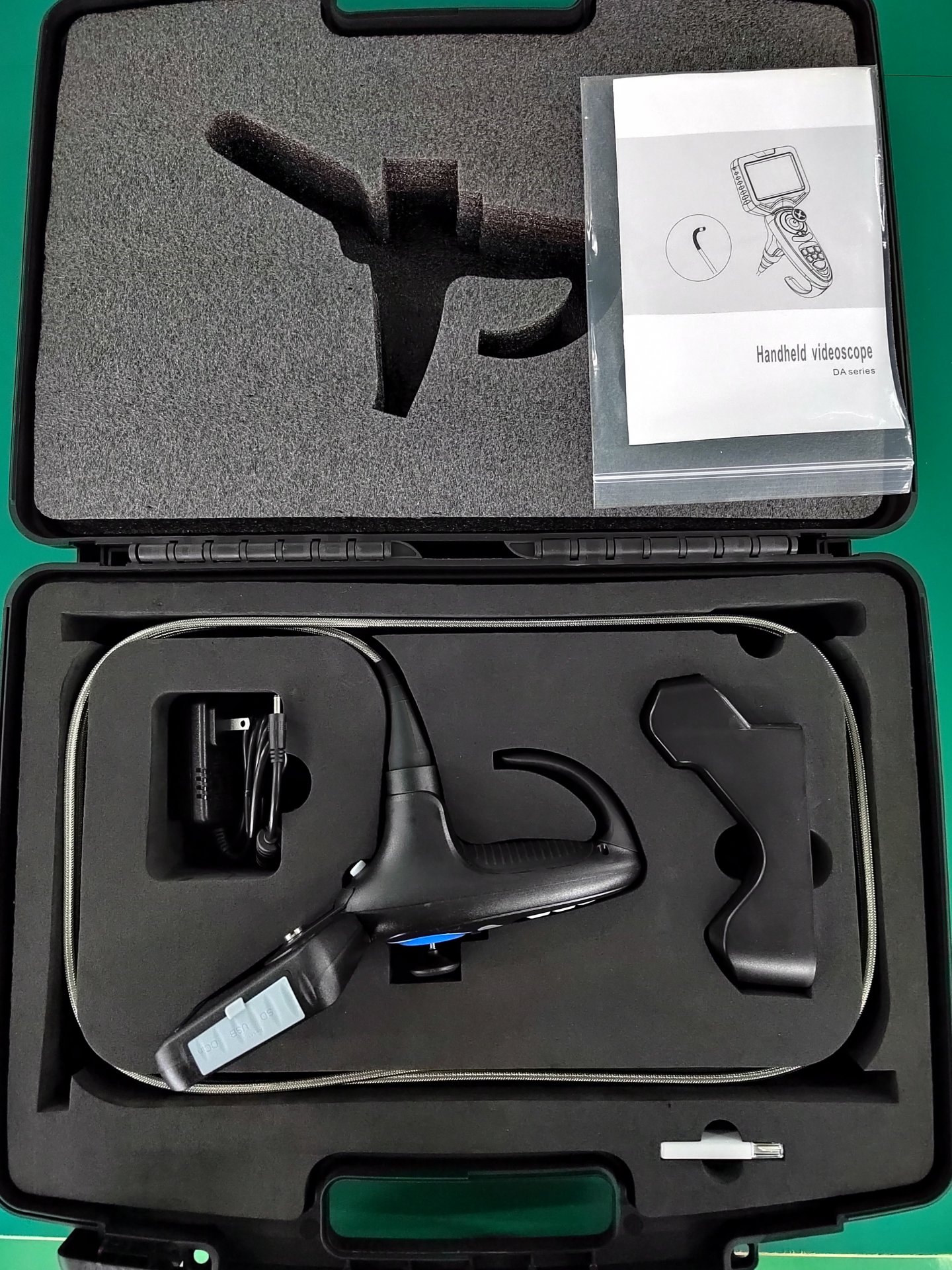

  For probe length 5m~10m

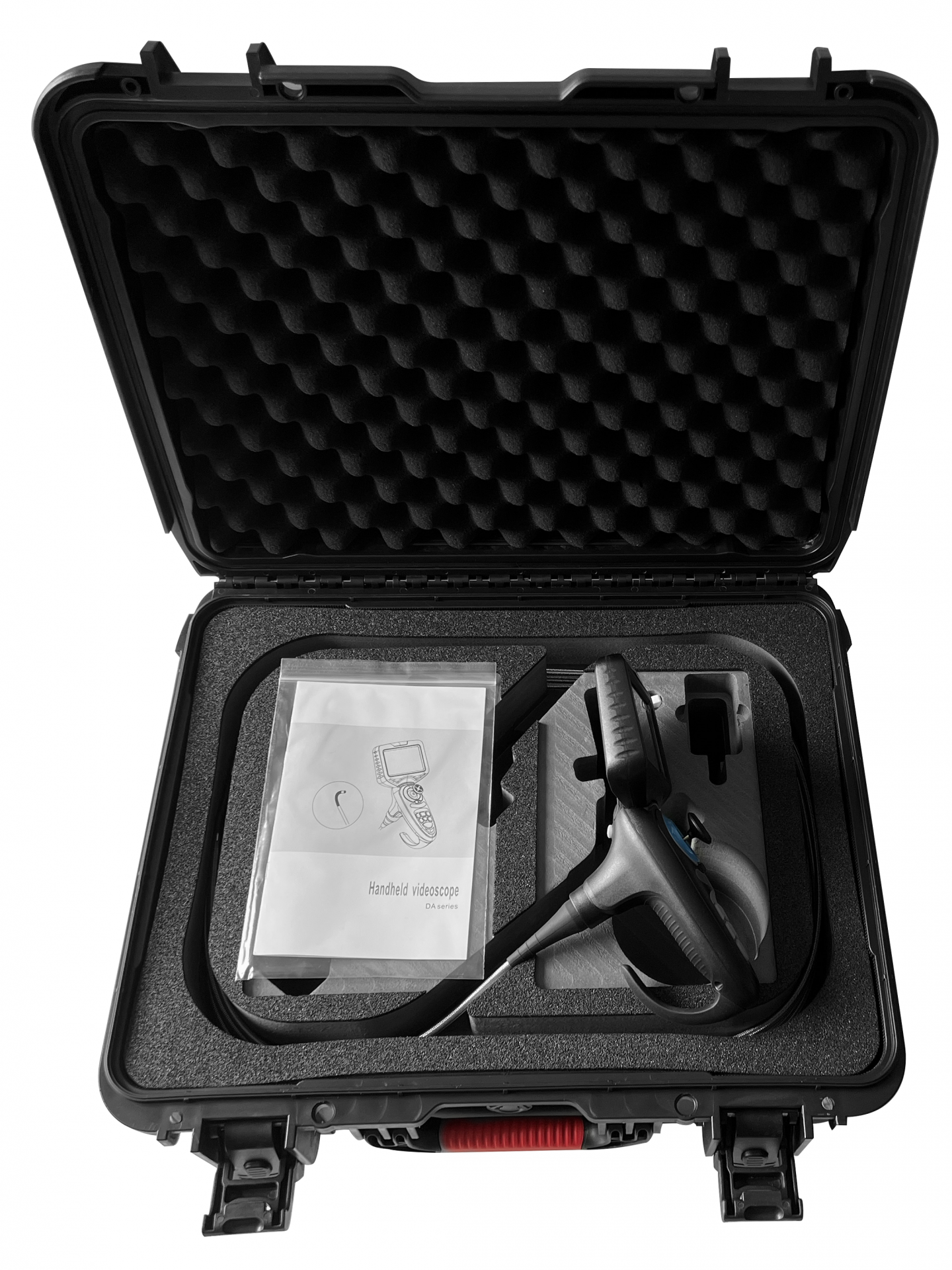

  For probe length 11m~15m

  Application












• Specification

  Series	DA4-28	DA4-40	DA4-60	DA4-62
  Probe Diameter	2.8mm	4.0mm	6.0mm	6.2mm
  Viewing Direction	0°  Front View
  Camera Pixels	400*400	1280*720(HD)
  D.O.F	5-80mm	10-100mm
  F.O.V	120°
  Screen	4.5" TFT - LCD
  Screen Resolution	580*480
  Articulation	360° Articulation
  Light Source	5W Rear-mounted LED + Optic fiber	8pcs Front LED or 5W Rear-mounted LED + Optic fiber		8pcs Front LED
  Illuminance	20000 Lx	Front LED10000 Lx / Rear-mounted LED 20000 Lx		10000 Lx
  	1~4 levels adjustable light
  Probe Material	Tungsten	Tungsten or Stainless steel		Stainless steel
  Probe Length	1m / 2m	1m / 2m / 3m	1m ~ 4m	5m ~ 15m
  Bending Angle	180° / 170°	180° / 170° / 160°	180° ~ 170°	160° ~ 130°
  Image Resolution	400*400 (JPG)	1280*720 (JPG)
  Video Resolution	400*400 (MOV)	1280*720 (MOV)
  Waterproof	Probe & Camera : IP67
  Language	Chinese (simplified), French, English, German, Spanish, Italian, Japanese
  Software Function	take pictures, video, audio recording
  Structure	Handheld, integrated design
  Data Port	32GB Micro-SD card, Max 128GB
  Storage Temperature	0℃~40℃
  Working Temperature	0℃~60℃
  Battery capacity	Lithium: 3500mAh, Working Time ≥5 Hours
  Power Charge	AC Adapter: Input 100-240V AC 50/60Hz   output DC5V
  Standard Accessory	32GB Micro SD card, card reader, English user manual, basic cleaning tools, charger (US, EU or UK type), protective carrying case. Optional accessories: stabilizing bracket
  Videoscope Siez & Weight	22.5x12.3x12.6cm, 0.5kg
  Package Siez & Weight	Export outer carton size: 40*12*28cm, GW : 1~2 Kgs (Standard Series 1m~4m) Export outer carton size: 47.5*15*36cm, GW : 3~4 Kgs (Long Probe Series 5m~10m) Export outer carton size: 52*21.5*44cm, GW : 7~8Kgs (Long Probe Series 11m~15m)

• Model

  DA4 4.5" 360˚ Series (Interchangeable Display & Probe)

  Series	Tip Dia.	Length	Probe Material	Camera Res.	Bend Angle	LED Light	illumination
  DA4-40014	Ø4.0mm	1M	Stainless Steel	1280*720	180°	Front LED	10000Lx
  DA4-40024	Ø4.0mm	2M	Stainless Steel	1280*720	170°		10000Lx
  DA4-40034	Ø4.0mm	3M	Stainless Steel	1280*720	160°		10000Lx
  DA4-60014	Ø6.0mm	1M	Stainless Steel	1280*720	180°		10000Lx
  DA4-60024	Ø6.0mm	2M	Stainless Steel	1280*720	180°		10000Lx
  DA4-60034	Ø6.0mm	3M	Stainless Steel	1280*720	170°		10000Lx
  DA4-60044	Ø6.0mm	4M	Stainless Steel	1280*720	170°		10000Lx
  DA4-62054	Ø6.2mm	5M	Stainless Steel	1280*720	160°		10000Lx
  DA4-62064	Ø6.2mm	6M	Stainless Steel	1280*720	160°		10000Lx
  DA4-62074	Ø6.2mm	7M	Stainless Steel	1280*720	150°		10000Lx
  DA4-62084	Ø6.2mm	8M	Stainless Steel	1280*720	150°		10000Lx
  DA4-62094	Ø6.2mm	9M	Stainless Steel	1280*720	140°		10000Lx
  DA4-62104	Ø6.2mm	10M	Stainless Steel	1280*720	130°		10000Lx
  DA4-62124	Ø6.2mm	12M	Stainless Steel	1280*720	110°		10000Lx
  DA4-62154	Ø6.2mm	15M	Stainless Steel	1280*720	110°		10000Lx
  DA4-28014R	Ø2.8mm	1M	Tungsten steel	400*400	180°	5W Rear-mounted LED + Optic fiber	20000Lx
  DA4-28024R	Ø2.8mm	2M	Tungsten steel	400*400	170°		20000Lx
  DA4-40014R	Ø4.0mm	1M	Tungsten steel	1280*720	180°		20000Lx
  DA4-40024R	Ø4.0mm	2M	Tungsten steel	1280*720	170°		20000Lx
  DA4-40034R	Ø4.0mm	3M	Tungsten steel	1280*720	160°		20000Lx
  DA4-60014R	Ø6.0mm	1M	Tungsten steel	1280*720	180°		20000Lx
  DA4-60024R	Ø6.0mm	2M	Tungsten steel	1280*720	180°		20000Lx
  DA4-60034R	Ø6.0mm	3M	Tungsten steel	1280*720	170°		20000Lx
  DA4-60014RS	Ø6.0mm	1M	Stainless Steel	1280*720	180°		20000Lx
  DA4-60024RS	Ø6.0mm	2M	Stainless Steel	1280*720	180°		20000Lx
  DA4-60034RS	Ø6.0mm	3M	Stainless Steel	1280*720	170°		20000Lx
