• Introduction

  Features


  Multifunctional articulating borescope




  5" IPS display

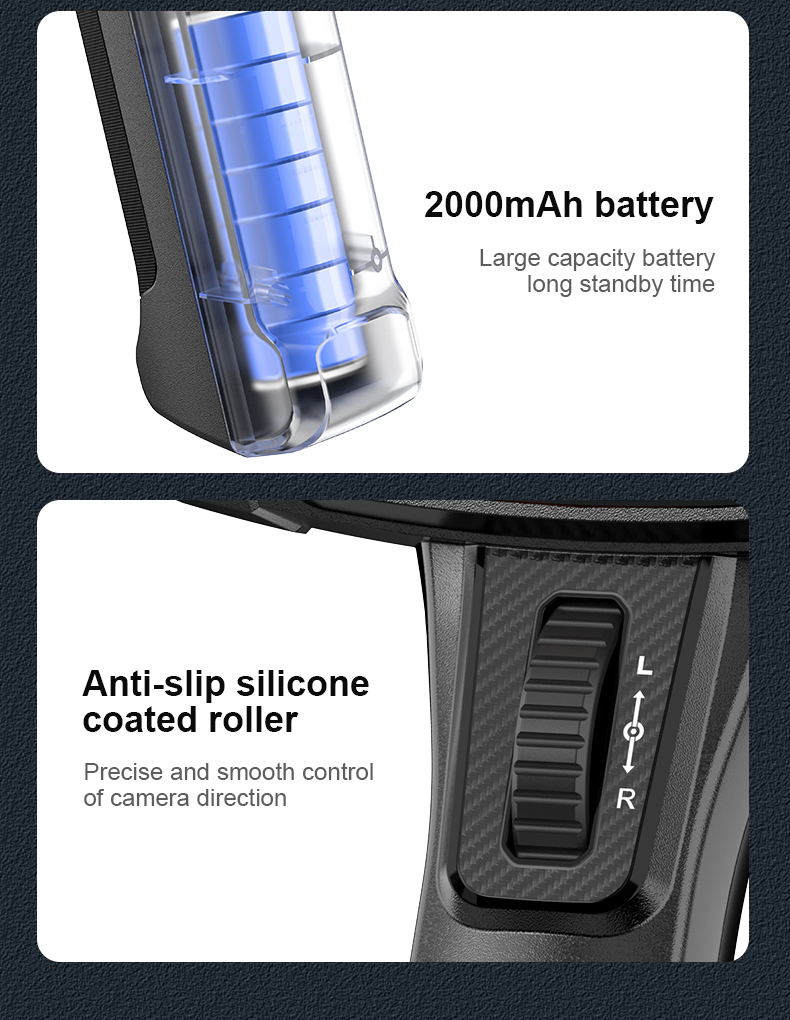

  2000mAh battery
  Anti-slip silicone coated roller





  Six functions

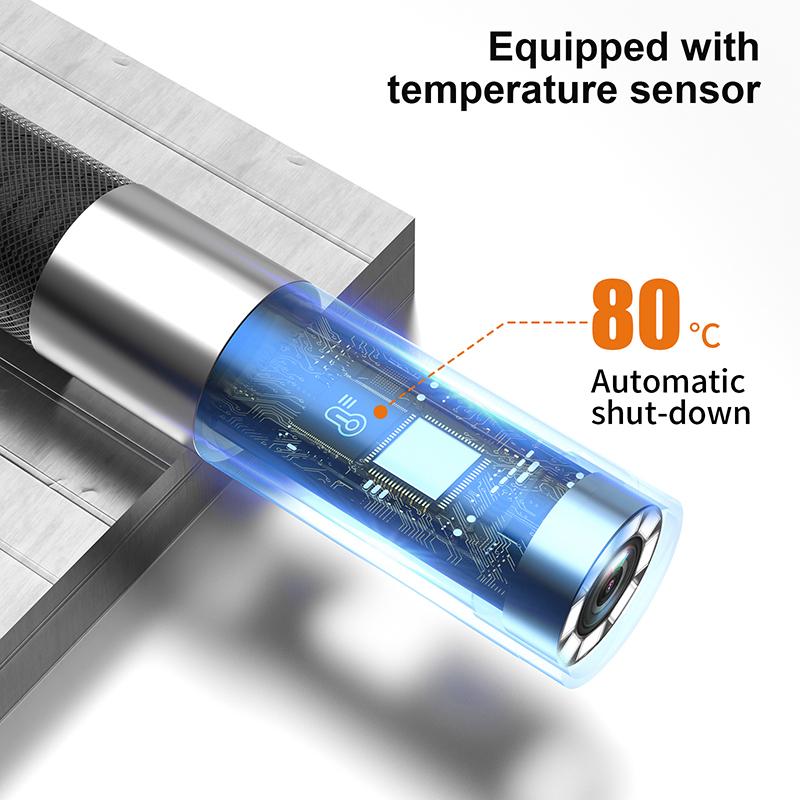

  Equipped with temperature sensor



  1 Megapixels



  IP67 waterproof



  High density tungsten wire material



  Two-way easy to bending 180º and combine with dual lens




  Product details



  E5R 85012D 5 HD boerscope with 8 5mm 1 5m dual view 2 way articulation tungsten semi rigid probe



  Application

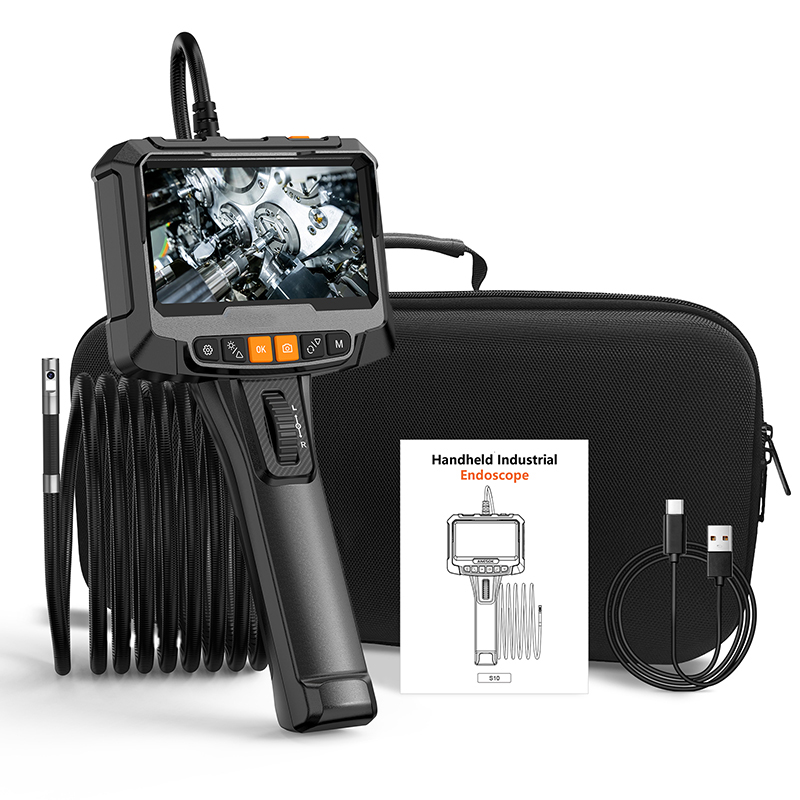

  Package







• Specification

  Series	E5S-85012	E5S-85012D	E5R-85012	E5R-85012D
  Prob​e Diameter	8.5mm
  Viewing Direction	0°  Front View	0° front / 90° side  Dual View	0°  Front View	0° front / 90° side  Dual View
  Tip Articulation	2-way articulation camera, 180° each side
  Camera Pixels	1MP
  D.O.F.	Front: 2-10cm
  F.O.V.	70°
  Image Resolution	1920*1080 (JPG)
  Video Resolution	1280*720(AVI)
  Probe Material	Soft-metal		Semi-rigid
  Light Source	4Pcs Led Lights
  Probe Length	1M	1.5M	1M	1.5M
  Waterproof	Camera: IP67
  Display	5" IPS screen
  Display Resolution	854*480
  Structure	Handheld, integrated design
  Data Port	USB-C, TF Card slot(Support 64GB)
  Working Temperature	-10℃~50℃
  Working Time	≥3h
  Battery Capacity	2000mhA
  Certification	CE / RoHS / ISO9001
  Box Size	42*30.5*9.5 CM

• Model

  E5S Series

  Model	Display	Tip Dia.	Length	Features	Material	Articulation
  E5S-85012	5"	Ø8.5 mm	1M		Soft-metal	2-way
  E5S-85012D	5"	Ø8.5 mm	1.5M	Dual Cameras	Soft-metal	2-way
  E5R-85012	5"	Ø8.5 mm	1M		Semi-rigid	2-way
  E5R-85012D	5"	Ø8.5 mm	1.5M	Dual Cameras	Semi-rigid	2-way
