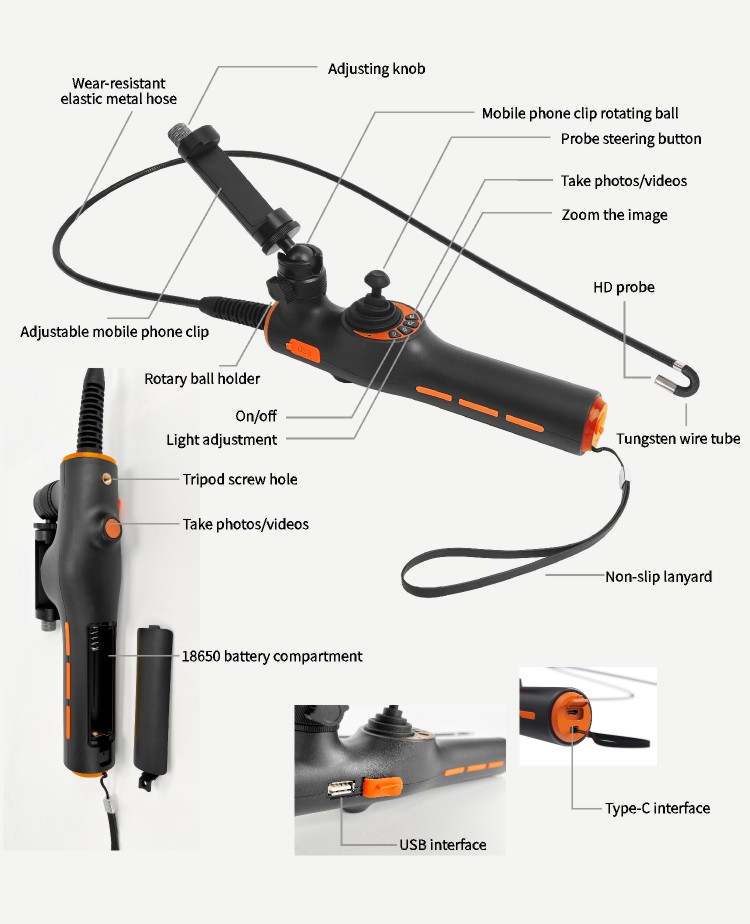

- 360° Articulation with Tungsten Tip Camera
- Universal Adjustable Phone Clip
- Stainless Steel Elastic Flexible Probe
- Long Depth of Field: 10mm to Infinity
- High Temperature Protection Alarm
- 18650 Rechargeable Battery (Easy to Replace)
- Quick Generation of Detection Report
-
Features

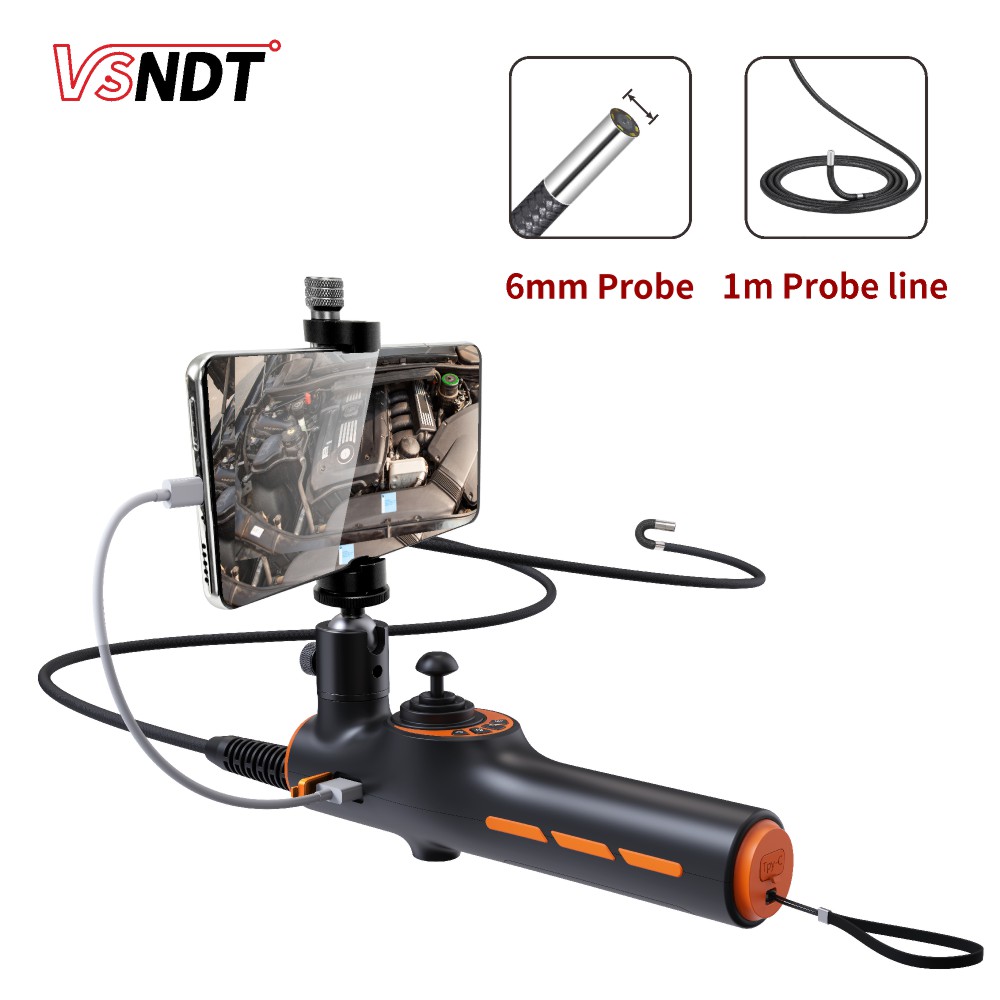

6mm probe 1M probe line

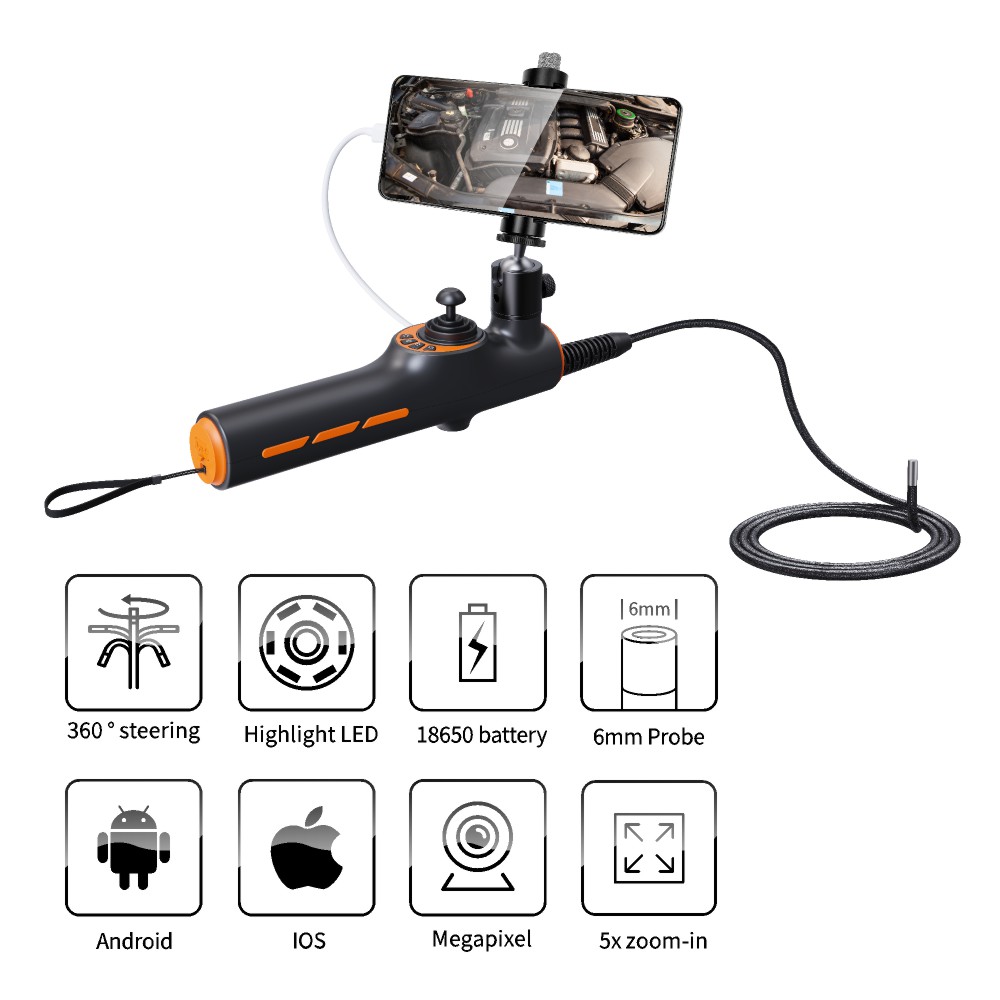

360° steering Bending angle 210°
Compatible with android / ios
Applicable to most mobile phones on the market
18650 battery
Video Demostration
Application scenario
Product list
-
Series CC Probe Diameter 6mm Viewing Direction 0° front Camera Pixels 1 MP D.O.F. 10mm ~ ∞ F.O.V. 100° Image Resolution 1280*720 (JPG) Video Resolution 1280*720(AVI) Operation method Support touch or keyboard operation on the smartphone Support function Photos, videos, brightness adjustment, zooming, high temperature and other functions File management Editable header, report function Image processing With freeze, zoom, photo, flip, video playback function Probe Material Stainless Steel Elastic Flexible Probe. Tungsten braided articulation tip. Light Source High Brightness Ceramic LED Language Chinese English etc 7 languages Probe Diamerter 6mm Probe Length 13mm Bend angle 210º max Waterproof Host: IP54 / Camera: IP67 Structure Handheld, integrated design Interface USB-C Working Temperature -10℃~50℃ Storage Temperature -20℃~60℃ Relative humidity Max 90%，no condensation Working Time ≥2h Battery 18650 charging lithium battery pack Box Size 41 x 28 x 9 cm -
CC 360˚ Smart Mobile Phone Series
Model Tip Dia. Length Probe Material Camera Res. Bend Angle Illumination CC-60014 Ø6.0mm 1M Stainless Steel
Tungsten tip.1 MP 210° 10000Lx -
Introduction to the Functions of a Mobile Borescope /Endoscope:
Examine Hard-to-Reach Areas: A mobile borescope / endoscope is a portable inspection tool primarily used to examine areas that are typically difficult to access, such as pipes, drainage systems, engine compartments, the interiors of electronic devices, pipelines, and automotive engines.
High-Definition Imaging and Video Recording: Mobile borescope / endoscope typically feature high-resolution cameras capable of capturing clear images and videos for inspection, analysis, and documentation purposes.
Flexible Probe: borescope / endoscope are equipped with a flexible and bendable probe, allowing them to navigate through curved pipes or narrow spaces to obtain the desired view.
LED Illumination: Many mobile borescope / endoscope come with built-in LED lighting to provide adequate illumination for a clear visual.
Smartphone Connectivity: borescope / endoscope are often connected to smartphones via USB or Wi-Fi, enabling users to view and record inspection results in real-time.
Versatile Applications: borescope / endoscope find applications in various fields, including mechanical maintenance, pipeline maintenance, circuit board inspections, medical diagnostics, and more.
Quick Report Generation: Some borescope / endoscope devices are equipped with report generation capabilities, allowing for the rapid creation of reports summarizing inspection results for further analysis or sharing.
In summary, a mobile borescope / endoscope is a versatile tool that assists users in visual inspection and documentation in a wide range of scenarios, aiding in better understanding and maintaining various equipment and systems.
-
Introduction
Features
6mm probe 1M probe line
360° steering Bending angle 210°
Compatible with android / ios
Applicable to most mobile phones on the market18650 battery
Video Demostration
Application scenario
Product list
-
Specification
Series CC Probe Diameter 6mm Viewing Direction 0° front Camera Pixels 1 MP D.O.F. 10mm ~ ∞ F.O.V. 100° Image Resolution 1280*720 (JPG) Video Resolution 1280*720(AVI) Operation method Support touch or keyboard operation on the smartphone Support function Photos, videos, brightness adjustment, zooming, high temperature and other functions File management Editable header, report function Image processing With freeze, zoom, photo, flip, video playback function Probe Material Stainless Steel Elastic Flexible Probe. Tungsten braided articulation tip. Light Source High Brightness Ceramic LED Language Chinese English etc 7 languages Probe Diamerter 6mm Probe Length 13mm Bend angle 210º max Waterproof Host: IP54 / Camera: IP67 Structure Handheld, integrated design Interface USB-C Working Temperature -10℃~50℃ Storage Temperature -20℃~60℃ Relative humidity Max 90%，no condensation Working Time ≥2h Battery 18650 charging lithium battery pack Box Size 41 x 28 x 9 cm -
Model
CC 360˚ Smart Mobile Phone Series
Model Tip Dia. Length Probe Material Camera Res. Bend Angle Illumination CC-60014 Ø6.0mm 1M Stainless Steel
Tungsten tip.1 MP 210° 10000Lx -
Q&A
Introduction to the Functions of a Mobile Borescope /Endoscope:
Examine Hard-to-Reach Areas: A mobile borescope / endoscope is a portable inspection tool primarily used to examine areas that are typically difficult to access, such as pipes, drainage systems, engine compartments, the interiors of electronic devices, pipelines, and automotive engines.
High-Definition Imaging and Video Recording: Mobile borescope / endoscope typically feature high-resolution cameras capable of capturing clear images and videos for inspection, analysis, and documentation purposes.
Flexible Probe: borescope / endoscope are equipped with a flexible and bendable probe, allowing them to navigate through curved pipes or narrow spaces to obtain the desired view.
LED Illumination: Many mobile borescope / endoscope come with built-in LED lighting to provide adequate illumination for a clear visual.
Smartphone Connectivity: borescope / endoscope are often connected to smartphones via USB or Wi-Fi, enabling users to view and record inspection results in real-time.
Versatile Applications: borescope / endoscope find applications in various fields, including mechanical maintenance, pipeline maintenance, circuit board inspections, medical diagnostics, and more.
Quick Report Generation: Some borescope / endoscope devices are equipped with report generation capabilities, allowing for the rapid creation of reports summarizing inspection results for further analysis or sharing.
In summary, a mobile borescope / endoscope is a versatile tool that assists users in visual inspection and documentation in a wide range of scenarios, aiding in better understanding and maintaining various equipment and systems.
