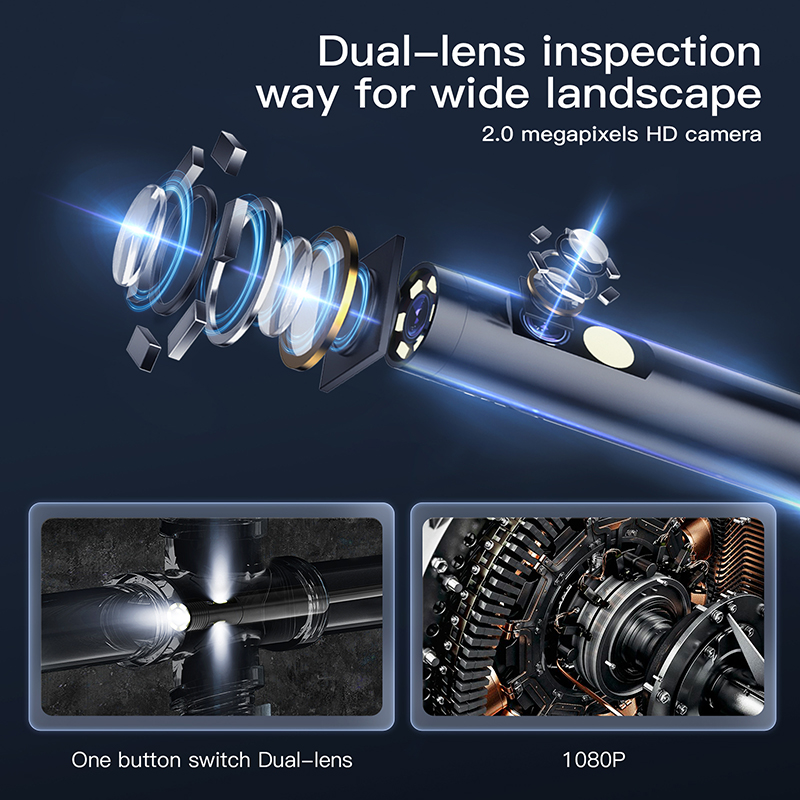

EC5 Series 5" HD Video Borescope
1 / 1
  • EC5 Series 5" HD Video Borescope
EC5 Series 5" HD Video Borescope
Description:
- 5" HD OLED Monitor
- Camera Pixels 2,000,000
- Snapshot & Video Recording
- 6+1 Adjustable Led Lights
  • Introduction
  • Specification
  • Model
  • Features
















    Key Description


    Unboxing








  • Series EC5-3 EC5-5 EC5-8
    Prob​e Diameter 3.9mm 5mm 8mm
    Viewing Direction 0°  Front View 0° front / 90° side  Dual View
    Camera Pixels 2MP
    D.O.F. Front: 2-15cm / Side: 2-5cm
    F.O.V. 70°
    Image Resolution 1920*1080 (JPG)
    Video Resolution 1920*1080(AVI)
    Probe Material Semi-Rigid (Snake Tube)
    Light Source 6+1 Adjustable Led Lights
    Probe Length 1M 1M / 3M / 5M / 10M

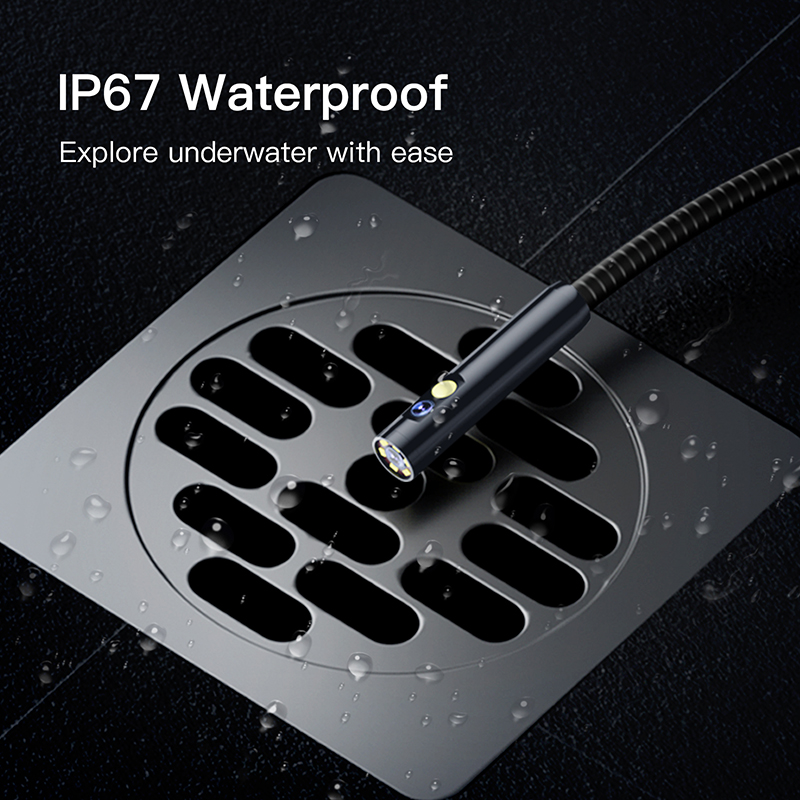

    Waterproof  Camera: IP67
    Display 5" OLED screen
    Display Resolution 1280*720
    Structure Handheld, integrated design
    Data Port Micro USB, TF Card slot  (Support 256GB)
    Working Temperature 0℃~40℃
    Working Time ≥6h
    Battery Capacity 4400mhA
    Certification CE / RoHS / FCC
    Box Size 31.5*21*11 CM
  • EC5 Series

    Model Display Tip Dia. Length Features
    EC5R-3901 5" Ø3.9 mm 1M
    EC5R-5501D 5" Ø5.5 mm 1M Dual Cameras
    EC5R-5503D 5" Ø5.5 mm 3M Dual Cameras
    EC5R-5505D 5" Ø5.5 mm 5M Dual Cameras
    EC5R-5510D 5" Ø5.5 mm 10M Dual Cameras
    EC5R-8001D 5" Ø8 mm 1M Dual Cameras
    EC5R-8003D 5" Ø8 mm 3M Dual Cameras
    EC5R-8005D 5" Ø8 mm 5M Dual Cameras
    EC5R-8010D 5" Ø8 mm 10M Dual Cameras
  • Introduction

    Features
















    Key Description


    Unboxing








  • Specification
    Series EC5-3 EC5-5 EC5-8
    Prob​e Diameter 3.9mm 5mm 8mm
    Viewing Direction 0°  Front View 0° front / 90° side  Dual View
    Camera Pixels 2MP
    D.O.F. Front: 2-15cm / Side: 2-5cm
    F.O.V. 70°
    Image Resolution 1920*1080 (JPG)
    Video Resolution 1920*1080(AVI)
    Probe Material Semi-Rigid (Snake Tube)
    Light Source 6+1 Adjustable Led Lights
    Probe Length 1M 1M / 3M / 5M / 10M
    Waterproof  Camera: IP67
    Display 5" OLED screen
    Display Resolution 1280*720
    Structure Handheld, integrated design
    Data Port Micro USB, TF Card slot  (Support 256GB)
    Working Temperature 0℃~40℃
    Working Time ≥6h
    Battery Capacity 4400mhA
    Certification CE / RoHS / FCC
    Box Size 31.5*21*11 CM
  • Model

    EC5 Series

    Model Display Tip Dia. Length Features
    EC5R-3901 5" Ø3.9 mm 1M
    EC5R-5501D 5" Ø5.5 mm 1M Dual Cameras
    EC5R-5503D 5" Ø5.5 mm 3M Dual Cameras
    EC5R-5505D 5" Ø5.5 mm 5M Dual Cameras
    EC5R-5510D 5" Ø5.5 mm 10M Dual Cameras
    EC5R-8001D 5" Ø8 mm 1M Dual Cameras
    EC5R-8003D 5" Ø8 mm 3M Dual Cameras
    EC5R-8005D 5" Ø8 mm 5M Dual Cameras
    EC5R-8010D 5" Ø8 mm 10M Dual Cameras
