CT Series 5.1" HD Video Borescope Tungsten Probe 360°
1 / 5
  • CT Series 5.1" HD Video Borescope Tungsten Probe 360°
  • CT Series 5.1" HD Video Borescope Tungsten Probe 360°
  • CT Series 5.1" HD Video Borescope Tungsten Probe 360°
  • CT Series 5.1" HD Video Borescope Tungsten Probe 360°
  • CT Series 5.1" HD Video Borescope Tungsten Probe 360°

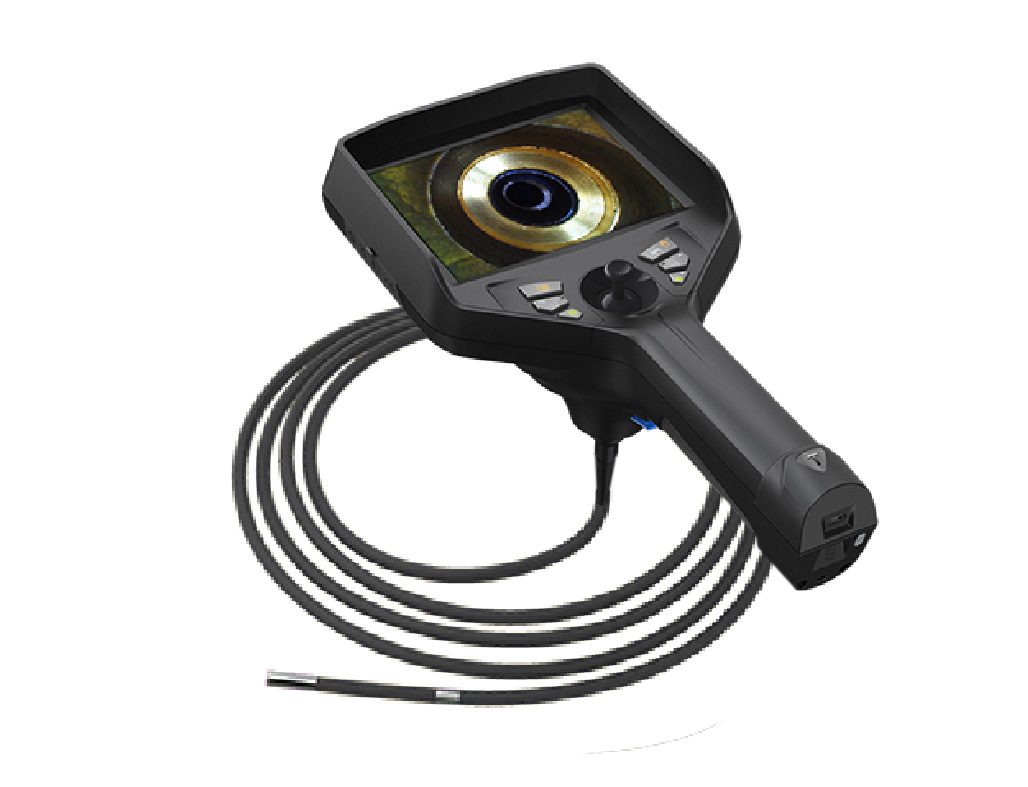

CT Series 5.1" HD Video Borescope Tungsten Probe 360°
Description:
- High-End Borescope Competitive with GE & Olympus
- 5.1" HD IPS LCD Monitor
- Wear-resistant Tungsten Braided Probe
- 360
° full swing articulation probe. Max 190° on each side.
- 720P HD Camera 1280 x 720 Resolution.
‧ Snapshot & Video Recording
‧ Super Bright 50000 Lux LED brightness adjustment
‧ Detachable Probe & Display
Download file
  • Introduction
  • Specification
  • Model
  • Inspection Probe
  • Q&A
  • Features



    High Resolution Screen 5.1"

    replaceable large HD screen
    portable small screen





    One Click Photo & Video



    humanized button design
    short press to take photo,long press to take video



    Water Proof Design



    ip65 body waterproof
    Tube waterproof level reaches to IP67



    Dual 18650 Lithium-ion Battery Design (Detachable)

    dual-battery design support for 8H working time one battery also available





    High Image Quliaty Engine Inspeciotn





    Sensitive 360 Degree Joystick





    Super Wide  Angle  of View No Blind Spot





    Super Wide Articulation Angle 190 Degree

    The probe supports 190 degree bending(maximum) Accurate and flexible






     9 Levels Light Intensity Adjustable




     High Quality Camera Lens




     Different Diameter of Probe for option




     Five layers of Tungsten-braided Probe

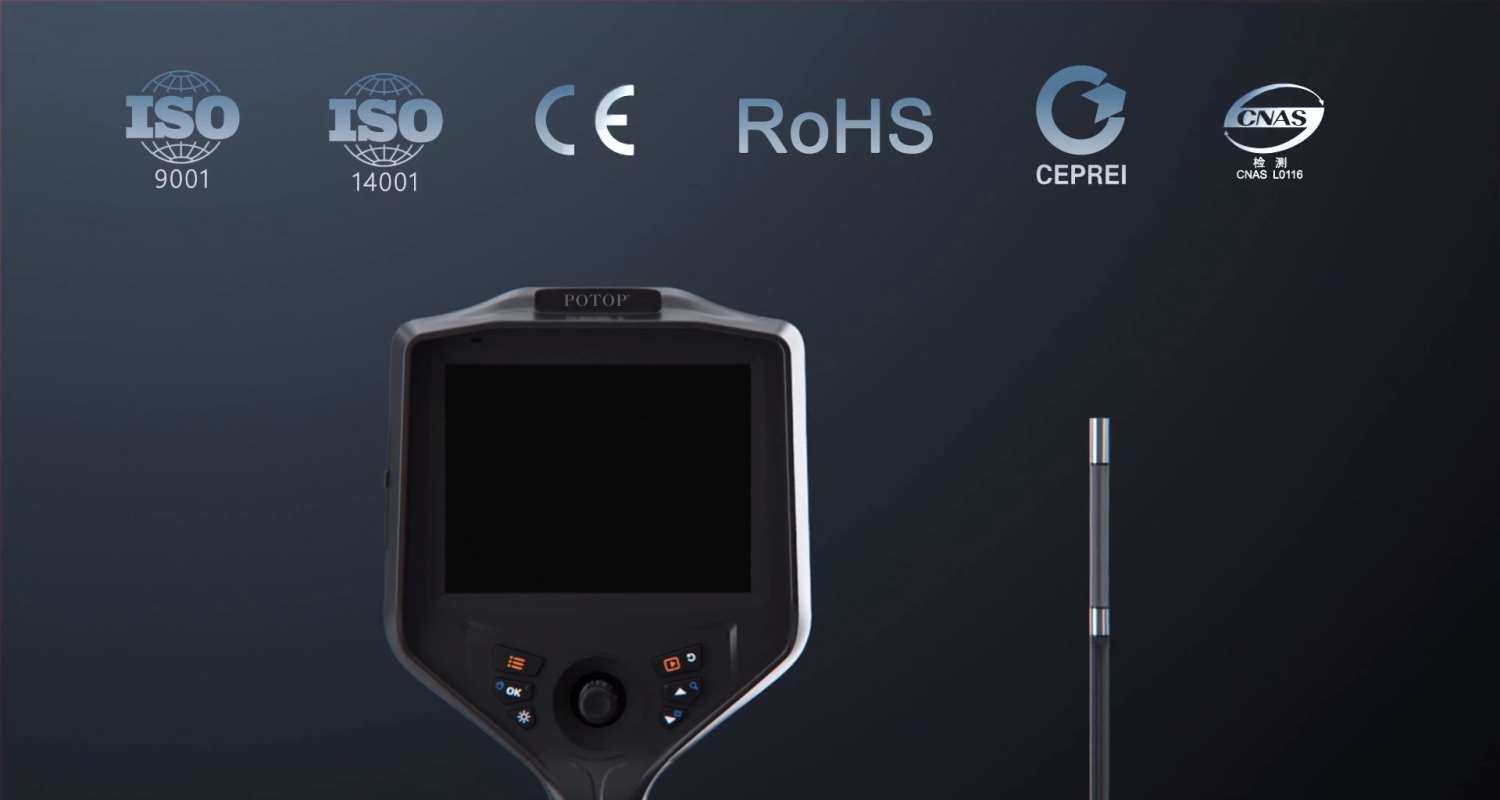

     Certificate




    Φ6mm 8m   /  Φ8mm 10m  -  Long Probe 360° Articulation Test & Image Test



    Φ3.9mm probe  /  Φ2.8mm probe  -  360° Image Quality Test

    Φ3.9mm /  6mm / Φ8mm dual-cameras (front & side view) probe   -  360° Image Quality Test

    Φ1.8mm probe   -  2 Way Image Quality Test


    Φ6mm Articulation Porbe Image Quality Testing Video From SD


    Articulation Radius



    Size

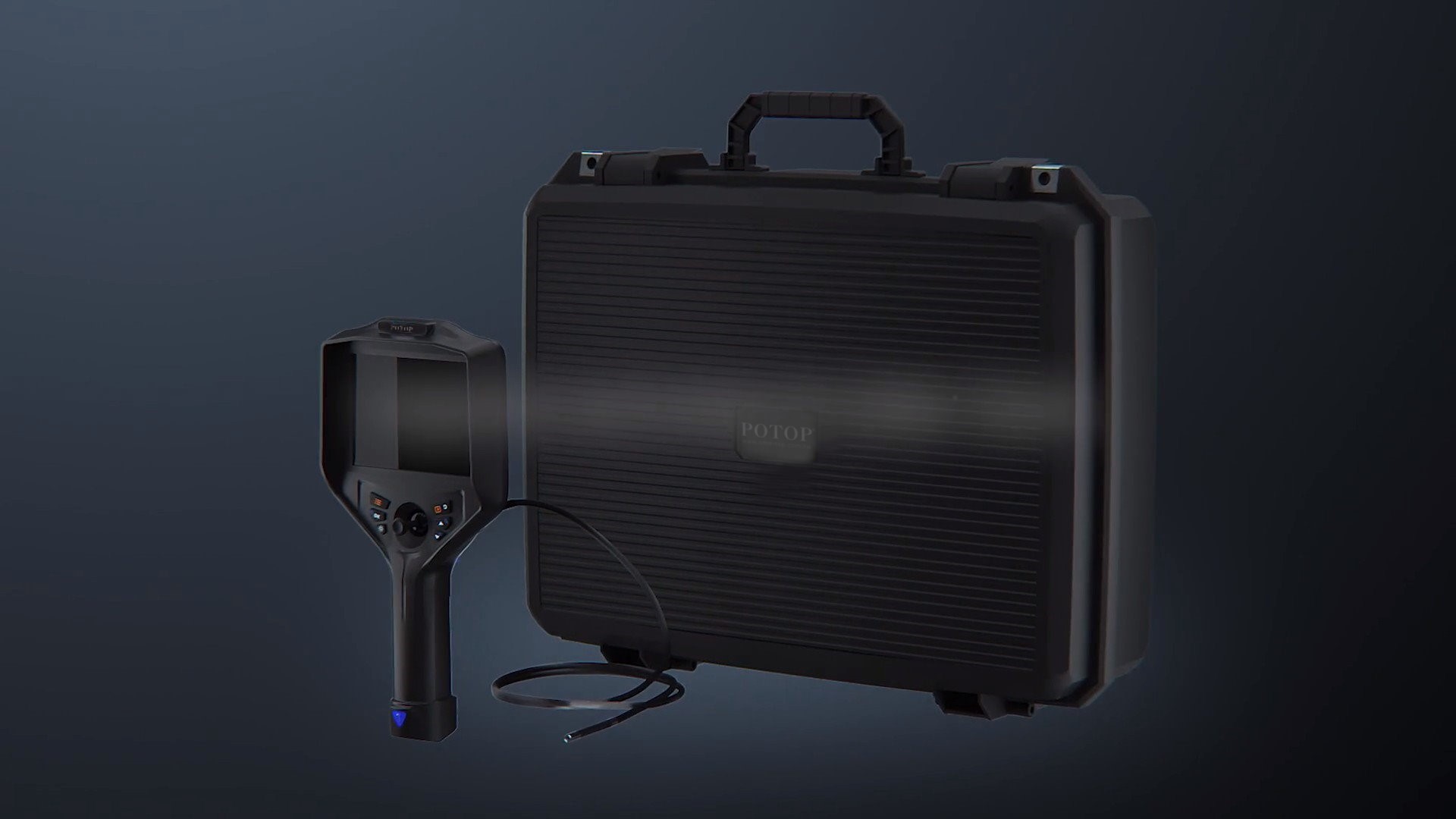

     Shock Proof ABS Portable Case



     Image Processing Function



    White Balance Adjust



    Negative Film Mode



    MAX 8X MAGNIFICATION





    Measuring Scale on Display

    (Best accuracy at 16mm distance.)

    Crosshair Scale



    Concentric Circle Scal

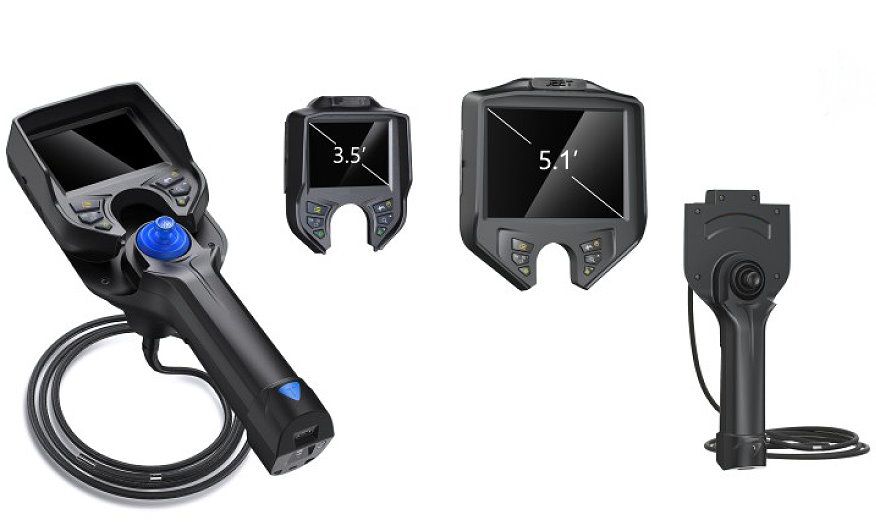

    Detachable Display and Probe
    5.1" display is compatible with different probes.

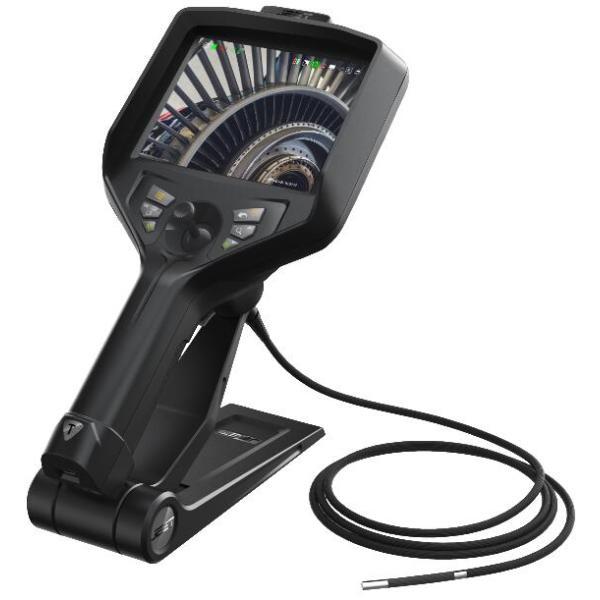

    Standard Accessories - Metal Folding Stand




    Safety Operating Instruction





     Infrared IR940nm Light (For Option)

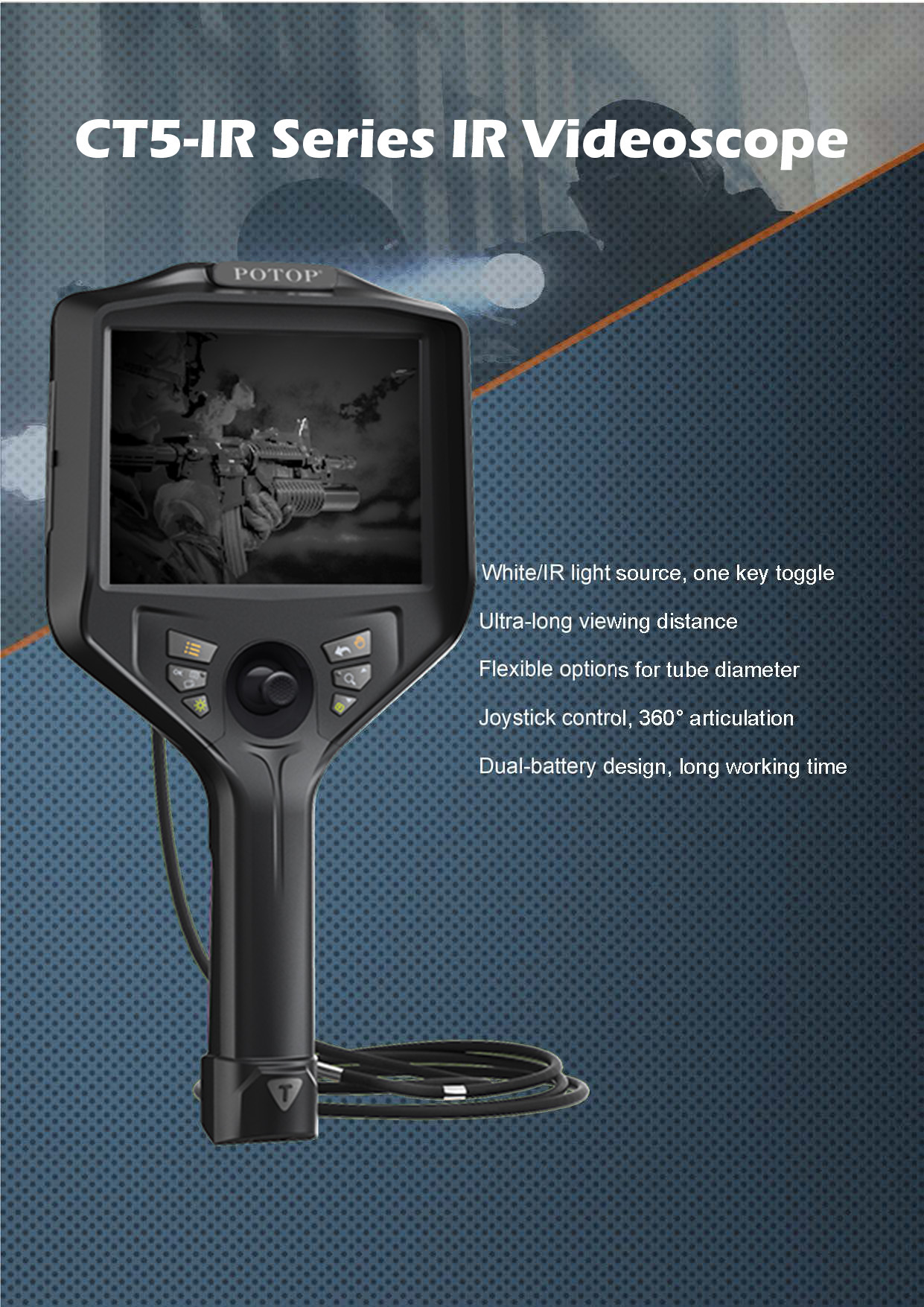

    CT5-IR Series IR Videoscope
    White/IR light source, one key toggle
    Ultra-long viewing distance
    Flexible options for tube diameter
    Joystick control,360° articulation
    Dual-battery design, long working time

    Concentric Circle Scale


    one-button switch for IR/white light
    Output/WiFi
    Ultra long visual distance



    UV Fluorescent Light 365nm (for option)


    UV borescopes Application
    UV borescopes have UV (ultra-violet) LED lights and white LED lights sources for special NDT applications. Usually,
    UV boroscopes are used to inspect internal leaks and surface flaws with fluorescent dye liquid penetrant materials.
    Engineers and technicians in automotive manufacturing, aviation maintenance, industrial manufacturing, energy
    generation and transport will find a UV borescope very useful for special inspection.

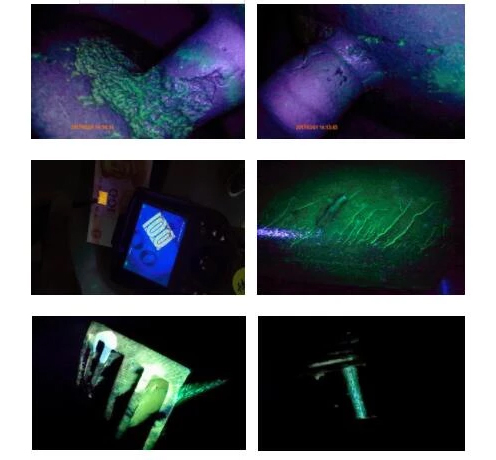

    UV Inspection on Site





    High temperature alarm function




    Package & Standard Accessories







    SD CARD
    CARD READER
    LI-BATTERY
    USE CABLE
    POWER CORD
    CHARGER
    Product Manul

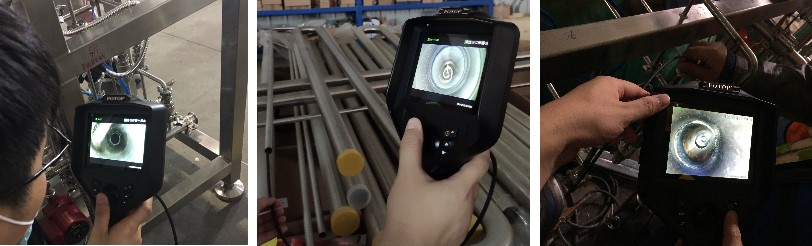

    Application











    CT series videoscopes are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

  • Series CT5-18 CT5-22 CT5-28 CT5-39 CT5-60 CT5-80
    Prob​e Diameter(mm) 1.8mm 2.2mm 2.8mm 3.9mm 6.0mm 8.0mm
    Viewing Direction 0°   front view (90° side camera / dual-view camera for option)
    Camera Pixels   300,000 1,000,000
    D.O.F.   5-50mm 5-50mm 10-100mm
    (3-15mm / 5-30mm for option)
    10-100mm
    (3-25mm / 5-50mm / 20mm-infinity for option)
    F.O.V.   120°
    Image Resolution   640*480 1280*720
    Video Resolution   640*480 1280*720
    Articulation 2-WAY Articulation 360° Joystick-control Articulation
    Light Source   Rear-mounted optic fiber  LED/ Optic Fiber
    Illuminance   20000 Lx 50000 Lx 60000 Lx
      1~9 levels adjustable light
    Probe Material   5 Layers of  Tungsten-braided insert probe. Extreme resistance to impact and wearing.
    Probe Length 1m 1m / 2m 1.5m / 3m / 5m 1.5m~8m 10m
    Bending Angle   190° / 180° 190° / 150°/ 110° 190°(1.5m)~100°(8m) 90°
    Bending Radious (90°)   22.2mm 27mm 35.8mm 41.9mm
    Camera Length   6.9mm 8.4mm 13mm 13.4mm 15.8mm
    Waterproof  Probe / Camera: IP67 ; Display: IP65
    Probe Positioning Damping positioning & articulation lock device
    Protecting Device  42mm buffer protection device between probe and handle
    Display 5.1" color IPS display. All sight viewing angle, sunshade design
    Display Resolution 1280*960
    Zoom In / Out Digital zoom 2X/4X/8X
    Language English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean  / Polish/ Italian
    Software Function Image effect, exposure adjust ( ± 2 EV), image freezing, scale on the screen, aspect ratio adjust, digital zoom,  image rotate, white balance adjust
    White Balance Suppression 5 levels adjustable, automatically adjusts and eliminates speckles to achieve optimal images
    White Balance Auto white balance/manual
    Image Effect  Negative film / black & white / standard
    Image Rotate Function 0° / 90° / 180° / 270°
    Screen Scale Function Concentric circle scale / Cross line-scale
    Structure Handheld, integrated design
    Image / Video Format JPEG / MOV (30FPS)
    Data Port HDMI video output, Micro USB port with water & dustproof device
    Storage Temperature -23℃~63℃
    Working Temperature Display:30℃~60℃, when 0°C below, the display needs preheating.
    Camera: -25℃~80℃, when 0°C below, please reduce probe articulation.
    Working Time ≥8h
    Battery Capacity 3.7V, 3200mAh×2 (Detachable 18650 lithium-ion rechargeable type)
    Power Charge DC5V, 1A
    Videoscope Weight & Size 0.8Kg (Include batteries); Size: 324.3*161.3*91.2mm
    Compatibility Interchangeable monitor and tube with different diameters
    Portable Case ABS airtight shock-proof portable case, size: 46*40*19cm(Standard Series); 71*45*17cm(CT5-80104)
    Carton Size Export outer carton size: 48*21*41cm, GW:5kgs (Standard Series)
    Big
    Export outer carton size: 73*30*47cm, GW:10kgs (CT5-80104)
    Standard Accessory Portable Case, Videoscope, Batteries, Card Reader, 16GB TF card, Battery Charger, Metal Folding Stand, USB Cable, Lens Cleaning Cloth, English User Manual
    Side View Camera Non Available for option
    Dual-view Camera Non Available for option, Cameras D.O.F.:  5-50MM
    Optional Upgrade High-temperature alarm
    Image transmission to Mobile phone, computer with Wi-Fi
      Use a measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
    IR night vision/ IR thermal imaging
    HDMI Cable
    Series CT5-IR  INFRARED LIGHT
    Prob​e Diameter(mm) Φ6.0 (±2)
    Viewing Direction 0°   front view (90° side camera / dual-view camera for option)
    Camera Pixels 450,000
    DOF 50mm-∞
    FOV 80°
    Image Resolution 640*480
    Video Resolution 640*480
    Articulation 360° all-way
    Light Source IR 940nm only or IR 940nm & White LED (4pcs) dual-light
    Illuminance Maximum: 50000Lx, 10 level
    Probe Material 5 Layers of  Tungsten-braided insert probe. Extreme resistance to impact and wearing.
    Probe Length 1m~3m
    Bending Angle Maximum:190°
    Waterproof  Probe / Camera : IP67 ; Display: IP65
    Probe Positioning Damping positioning & articulation lock device
    Protecting Device  42mm buffer protection device between probe and handle
    Display 5.1" color IPS display. All sight viewing angles, sunshade design
    Display Resolution 1280*960
    Zoom In / Out 8X
    Language English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean  / Polish/ Italian
    Software Function Playback, image parameters adjust and rotate
    Image Rotate Function 0° / 90° / 180° / 270°
    Screen Scale Function Concentric circle scale / Cross line-scale
    Structure Hand-held integrated design
    Image / Video Format JPEG / MOV
    Data Port HDMI video output, Micro USB port with water & dustproof device
    Storage Temperature -23℃~63℃
    Working Temperature Display:30℃~60℃, when 0°C below, the display needs preheating.
    Camera: -25℃~80℃, when 0°C below, please reduce probe articulation.
    Working Time ≥4h
    Battery Capacity 3.7V,3200mAh×2 (Detachable 18650 lithium-ion rechargeable type)
    Power Charge DC5V, 1A
    Videoscope Weight & Size 0.8Kg (Include batteries) ; Size: 324.3*161.3*91.2mm
    Compatibility Replaceable monitor size
    Portable Case ABS air-tight shock-proof portable case, size: 46*40*19cm
    Carton Size Export outer carton size: 47*20*42.5cm, GW:4kgs
    Standard Accessory Portable Case, Videoscope, Batteries, Card Reader, 16GB TF card, Battery Charger, Metal Folding Stand, USB Cable, Lens Cleaning Cloth, English User Manual
    Optional Upgrade High-temperature alarm
    Image transmission to Mobile phone, computer by Wi-Fi
    Use a measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
    IR night vision/ IR thermal imaging
    HDMI Cable
    Series CT5-UV  ULTRAVIOLET  LIGHT
    Prob​e Diameter(mm) Φ6.0
    Viewing Direction 0°   front view (90° side camera / dual-view camera for option)
    Camera Pixels 1,000,000
    DOF 10-100mm
    FOV 120°
    Image Resolution 1280×720
    Video Resolution 1280×720
    Articulation 360° joystick-control, articulation
    Light Source Rear-mounted optic fiber cold UV+White source LED
    Illuminance LED: 14000Lx / UV: 365nm
    Intensity for UV Source 1000µW/ c㎡ (1.5m & 2m)
    Probe Material 5 Layers of  Tungsten-braided insert probe. Extreme resistance to impact and wearing.
    Probe Length 1.5m / 2m / 3m(customization)
    Bending Angle 190° (1.5m) / 190° (2m) / 150°(3m)
    Waterproof  Probe/tube: IP67
    Probe Positioning Damping positioning & articulation lock device
    Protecting Device  42mm buffer protection device between probe and handle
    Display 5.1" color IPS display. All sight viewing angles, sunshade design
    Display Resolution 1280*960
    Zoom In / Out 8X
    Language English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean
    Software Function Playback, image parameters adjust and rotate
    Structure Hand-held integrated design
    Image / Video Format JPEG / MOV
    Data Port HDMI video output, Micro USB port with water &dust proof device
    Storage Temperature -23℃~63℃
    Working Temperature Display:30℃~60℃, when 0°C below, the display needs preheating.
    Camera: -25℃~80℃, when 0°C below, please reduce probe articulation.
    Working Time ≥4h
    Battery Capacity 3.7V,3200mAh×2
    Power Charge DC5V, 1A
    Videoscope Weight & Size 0.8Kg (Include batteries) ; Size: 324.3*161.3*91.2mm
    Compatibility Interchangeable monitor and tube with different diameters
    Portable Case ABS air-tight shock-proof portable case, size: 46*40*19cm
    Carton Size Export outer carton size: 47*20*42.5cm, GW:4kgs
    Standard Accessory Portable Case, Videoscope, Batteries, Card Reader, 16GB TF card, Battery Charger, Metal Folding Stand, USB Cable, Lens Cleaning Cloth, English User Manual
    Optional Upgrade High-temperature alarm
    Image transmission to Mobile phone
    Use a measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
    UV Inspection on Site
    HDMI Cable
  •  CT5 Series (Interchangeable Display & Probe)

    Model Display Tip Dia. Length Articulation Camera Resolution LED Light Detachable Probe
    CT5-18012 5.1" Ø1.8mm 1M 2Way 440x440 2000Lx


    Yes.
    Φ2.2mm & Φ2.8mm are
    Interchangeable
    CT5-22012 5.1" Ø2.2mm 1M 2Way 640x480 15000Lx
    CT5-22022 5.1" Ø2.2mm 2M 2Way 640x480 15000Lx
    CT5-28014 5.1" Ø2.8mm 1M 360˚(4Way) 640x480 20000Lx
    CT5-28024 5.1" Ø2.8mm 2M 360˚(4Way) 640x480 20000Lx
    CT5-28034 5.1" Ø2.8mm 3M 360˚(4Way) 640x480 20000Lx
    CT5-39014 5.1" Ø3.9mm 1.5M 360˚(4Way) 1280x720(HD) 20000Lx



    Yes.
    Φ3.9mm & Φ6mm & Φ8mm are interchangabe
    CT5-39024 5.1" Ø3.9mm 2M 360˚(4Way) 1280x720(HD) 20000Lx
    CT5-39034 5.1" Ø3.9mm 3M 360˚(4Way) 1280x720(HD) 20000Lx
    CT5-39054 5.1" Ø3.9mm 5M 360˚(4Way) 1280x720(HD) 20000Lx
    CT5-60014 5.1" Ø6.0mm 1.5M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60024 5.1" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60034 5.1" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60054 5.1" Ø6.0mm 5M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60064 5.1" Ø6.0mm 6M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60074 5.1" Ø6.0mm 7M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60084 5.1" Ø6.0mm 8M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-80104 5.1" Ø8.0mm 10M 360˚(4Way) 1280x720(HD) 60000Lx

     CT5-IR Series

    Model Display Tip Dia. Length Articulation Camera Resolution Light
    CT5-60014IR 5.1" Ø6.0mm 1M 360˚(4Way) 1280x720(HD) IR
    CT5-60024IR 5.1" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) IR
    CT5-60034IR 5.1" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) IR
    CT5-60014IRS 5.1" Ø6.0mm 1M 360˚(4Way) 1280x720(HD) IR & LED Switch
    CT5-60024IRS 5.1" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) IR & LED Switch
    CT5-60034IRS 5.1" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) IR & LED Switch

     CT5-UV Series

    Model Display Tip Dia. Length Articulation Camera Resolution Light
    CT5-60014UV 5.1" Ø6.0mm 1.5M 360˚(4Way) 1280x720(HD) UV & LED Switch
    CT5-60024UV 5.1" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) UV & LED Switch
    CT5-60034UV 5.1" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) UV & LED Switch
  • 2Way / 360° Articulation Probe ( For CT5 )

    Articulation Type: 2Way on Ø2.2mm
    Articulation Type : 360° ( 4Way ) on Ø2.8mm &
     Ø3.9mm
    Tip Diameter : Ø2.2 / Ø2.8mm /  Ø3.9mm
    Articulation Angle :  190° (1m) ~ 150° (3m)
    Resolution : 640 x 480 (
    Ø2.2mm /Ø2.8mm) / 1280 x 720 ( Ø3.9mm)
    Probe Length : 1M / 2M / 3M
    Main Console System: CT5
    Detachable Probe & Display: Yes

    360° Articulation HD Probe ( For CT5 )

    360° articulation provides flexibilities in the narrow space inspection. High-density stainless steel braided tube provides durability, flexibility, and also rusty, water and temperature resistant

    Articulation Type : 360° ( 4Way )
    Tip Diameter :  Ø6.0 /
    Ø8.0mm
    Articulation Angle : 190° (1m) ~100
    ° (8m)
    Resolution : 1280 x 720 ( HD )
    Probe Length : 1.5M ~ 8M(
    Ø6.0mm) / 10M(Ø8.0mm)
    Main Console System : CT5
    Detachable Probe & Display: Yes

    360° Articulation IR Probe ( For CT5 )

    Articulation Type : 360° ( 4Way ) on Ø6.0mm
    Tip Diameter : Ø6.0mm
    Articulation Angle : 190° (1m) ~ 150° (3m)
    Resolution : 1280 x 720
    Probe Length : 1M / 2M / 3M
    Main Console System: CT5
    Detachable Probe & Display: Yes

    360° Articulation UV Probe ( For CT5 )

    Articulation Type : 360° ( 4Way ) on Ø6.0mm
    Tip Diameter : Ø6.0mm
    Articulation Angle : >190°
    Resolution :
    1280 x 720
    Probe Length : 1.5M / 2M
    Main Console System: CT5
    Detachable Probe & Display: Yes

  • The Overview of The Application of Borescopes

    There are all kinds of applications of borescopes which approximately include the inspection of aircraft, motors, electricity, industrial machinery, construction and pipeline/drain/sewer. And we will explain more in the following. First of all, in terms of the inspection of aircraft and airframe, borescopes have a role to play. It is because a regular inspection of turbine blades is extremely important to aircraft. To be more precise, maintaining the reliability of the aircraft gas turbine, repairing the wear of components, and examining the contaminated fluids and leaks are what the borescopes can do for us. Secondly, a borescope can also inspect motors, such as engine combustion chambers including some parts as follows, valves, cylinder heads, piston crowns, liners, and water pump weep holes. What’s more, borescopes can also inspect whether water pumps weep holes for coolant leaks and check fuel lines and tanks. Thirdly, borescopes can do more than that, and that is the inspection and maintenance of electricity. For example, the maintenance of nuclear power, water, wind, fire stations of pipelines/turbines and generators are the other applications of borescopes.



    On top of that, borescopes can also be used in the inspection of industrial machinery to check the mechanical equipment and manufacturing equipment, surplus material inspection, big generators, heat exchanger. To be honest, the application of borescopes is a perpetual topic. Last but not least, borescopes are widely used in the inspection of construction and pipeline/drain / sewer. In terms of the inspection of construction, steel tubes can not only be used to examine corrosion and fouling, wall and another internal diagnosis, steel rust, bridge expansion joint cracking, etc. but also can be used for tunnel lumen, observation of building models. As for the inspection of pipeline/drain/sewer, borescopes can help check the corrosion and diagnose the blocking drains. Peculiarly, cracks, white spots, sand holes, pores, and slag on the surface of pipeline and welding seam can be checked through borescopes. All in all, the application of borescopes is numerous and we will explain more details in the following paragraphs.



    There are many advantages that articulating video borescopes offer.

    Most NDT applications have small, limited entrances that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corners.

    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even a cost-effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection devices like the
    CT-5 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When CT-5 cameras do not have to be repeatedly manipulated with the purpose of complete inspections, NDT technicians can save valuable working time.

    Articulating borescopes has an insertion tube of a videoscope that usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.

    Below is common knowledge of these two types:

      Non Articulation Borescope Articulation Borescope
    Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant)
    Assembly Process Easier More Complicated with multi production procedures
    Advantage Basic Inspection at a lower price Articulation for better viewing angle. Can do more job in the different working environment
    Disadvantage Limited viewing angle for inspection More expensive for new and repair
  • Introduction

    Features



    High Resolution Screen 5.1"

    replaceable large HD screen
    portable small screen





    One Click Photo & Video



    humanized button design
    short press to take photo,long press to take video



    Water Proof Design



    ip65 body waterproof
    Tube waterproof level reaches to IP67



    Dual 18650 Lithium-ion Battery Design (Detachable)

    dual-battery design support for 8H working time one battery also available





    High Image Quliaty Engine Inspeciotn





    Sensitive 360 Degree Joystick





    Super Wide  Angle  of View No Blind Spot





    Super Wide Articulation Angle 190 Degree

    The probe supports 190 degree bending(maximum) Accurate and flexible






     9 Levels Light Intensity Adjustable




     High Quality Camera Lens




     Different Diameter of Probe for option




     Five layers of Tungsten-braided Probe




     Certificate




    Φ6mm 8m   /  Φ8mm 10m  -  Long Probe 360° Articulation Test & Image Test



    Φ3.9mm probe  /  Φ2.8mm probe  -  360° Image Quality Test

    Φ3.9mm /  6mm / Φ8mm dual-cameras (front & side view) probe   -  360° Image Quality Test

    Φ1.8mm probe   -  2 Way Image Quality Test


    Φ6mm Articulation Porbe Image Quality Testing Video From SD


    Articulation Radius



    Size




     Shock Proof ABS Portable Case



     Image Processing Function



    White Balance Adjust



    Negative Film Mode



    MAX 8X MAGNIFICATION





    Measuring Scale on Display

    (Best accuracy at 16mm distance.)

    Crosshair Scale



    Concentric Circle Scal







    Detachable Display and Probe
    5.1" display is compatible with different probes.



    Standard Accessories - Metal Folding Stand




    Safety Operating Instruction





     Infrared IR940nm Light (For Option)

    CT5-IR Series IR Videoscope
    White/IR light source, one key toggle
    Ultra-long viewing distance
    Flexible options for tube diameter
    Joystick control,360° articulation
    Dual-battery design, long working time

    Concentric Circle Scale


    one-button switch for IR/white light
    Output/WiFi
    Ultra long visual distance



    UV Fluorescent Light 365nm (for option)


    UV borescopes Application
    UV borescopes have UV (ultra-violet) LED lights and white LED lights sources for special NDT applications. Usually,
    UV boroscopes are used to inspect internal leaks and surface flaws with fluorescent dye liquid penetrant materials.
    Engineers and technicians in automotive manufacturing, aviation maintenance, industrial manufacturing, energy
    generation and transport will find a UV borescope very useful for special inspection.

    UV Inspection on Site





    High temperature alarm function




    Package & Standard Accessories







    SD CARD
    CARD READER
    LI-BATTERY
    USE CABLE
    POWER CORD
    CHARGER
    Product Manul





    Application











    CT series videoscopes are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

  • Specification
    Series CT5-18 CT5-22 CT5-28 CT5-39 CT5-60 CT5-80
    Prob​e Diameter(mm) 1.8mm 2.2mm 2.8mm 3.9mm 6.0mm 8.0mm
    Viewing Direction 0°   front view (90° side camera / dual-view camera for option)
    Camera Pixels   300,000 1,000,000
    D.O.F.   5-50mm 5-50mm 10-100mm
    (3-15mm / 5-30mm for option)
    10-100mm
    (3-25mm / 5-50mm / 20mm-infinity for option)
    F.O.V.   120°
    Image Resolution   640*480 1280*720
    Video Resolution   640*480 1280*720
    Articulation 2-WAY Articulation 360° Joystick-control Articulation
    Light Source   Rear-mounted optic fiber  LED/ Optic Fiber
    Illuminance   20000 Lx 50000 Lx 60000 Lx
      1~9 levels adjustable light
    Probe Material   5 Layers of  Tungsten-braided insert probe. Extreme resistance to impact and wearing.
    Probe Length 1m 1m / 2m 1.5m / 3m / 5m 1.5m~8m 10m
    Bending Angle   190° / 180° 190° / 150°/ 110° 190°(1.5m)~100°(8m) 90°
    Bending Radious (90°)   22.2mm 27mm 35.8mm 41.9mm
    Camera Length   6.9mm 8.4mm 13mm 13.4mm 15.8mm
    Waterproof  Probe / Camera: IP67 ; Display: IP65
    Probe Positioning Damping positioning & articulation lock device
    Protecting Device  42mm buffer protection device between probe and handle
    Display 5.1" color IPS display. All sight viewing angle, sunshade design
    Display Resolution 1280*960
    Zoom In / Out Digital zoom 2X/4X/8X
    Language English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean  / Polish/ Italian
    Software Function Image effect, exposure adjust ( ± 2 EV), image freezing, scale on the screen, aspect ratio adjust, digital zoom,  image rotate, white balance adjust
    White Balance Suppression 5 levels adjustable, automatically adjusts and eliminates speckles to achieve optimal images
    White Balance Auto white balance/manual
    Image Effect  Negative film / black & white / standard
    Image Rotate Function 0° / 90° / 180° / 270°
    Screen Scale Function Concentric circle scale / Cross line-scale
    Structure Handheld, integrated design
    Image / Video Format JPEG / MOV (30FPS)
    Data Port HDMI video output, Micro USB port with water & dustproof device
    Storage Temperature -23℃~63℃
    Working Temperature Display:30℃~60℃, when 0°C below, the display needs preheating.
    Camera: -25℃~80℃, when 0°C below, please reduce probe articulation.
    Working Time ≥8h
    Battery Capacity 3.7V, 3200mAh×2 (Detachable 18650 lithium-ion rechargeable type)
    Power Charge DC5V, 1A
    Videoscope Weight & Size 0.8Kg (Include batteries); Size: 324.3*161.3*91.2mm
    Compatibility Interchangeable monitor and tube with different diameters
    Portable Case ABS airtight shock-proof portable case, size: 46*40*19cm(Standard Series); 71*45*17cm(CT5-80104)
    Carton Size Export outer carton size: 48*21*41cm, GW:5kgs (Standard Series)
    Big
    Export outer carton size: 73*30*47cm, GW:10kgs (CT5-80104)
    Standard Accessory Portable Case, Videoscope, Batteries, Card Reader, 16GB TF card, Battery Charger, Metal Folding Stand, USB Cable, Lens Cleaning Cloth, English User Manual
    Side View Camera Non Available for option
    Dual-view Camera Non Available for option, Cameras D.O.F.:  5-50MM
    Optional Upgrade High-temperature alarm
    Image transmission to Mobile phone, computer with Wi-Fi
      Use a measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
    IR night vision/ IR thermal imaging
    HDMI Cable
    Series CT5-IR  INFRARED LIGHT
    Prob​e Diameter(mm) Φ6.0 (±2)
    Viewing Direction 0°   front view (90° side camera / dual-view camera for option)
    Camera Pixels 450,000
    DOF 50mm-∞
    FOV 80°
    Image Resolution 640*480
    Video Resolution 640*480
    Articulation 360° all-way
    Light Source IR 940nm only or IR 940nm & White LED (4pcs) dual-light
    Illuminance Maximum: 50000Lx, 10 level
    Probe Material 5 Layers of  Tungsten-braided insert probe. Extreme resistance to impact and wearing.
    Probe Length 1m~3m
    Bending Angle Maximum:190°
    Waterproof  Probe / Camera : IP67 ; Display: IP65
    Probe Positioning Damping positioning & articulation lock device
    Protecting Device  42mm buffer protection device between probe and handle
    Display 5.1" color IPS display. All sight viewing angles, sunshade design
    Display Resolution 1280*960
    Zoom In / Out 8X
    Language English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean  / Polish/ Italian
    Software Function Playback, image parameters adjust and rotate
    Image Rotate Function 0° / 90° / 180° / 270°
    Screen Scale Function Concentric circle scale / Cross line-scale
    Structure Hand-held integrated design
    Image / Video Format JPEG / MOV
    Data Port HDMI video output, Micro USB port with water & dustproof device
    Storage Temperature -23℃~63℃
    Working Temperature Display:30℃~60℃, when 0°C below, the display needs preheating.
    Camera: -25℃~80℃, when 0°C below, please reduce probe articulation.
    Working Time ≥4h
    Battery Capacity 3.7V,3200mAh×2 (Detachable 18650 lithium-ion rechargeable type)
    Power Charge DC5V, 1A
    Videoscope Weight & Size 0.8Kg (Include batteries) ; Size: 324.3*161.3*91.2mm
    Compatibility Replaceable monitor size
    Portable Case ABS air-tight shock-proof portable case, size: 46*40*19cm
    Carton Size Export outer carton size: 47*20*42.5cm, GW:4kgs
    Standard Accessory Portable Case, Videoscope, Batteries, Card Reader, 16GB TF card, Battery Charger, Metal Folding Stand, USB Cable, Lens Cleaning Cloth, English User Manual
    Optional Upgrade High-temperature alarm
    Image transmission to Mobile phone, computer by Wi-Fi
    Use a measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
    IR night vision/ IR thermal imaging
    HDMI Cable
    Series CT5-UV  ULTRAVIOLET  LIGHT
    Prob​e Diameter(mm) Φ6.0
    Viewing Direction 0°   front view (90° side camera / dual-view camera for option)
    Camera Pixels 1,000,000
    DOF 10-100mm
    FOV 120°
    Image Resolution 1280×720
    Video Resolution 1280×720
    Articulation 360° joystick-control, articulation
    Light Source Rear-mounted optic fiber cold UV+White source LED
    Illuminance LED: 14000Lx / UV: 365nm
    Intensity for UV Source 1000µW/ c㎡ (1.5m & 2m)
    Probe Material 5 Layers of  Tungsten-braided insert probe. Extreme resistance to impact and wearing.
    Probe Length 1.5m / 2m / 3m(customization)
    Bending Angle 190° (1.5m) / 190° (2m) / 150°(3m)
    Waterproof  Probe/tube: IP67
    Probe Positioning Damping positioning & articulation lock device
    Protecting Device  42mm buffer protection device between probe and handle
    Display 5.1" color IPS display. All sight viewing angles, sunshade design
    Display Resolution 1280*960
    Zoom In / Out 8X
    Language English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean
    Software Function Playback, image parameters adjust and rotate
    Structure Hand-held integrated design
    Image / Video Format JPEG / MOV
    Data Port HDMI video output, Micro USB port with water &dust proof device
    Storage Temperature -23℃~63℃
    Working Temperature Display:30℃~60℃, when 0°C below, the display needs preheating.
    Camera: -25℃~80℃, when 0°C below, please reduce probe articulation.
    Working Time ≥4h
    Battery Capacity 3.7V,3200mAh×2
    Power Charge DC5V, 1A
    Videoscope Weight & Size 0.8Kg (Include batteries) ; Size: 324.3*161.3*91.2mm
    Compatibility Interchangeable monitor and tube with different diameters
    Portable Case ABS air-tight shock-proof portable case, size: 46*40*19cm
    Carton Size Export outer carton size: 47*20*42.5cm, GW:4kgs
    Standard Accessory Portable Case, Videoscope, Batteries, Card Reader, 16GB TF card, Battery Charger, Metal Folding Stand, USB Cable, Lens Cleaning Cloth, English User Manual
    Optional Upgrade High-temperature alarm
    Image transmission to Mobile phone
    Use a measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
    UV Inspection on Site
    HDMI Cable
  • Model

     CT5 Series (Interchangeable Display & Probe)

    Model Display Tip Dia. Length Articulation Camera Resolution LED Light Detachable Probe
    CT5-18012 5.1" Ø1.8mm 1M 2Way 440x440 2000Lx


    Yes.
    Φ2.2mm & Φ2.8mm are
    Interchangeable
    CT5-22012 5.1" Ø2.2mm 1M 2Way 640x480 15000Lx
    CT5-22022 5.1" Ø2.2mm 2M 2Way 640x480 15000Lx
    CT5-28014 5.1" Ø2.8mm 1M 360˚(4Way) 640x480 20000Lx
    CT5-28024 5.1" Ø2.8mm 2M 360˚(4Way) 640x480 20000Lx
    CT5-28034 5.1" Ø2.8mm 3M 360˚(4Way) 640x480 20000Lx
    CT5-39014 5.1" Ø3.9mm 1.5M 360˚(4Way) 1280x720(HD) 20000Lx



    Yes.
    Φ3.9mm & Φ6mm & Φ8mm are interchangabe
    CT5-39024 5.1" Ø3.9mm 2M 360˚(4Way) 1280x720(HD) 20000Lx
    CT5-39034 5.1" Ø3.9mm 3M 360˚(4Way) 1280x720(HD) 20000Lx
    CT5-39054 5.1" Ø3.9mm 5M 360˚(4Way) 1280x720(HD) 20000Lx
    CT5-60014 5.1" Ø6.0mm 1.5M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60024 5.1" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60034 5.1" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60054 5.1" Ø6.0mm 5M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60064 5.1" Ø6.0mm 6M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60074 5.1" Ø6.0mm 7M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-60084 5.1" Ø6.0mm 8M 360˚(4Way) 1280x720(HD) 50000Lx
    CT5-80104 5.1" Ø8.0mm 10M 360˚(4Way) 1280x720(HD) 60000Lx

     CT5-IR Series

    Model Display Tip Dia. Length Articulation Camera Resolution Light
    CT5-60014IR 5.1" Ø6.0mm 1M 360˚(4Way) 1280x720(HD) IR
    CT5-60024IR 5.1" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) IR
    CT5-60034IR 5.1" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) IR
    CT5-60014IRS 5.1" Ø6.0mm 1M 360˚(4Way) 1280x720(HD) IR & LED Switch
    CT5-60024IRS 5.1" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) IR & LED Switch
    CT5-60034IRS 5.1" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) IR & LED Switch

     CT5-UV Series

    Model Display Tip Dia. Length Articulation Camera Resolution Light
    CT5-60014UV 5.1" Ø6.0mm 1.5M 360˚(4Way) 1280x720(HD) UV & LED Switch
    CT5-60024UV 5.1" Ø6.0mm 2M 360˚(4Way) 1280x720(HD) UV & LED Switch
    CT5-60034UV 5.1" Ø6.0mm 3M 360˚(4Way) 1280x720(HD) UV & LED Switch
  • Inspection Probe

    2Way / 360° Articulation Probe ( For CT5 )

    Articulation Type: 2Way on Ø2.2mm
    Articulation Type : 360° ( 4Way ) on Ø2.8mm &
     Ø3.9mm
    Tip Diameter : Ø2.2 / Ø2.8mm /  Ø3.9mm
    Articulation Angle :  190° (1m) ~ 150° (3m)
    Resolution : 640 x 480 (
    Ø2.2mm /Ø2.8mm) / 1280 x 720 ( Ø3.9mm)
    Probe Length : 1M / 2M / 3M
    Main Console System: CT5
    Detachable Probe & Display: Yes

    360° Articulation HD Probe ( For CT5 )

    360° articulation provides flexibilities in the narrow space inspection. High-density stainless steel braided tube provides durability, flexibility, and also rusty, water and temperature resistant

    Articulation Type : 360° ( 4Way )
    Tip Diameter :  Ø6.0 /
    Ø8.0mm
    Articulation Angle : 190° (1m) ~100
    ° (8m)
    Resolution : 1280 x 720 ( HD )
    Probe Length : 1.5M ~ 8M(
    Ø6.0mm) / 10M(Ø8.0mm)
    Main Console System : CT5
    Detachable Probe & Display: Yes

    360° Articulation IR Probe ( For CT5 )

    Articulation Type : 360° ( 4Way ) on Ø6.0mm
    Tip Diameter : Ø6.0mm
    Articulation Angle : 190° (1m) ~ 150° (3m)
    Resolution : 1280 x 720
    Probe Length : 1M / 2M / 3M
    Main Console System: CT5
    Detachable Probe & Display: Yes

    360° Articulation UV Probe ( For CT5 )

    Articulation Type : 360° ( 4Way ) on Ø6.0mm
    Tip Diameter : Ø6.0mm
    Articulation Angle : >190°
    Resolution :
    1280 x 720
    Probe Length : 1.5M / 2M
    Main Console System: CT5
    Detachable Probe & Display: Yes

  • Q&A

    The Overview of The Application of Borescopes

    There are all kinds of applications of borescopes which approximately include the inspection of aircraft, motors, electricity, industrial machinery, construction and pipeline/drain/sewer. And we will explain more in the following. First of all, in terms of the inspection of aircraft and airframe, borescopes have a role to play. It is because a regular inspection of turbine blades is extremely important to aircraft. To be more precise, maintaining the reliability of the aircraft gas turbine, repairing the wear of components, and examining the contaminated fluids and leaks are what the borescopes can do for us. Secondly, a borescope can also inspect motors, such as engine combustion chambers including some parts as follows, valves, cylinder heads, piston crowns, liners, and water pump weep holes. What’s more, borescopes can also inspect whether water pumps weep holes for coolant leaks and check fuel lines and tanks. Thirdly, borescopes can do more than that, and that is the inspection and maintenance of electricity. For example, the maintenance of nuclear power, water, wind, fire stations of pipelines/turbines and generators are the other applications of borescopes.



    On top of that, borescopes can also be used in the inspection of industrial machinery to check the mechanical equipment and manufacturing equipment, surplus material inspection, big generators, heat exchanger. To be honest, the application of borescopes is a perpetual topic. Last but not least, borescopes are widely used in the inspection of construction and pipeline/drain / sewer. In terms of the inspection of construction, steel tubes can not only be used to examine corrosion and fouling, wall and another internal diagnosis, steel rust, bridge expansion joint cracking, etc. but also can be used for tunnel lumen, observation of building models. As for the inspection of pipeline/drain/sewer, borescopes can help check the corrosion and diagnose the blocking drains. Peculiarly, cracks, white spots, sand holes, pores, and slag on the surface of pipeline and welding seam can be checked through borescopes. All in all, the application of borescopes is numerous and we will explain more details in the following paragraphs.



    There are many advantages that articulating video borescopes offer.

    Most NDT applications have small, limited entrances that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corners.

    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even a cost-effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection devices like the
    CT-5 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When CT-5 cameras do not have to be repeatedly manipulated with the purpose of complete inspections, NDT technicians can save valuable working time.

    Articulating borescopes has an insertion tube of a videoscope that usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.

    Below is common knowledge of these two types:

      Non Articulation Borescope Articulation Borescope
    Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant)
    Assembly Process Easier More Complicated with multi production procedures
    Advantage Basic Inspection at a lower price Articulation for better viewing angle. Can do more job in the different working environment
    Disadvantage Limited viewing angle for inspection More expensive for new and repair
Related products
  • CK Series 5" HD Video Borescope Tungsten Probe 360°
    CK Series 5" HD Video Borescope Tungsten Probe 360°
  • JK Series 7" Professional Video Borescope Camera 360°
    JK Series 7" Professional Video Borescope Camera 360°
  • PH7 Series 7" Video Borescope Tungsten Probe 360°
    PH7 Series 7" Video Borescope Tungsten Probe 360°
Back to the top

Contact Us

Mail toome-top@ome-top.com

  OME-TOP SYSTEMS CO., LTD

Tel : +886-2-22880699 (Rep.)
Fax : +886-2-22889191
Y. C. HUANG whatsapp : +886-958911847
No.176-1, Zhongshan 2nd Rd., Luzhou Dist, New Taipei City 247, Taiwan.
Design by MIRACLEWeb Design
256 bit SSL Encryption
Recommend using Chrome, Firefox, Safari latest version of the browser.
