CK5 Series 5" HD Video Borescope Tungsten Probe 360°
1 / 3
  • CK5 Series 5" HD Video Borescope Tungsten Probe 360°
  • CK5 Series 5" HD Video Borescope Tungsten Probe 360°
  • CK5 Series 5" HD Video Borescope Tungsten Probe 360°
CK5 Series 5" HD Video Borescope Tungsten Probe 360°
Description:
- High-End Borescope Competitive with GE & Olympus
-
High C/P Value. Excellent value for money.
- 5" HD IPS LCD Monitor
- Wear-resistant Tungsten Braided Probe
- 360
° full swing articulation probe. Max 180° on each side.
- Camera Pixels 1,000,000
- Snapshot & Video Recording
- Super Bright 50000 Lux LED brightness adjustment
- Detachable Probe & Display - Wifi to android phone (for option)
-
Wifi to android phone
Download file
  • Introduction
  • Specification
  • Model
  • Q&A
  • Video Borescope Key Features

    90°/120°/140° Broad vision Different Diameter of Probe for option



    Different Diameter of Probe for option













    Rich Options
    2MM-6MM RICH PIPELINE CONFIGURATION
    LENS COVER
    STRAIGHT SIDE VIEW LENS



    1.8mm Forward View
    2.4mm Forward View
    2.8mm Forward View
    3.9 Forward View or Side View
    6.0mm Forward View
    6.0 Side View
    6.0mm Forward&Side Dual View

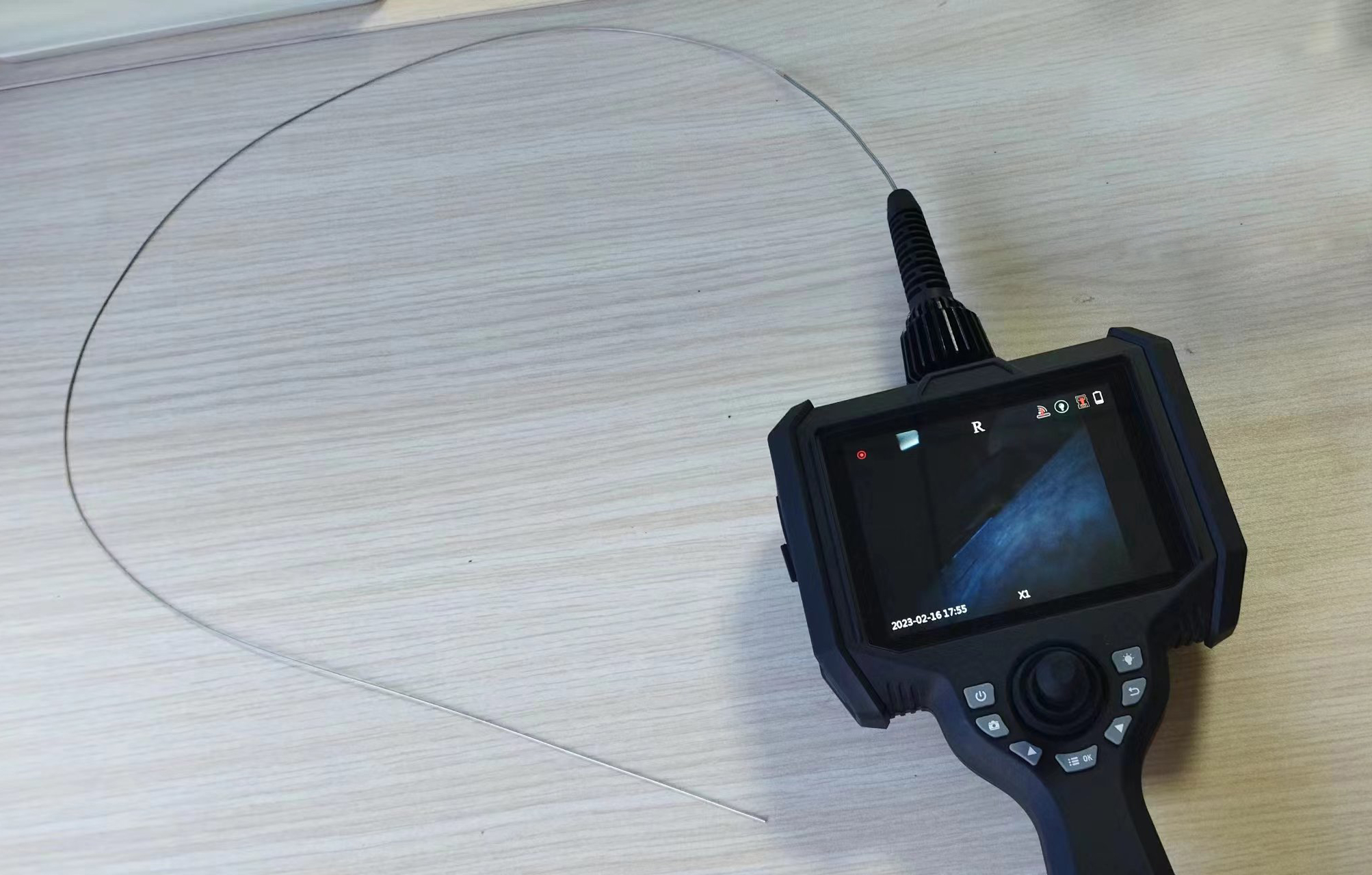

    Super Thin Probe Φ0.95mm is Now Available







    1 Mega Pixels camera Rear LED illumination 360° Articulation



    High Resolution Screen 5"
    Optional Dual cameras
    WIFI To Smartphone (for Android)

    1024*768, 5.0”HD LCD, Dual cameras





    Five layers of Tungsten-braided Probe
    High density braid outer layer, Flexible polyurethane inner layer, EPDM erosion resistant tubes,Compressive steel ring,Guide steel wire










    IP67 Water Proof Design



    Measuring Scale on Display



    High Image Quality & Features
    High image Quality & Features,HD 1,000,000 PIXEL,High Brightness LED,Long Depth of Field,Highly True Colors,Overexposure Restrain

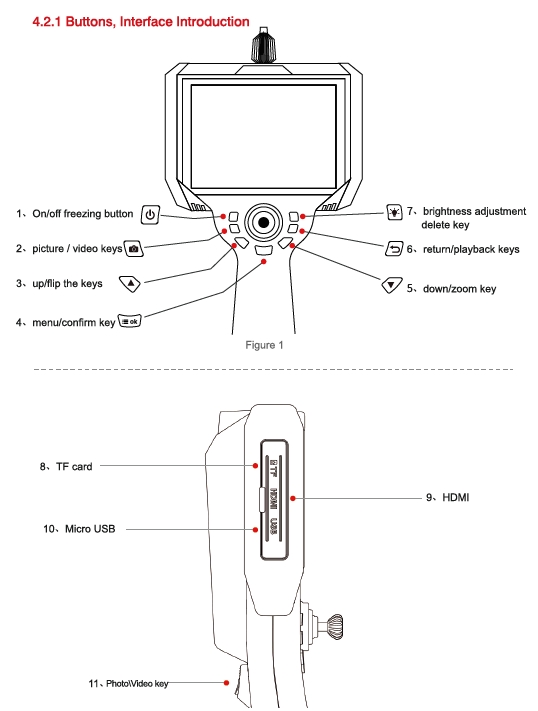

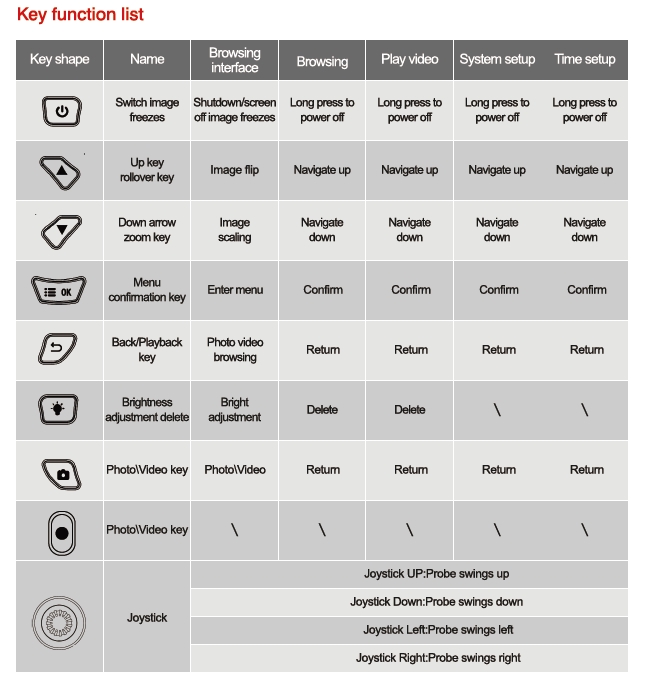

    Key Description
    on/off screen freeze,Photovideo,Upflip,Brightness adjustmentdelete,Returnplayback,Downzoom,Menuconfirm

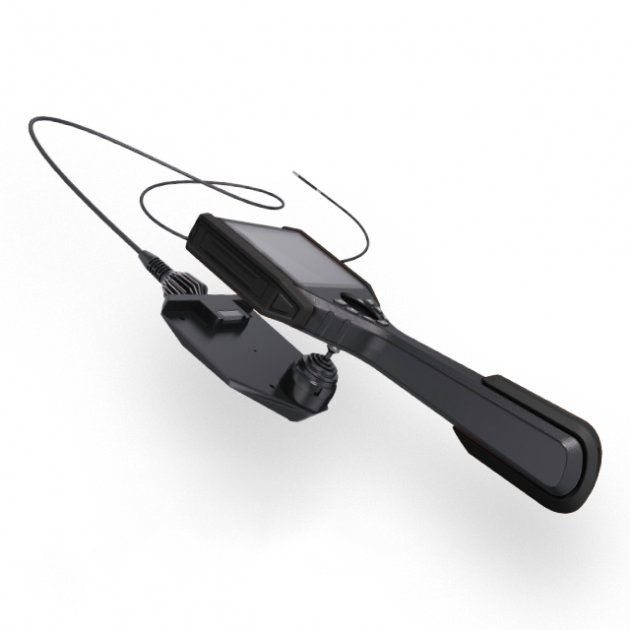

    Handy Detachable Probe,Display, and Battery



    CK5 vs CK6 Display Comparison
    Model CK5 CK6
    Display 5" HD Screen 6" Full HD Touch Screen
    Pixel 1280*720 1920*1080
    Sunshade Display No Yes
     Dual View Compare No Yes
    Keyboard on Display No Yes
    Image Effect Adjustment No Yes
    Internal Memory No ; Support 128GB TF card Yes 8GB ; Support 128GB TF card
    USB Port Micro USB Type-C
    Battery  Fix Support 1pc to 4pcs 18650 type battery
    Working Time ≥ 4 Hours ≥ 8 Hours
    Probe Same Probes,  Interchangeable

















    Scenario application,industrial testing,Aerospace,Pipe welding,Power detection,Rail transit,


    In-pipe welding inspection










    CK-IR series ULTRA FAR HD INFRARED RECORD ENDOSCOPE



    CK-IR Series Different Diameter of Probe for option


    3.9mm & 6mm Front View -  InfraRed


    3.9mm & 6mm Front View -  InfraRed & White LED  -  Dual-light Switch




    6mm Dual view - InfraRed & White LED  - Dual-light Switch


    * Above Red Light Graphic is Actually Invisible Infrared Light.

    CK-IR Series Borescope Demostration



    CK-UV series  UV 365nm Light

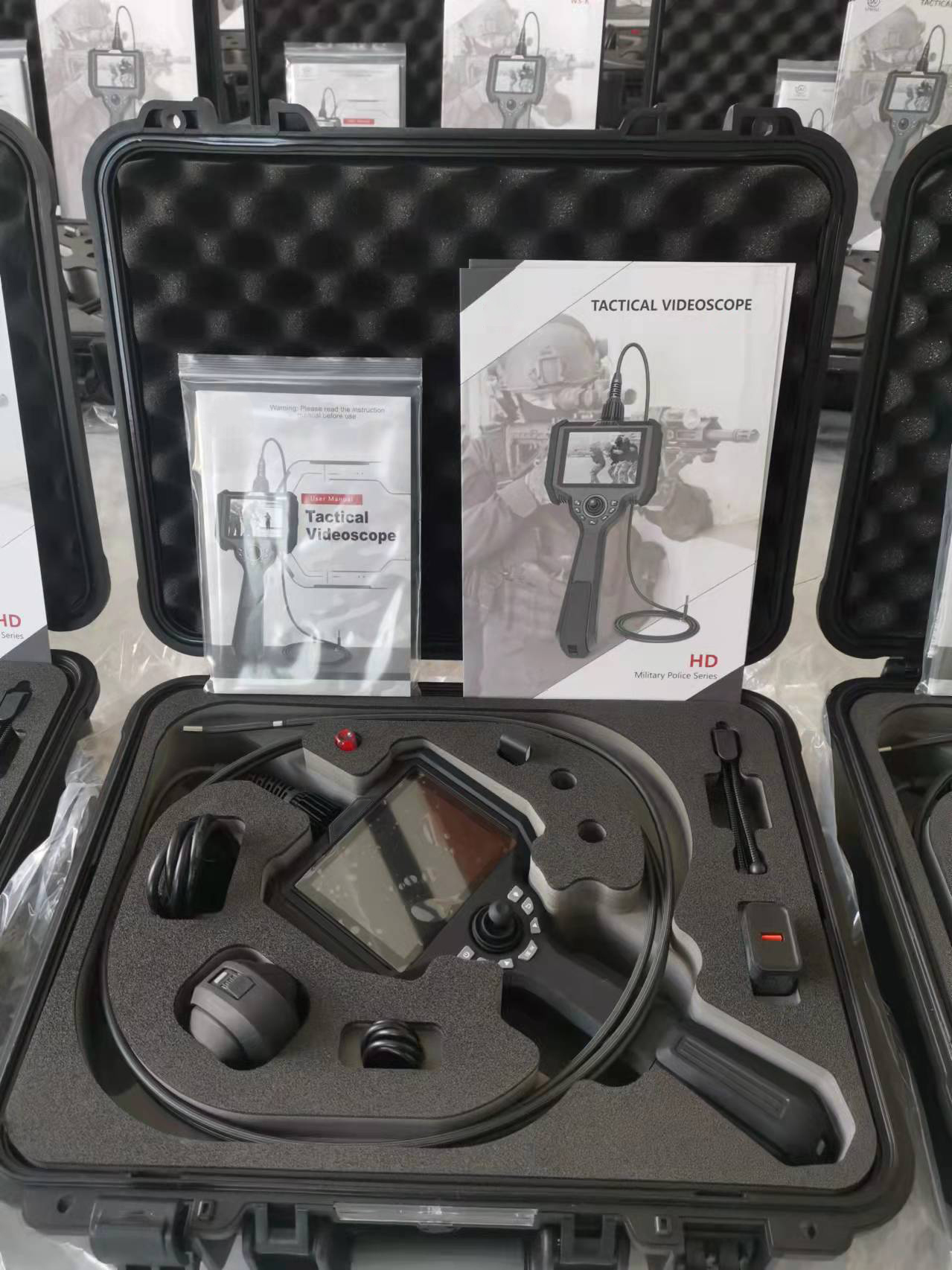

    Standard accessories : tripod,Rugged tool box,USB Cable,Charger,TF card,Card reader,Battery(for optional)

    Option accessories



    Stretchable Roller Skid 34mm~135mm for 5.5mm & 6mm probe.


    Stretchable Roller Skid 26mm~75mm for 3.9mm probe.



    The 25mm centralizer ball is used to center the lens and better assist in corner turning.

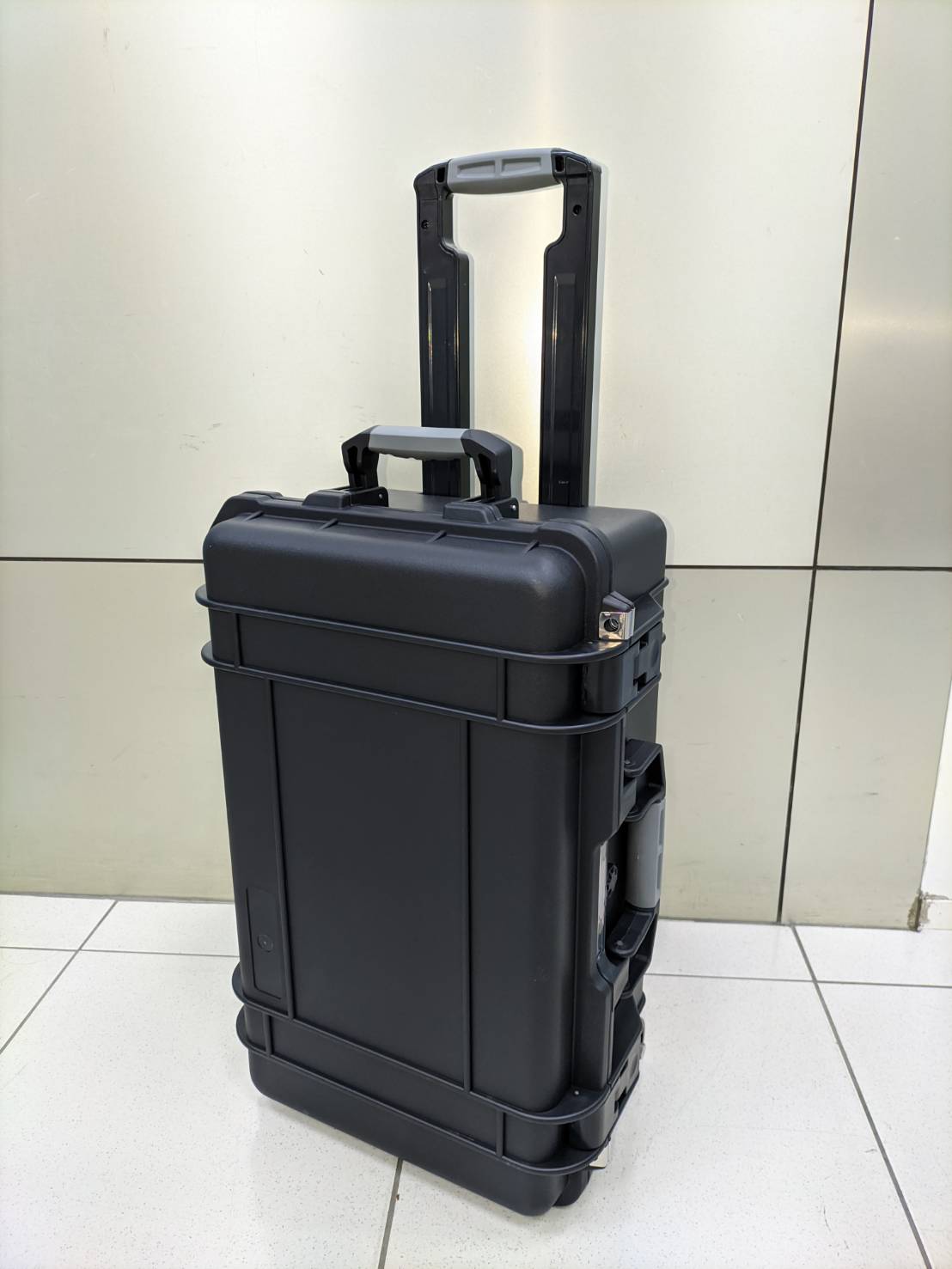

    Shock Proof ABS Portable Case - Black Color Console for option.

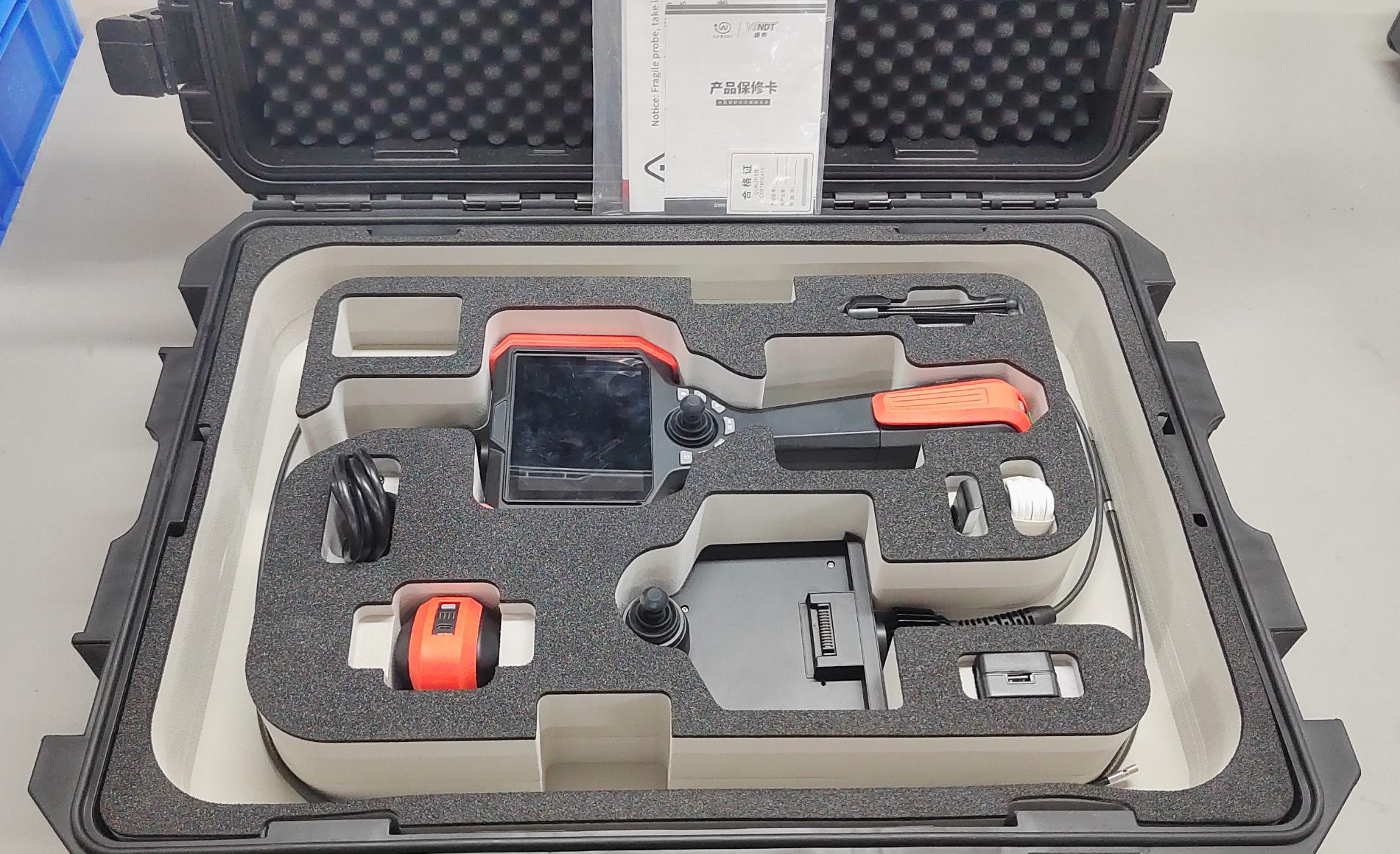

    1 Display+2 Probes



    CK series videoscopes are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

    Explore the CK5 Series 5-inch HD Video Borescope, a multifunctional and high-performance professional inspection tool. Equipped with tungsten probes ranging from 2MM-6MM in diameter, including an ultra-thin Φ0.95mm option, it adapts to various narrow spaces. A 1 million pixel camera with 360° adjustment capability, combined with a 1024*768 high-resolution 5.0” HD LCD display, ensures clear and detailed images.

    The robust five-layer tungsten braided probe and IP67 waterproof design guarantee durability and adaptability. Easy to operate, it features one-touch freeze, photo, and video functions, and supports detachable probes, displays, and batteries, enhancing flexibility and portability. The CK5 is suitable for a wide range of fields, including automotive manufacturing and aerospace, making it an ideal choice for improving inspection efficiency and accuracy. Upgrade now and embark on a new chapter of professional inspection!

  • CK5 Series Technical Specifications – Video Borescopes Overview


    Series CK5-10 CK5-12 CK5-15 CK5-18 CK5-20 CK5-24 CK5-28 CK5-39 CK5-60
    Prob​e Diameter 0.95mm 1.2mm 1.5mm 1.8mm 2.0mm 2.4mm 2.8mm 3.9mm 6.0mm
    Viewing Direction 0°  Front View
    Camera Pixels 160,000 1,000,000
    D.O.F. 3-70mm 5-100mm 12-200mm
    (​Long Focus :
    50mm-infinity for option)

    (Short focus:
    3-30mm for option)
    F.O.V. 120°
    Image Resolution 640*480 / 960*720 / 1280*720
    Video Resolution 640*480 / 960*720 / 1280*720
    Articulation Non 2-WAY Articulation 360° Joystick-control Articulation
    Light Source

    Rear-mounted LED + Optic fiber


    Front LED
    Front Camera / Side Cameera : Front LED
    Dual View: Rear-mounted LED + Optic fiber

    (IR for option)
    (UV for option)

    Front LED
    (IR for option)
    (UV for option)
    Front LED Illuminance       2500 Lx 4000 Lx 6500 Lx 14000 Lx 17000 Lx
    Rear-mounted LED Illuminance 7500 Lx 7500 Lx 15000 Lx 15000 Lx 17500 Lx 55000 Lx 100000 Lx
    adjustable light 1~8 levels
    Probe Material Stainless steel 5 Layers of  Tungsten-braided insert probe. Extreme resistance to impact and wearing.
    Probe Length 0.5m / 1m 0.5m / 1m 0.5m / 1m / 1.5m 1m / 2m / 3m 1m/2m/3m
    4m/5m
    /6m
    1m ~ 20m
    Bending Angle Non 130° / 100°/ 70° 150° / 120°/ 100° 130° / 100°/ 70° 160° / 130°/ 100° 170° / 130°/ 110° 170°~80° 170° ~80°
    Waterproof  Non Host: IP54      Probe / Camera: IP67
    Display 5" color IPS display. All sight viewing angle
    Display Resolution 1024*768
    Zoom In Digital zoom 5X
    Language 1. 简体中文 (Simplified Chinese) 2. 繁體中文 (Traditional Chinese) 3. English (English) 4. Deutsch (German) 5. Français (French) 6. Español (Spanish)
    7. Italiano (Italian)8. Русский язык (Russian) 9. Polska (Polish) 10. 日本語 (Japanese) 11. Українська (Ukrainian) 12. Korean (Korean) 13. Dutch (Dutch)
    14. Hungarian (Hungarian) 15. Türkçe (Turkish)
    Software Function Freezing, zooming, photographing, flipping, video playback and analog ruler functions
    WIFI WIFI To Smartphone (for Android)
    White Balance Auto white balance/manual
    Structure Handheld, integrated design
    Image / Video Format JPG / MP4
    Data Port HDMI video output
    Storage Temperature -20℃~60℃
    Working Temperature -10℃~80℃, low temperature without preheating
    Working Time ≥4h for Option
    Battery Capacity 5V, 3400mAh
    Power Charge DC5V, 1A
    Videoscope Weight & Size 1Kg, Size: 375*175*78mm
    Compatibility Interchangeable monitor and tube with different diameters
    Portable Case ABS airtight shock-proof portable case, size: 46*40*19cm
    Carton Size Export outer carton size: 49*41*20cm, GW : 5Kgs (Standard Series < 8m)
    Export outer carton size: 58×37×27cm, GW : 6Kgs (10m)
    Export outer carton size: 68×35×51cm, GW : 12Kgs (15m/20m)
    Export outer carton size: 68×49×24.5cm, GW : 10Kgs (1 Display+2 Probes)
    Standard Accessory tripod,Rugged tool box,USB Cable,Charger,TF card(32G),Card reader,Battery(for optional)
    Side View Camera Non  focus 7-150mm Available for option
    (Light: Rear-mounted
    LED+Optic fiber
     )
    Dual-view Camera Non focus 7-150mm
    (focus 3-30mm for option)
    Available for option
    (Light: Rear-mounted LED+Optic fiber
    )
    Option IR 940nm Light / IR 940nm & White LED dual-light.
    UV 365nm Light
    WIFI To Smartphone (for Android)
    Stretchable Roller Skid 34mm~135mm for 8mm & 6mm probe
    Stretchable Roller Skid 36mm~75mm for 3.9mm probe
    25mm centralizer ball
    Non articulation probes are available
    High Temperature Alarm
    Probe Frontend Voice Recording
  • Complete Specifications of CK5 Industrial Video Borescopes

    CK5 Series (Interchangeable Display & Probe)

    Model Display Tip Dia. Length Articulation Camera Res. Bend
    Angle
    Fromt LED
    (Lx)
    Back LED
    (Lx)
    CK5-1000 5" Ø0.95mm 0.5M - 160000 -   11000Lx
    CK5-1001 5" Ø0.95mm 1M - 160000 -   7500Lx
    CK5-1200 5" Ø1.2mm 0.5M - 160000 - 1500Lx 11000Lx
    CK5-1201 5" Ø1.2mm 1M - 160000 - 1500Lx 7500Lx
    CK5-15002 5" Ø1.5mm 0.5M 2Way 160000 130° 2500Lx
    CK5-15012 5" Ø1.5mm 1M 2Way 160000 100° 2500Lx
    CK5-15022 5" Ø1.5mm 1.5M 2Way 160000 70° 2500Lx
    CK5-18012 5" Ø1.8mm 1M 2Way 160000 170° 2500Lx 15000Lx
    CK5-18022 5" Ø1.8mm 2M 2Way 160000 140° 2500Lx 11500Lx
    CK5-18032 5" Ø1.8mm 3M 2Way 160000 110° 2500Lx
    CK5-20014 5" Ø2.0mm 1M 360˚(4Way) 160000 170° 4000Lx 15000Lx
    CK5-20024 5" Ø2.0mm 2M 360˚(4Way) 160000 140° 4000Lx 11500Lx
    CK5-20034 5" Ø2.0mm 3M 360˚(4Way) 160000 110° 4000Lx
    CK5-24014 5" Ø2.4mm 1M 360˚(4Way) 160000 130° 4000Lx 15000Lx
    CK5-24024 5" Ø2.4mm 2M 360˚(4Way) 160000 100° 4000Lx 11500Lx
    CK5-24034 5" Ø2.4mm 3M 360˚(4Way) 160000 70° 4000Lx
    CK5-28014 5" Ø2.8mm 1M 360˚(4Way) 160000 170° 6500Lx 17500Lx
    CK5-28024 5" Ø2.8mm 2M 360˚(4Way) 160000 140° 6500Lx 15000Lx
    CK5-28034 5" Ø2.8mm 3M 360˚(4Way) 160000 110° 6500Lx 10000Lx
    CK5-39014 5" Ø3.9mm 1M 360˚(4Way) 1MP 170° 14000Lx 55000Lx
    CK5-39024 5" Ø3.9mm 2M 360˚(4Way) 1MP 150° 14000Lx 45000Lx
    CK5-39034 5" Ø3.9mm 3M 360˚(4Way) 1MP 130° 14000Lx 35000Lx
    CK5-39044 5" Ø3.9mm 4M 360˚(4Way) 1MP 110° 14000Lx 25000Lx
    CK5-39054 5" Ø3.9mm 5M 360˚(4Way) 1MP 90° 14000Lx 15000Lx
    CK5-39064 5" Ø3.9mm 6M 360˚(4Way) 1MP 80° 14000Lx
    CK5-60014 5" Ø6.0mm 1M 360˚(4Way) 1MP 170° 17000Lx 100000Lx
    CK5-60024 5" Ø6.0mm 2M 360˚(4Way) 1MP 170° 17000Lx 90000Lx
    CK5-60034 5" Ø6.0mm 3M 360˚(4Way) 1MP 160° 17000Lx 80000Lx
    CK5-60044 5" Ø6.0mm 4M 360˚(4Way) 1MP 150° 17000Lx 70000Lx
    CK5-60054 5" Ø6.0mm 5M 360˚(4Way) 1MP 130° 17000Lx 60000Lx
    CK5-60064 5" Ø6.0mm 6M 360˚(4Way) 1MP 120° 17000Lx 50000Lx
    CK5-60074 5" Ø6.0mm 7M 360˚(4Way) 1MP 110° 17000Lx 40000Lx
    CK5-60084 5" Ø6.0mm 8M 360˚(4Way) 1MP 100° 17000Lx
    CK5-60104 5" Ø6.0mm 10M 360˚(4Way) 1MP 80° 17000Lx
    CK5-60154 5" Ø6.0mm 15M 360˚(4Way) 1MP 80° 17000Lx
    CK5-60204 5" Ø6.0mm 20M 360˚(4Way) 1MP 80° 17000Lx

     CK5 IR Series (Interchangeable Display & Probe)

    Model Display Tip Dia. Length Articulation Camera Res. Bend Angle  Light
    CK5-39014IR 5" Ø3.9mm 1M 360˚(4Way) 1MP 170°



    IR 940nm
    CK5-39024IR 5" Ø3.9mm 2M 360˚(4Way) 1MP 150°
    CK5-39034IR 5" Ø3.9mm 3M 360˚(4Way) 1MP 130°
    CK5-39044IR 5" Ø3.9mm 4M 360˚(4Way) 1MP 110°
    CK5-39054IR 5" Ø3.9mm 5M 360˚(4Way) 1MP 90°
    CK5-39064IR 5" Ø3.9mm 6M 360˚(4Way) 1MP 60°
    CK5-39014IRS 5" Ø3.9mm 1M 360˚(4Way) 1MP 170°

    IR 940nm & White LED Dual-lights Switch
    CK5-39024IRS 5" Ø3.9mm 2M 360˚(4Way) 1MP 150°
    CK5-39034IRS 5" Ø3.9mm 3M 360˚(4Way) 1MP 130°
    CK5-39044IRS 5" Ø3.9mm 4M 360˚(4Way) 1MP 110°
    CK5-39054IRS 5" Ø3.9mm 5M 360˚(4Way) 1MP 90°
    CK5-39064IRS 5" Ø3.9mm 6M 360˚(4Way) 1MP 60°
    CK5-60014IR 5" Ø6.0mm 1M 360˚(4Way) 1MP 170°



    IR 940nm
    CK5-60024IR 5" Ø6.0mm 2M 360˚(4Way) 1MP 150°
    CK5-60034IR 5" Ø6.0mm 3M 360˚(4Way) 1MP 130°
    CK5-60044IR 5" Ø6.0mm 4M 360˚(4Way) 1MP 110°
    CK5-60054IR 5" Ø6.0mm 5M 360˚(4Way) 1MP 90°
    CK5-60064IR 5" Ø6.0mm 6M 360˚(4Way) 1MP 60°
    CK5-60014IRS 5" Ø6.0mm 1M 360˚(4Way) 1MP 170°

    IR 940nm & White LED Dual-lights Switch
    CK5-60024IRS 5" Ø6.0mm 2M 360˚(4Way) 1MP 150°
    CK5-60034IRS 5" Ø6.0mm 3M 360˚(4Way) 1MP 130°
    CK5-60044IRS 5" Ø6.0mm 4M 360˚(4Way) 1MP 110°
    CK5-60054IRS 5" Ø6.0mm 5M 360˚(4Way) 1MP 90°
    CK5-60064IRS 5" Ø6.0mm 6M 360˚(4Way) 1MP 60°

     CK5 UV Series (Interchangeable Display & Probe)

    Model Display Tip Dia. Length Articulation Camera Res. Bend Angle  Light
    CK5-39014UV 5" Ø3.9mm 1M 360˚(4Way) 1MP 170°
    UV 365nm
    CK5-39024UV 5" Ø3.9mm 2M 360˚(4Way) 1MP 150°
    CK5-39034UV 5" Ø3.9mm 3M 360˚(4Way) 1MP 130°
    CK5-60014UV 5" Ø6.0mm 1M 360˚(4Way) 1MP 170°
    UV 365nm
    CK5-60024UV 5" Ø6.0mm 2M 360˚(4Way) 1MP 150°
    CK5-60034UV 5" Ø6.0mm 3M 360˚(4Way) 1MP 130°
    1500Lx
  • Borescope FAQ – Applications, Articulation & Model Selection

    The Overview of The Application of Borescopes

    There are all kinds of applications of borescopes which approximately include the inspection of aircraft, motors, electricity, industrial machinery, construction and pipeline/drain/sewer. And we will explain more in the following. First of all, in terms of the inspection of aircraft and airframe, borescopes have a role to play. It is because a regular inspection of turbine blades is extremely important to aircraft. To be more precise, maintaining the reliability of the aircraft gas turbine, repairing the wear of components, and examining the contaminated fluids and leaks are what the borescopes can do for us. Secondly, a borescope can also inspect motors, such as engine combustion chambers including some parts as follows, valves, cylinder heads, piston crowns, liners, and water pump weep holes. What’s more, borescopes can also inspect whether water pumps weep holes for coolant leaks and check fuel lines and tanks. Thirdly, borescopes can do more than that, and that is the inspection and maintenance of electricity. For example, the maintenance of nuclear power, water, wind, fire stations of pipelines/turbines and generators are the other applications of borescopes.



    On top of that, borescopes can also be used in the inspection of industrial machinery to check the mechanical equipment and manufacturing equipment, surplus material inspection, big generators, heat exchanger. To be honest, the application of borescopes is a perpetual topic. Last but not least, borescopes are widely used in the inspection of construction and pipeline/drain / sewer. In terms of the inspection of construction, steel tubes can not only be used to examine corrosion and fouling, wall and another internal diagnosis, steel rust, bridge expansion joint cracking, etc. but also can be used for tunnel lumen, observation of building models. As for the inspection of pipeline/drain/sewer, borescopes can help check the corrosion and diagnose the blocking drains. Peculiarly, cracks, white spots, sand holes, pores, and slag on the surface of pipeline and welding seam can be checked through borescopes.



    There many advantage that articulating video borescopes offer.


    Most NDT applications have small, limited entrance that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corner.

    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even cost effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection device like the
    CK-5 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When CK-5 cameras do not have to be repeatedly manipulate with the purpose of complete inspections, NDT technicians can safe valuable working time.

    Articulating borescopes has an insertion tube of a videoscope usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve the flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.

    Below is common knowledge of these two types:

      Non Articulation Borescope Articulation Borescope
    Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant)
    Assembly Process Easier More Complicated with multi production procedures
    Advantage Basic Inspection at lower price Articulation for better viewing angle. Can do more job in different working environment
    Disadvantage Limited viewing angle for inspection More expensive for new and repair
  • Introduction

    Video Borescope Key Features

    90°/120°/140° Broad vision Different Diameter of Probe for option



    Different Diameter of Probe for option













    Rich Options
    2MM-6MM RICH PIPELINE CONFIGURATION
    LENS COVER
    STRAIGHT SIDE VIEW LENS



    1.8mm Forward View
    2.4mm Forward View
    2.8mm Forward View
    3.9 Forward View or Side View
    6.0mm Forward View
    6.0 Side View
    6.0mm Forward&Side Dual View




    Super Thin Probe Φ0.95mm is Now Available







    1 Mega Pixels camera Rear LED illumination 360° Articulation



    High Resolution Screen 5"
    Optional Dual cameras
    WIFI To Smartphone (for Android)

    1024*768, 5.0”HD LCD, Dual cameras





    Five layers of Tungsten-braided Probe
    High density braid outer layer, Flexible polyurethane inner layer, EPDM erosion resistant tubes,Compressive steel ring,Guide steel wire










    IP67 Water Proof Design



    Measuring Scale on Display



    High Image Quality & Features
    High image Quality & Features,HD 1,000,000 PIXEL,High Brightness LED,Long Depth of Field,Highly True Colors,Overexposure Restrain











    Key Description
    on/off screen freeze,Photovideo,Upflip,Brightness adjustmentdelete,Returnplayback,Downzoom,Menuconfirm



    Handy Detachable Probe,Display, and Battery



    CK5 vs CK6 Display Comparison
    Model CK5 CK6
    Display 5" HD Screen 6" Full HD Touch Screen
    Pixel 1280*720 1920*1080
    Sunshade Display No Yes
     Dual View Compare No Yes
    Keyboard on Display No Yes
    Image Effect Adjustment No Yes
    Internal Memory No ; Support 128GB TF card Yes 8GB ; Support 128GB TF card
    USB Port Micro USB Type-C
    Battery  Fix Support 1pc to 4pcs 18650 type battery
    Working Time ≥ 4 Hours ≥ 8 Hours
    Probe Same Probes,  Interchangeable

















    Scenario application,industrial testing,Aerospace,Pipe welding,Power detection,Rail transit,


    In-pipe welding inspection










    CK-IR series ULTRA FAR HD INFRARED RECORD ENDOSCOPE



    CK-IR Series Different Diameter of Probe for option


    3.9mm & 6mm Front View -  InfraRed


    3.9mm & 6mm Front View -  InfraRed & White LED  -  Dual-light Switch




    6mm Dual view - InfraRed & White LED  - Dual-light Switch


    * Above Red Light Graphic is Actually Invisible Infrared Light.

    CK-IR Series Borescope Demostration



    CK-UV series  UV 365nm Light








    Standard accessories : tripod,Rugged tool box,USB Cable,Charger,TF card,Card reader,Battery(for optional)

    Option accessories



    Stretchable Roller Skid 34mm~135mm for 5.5mm & 6mm probe.


    Stretchable Roller Skid 26mm~75mm for 3.9mm probe.



    The 25mm centralizer ball is used to center the lens and better assist in corner turning.



    Shock Proof ABS Portable Case - Black Color Console for option.





    1 Display+2 Probes



    CK series videoscopes are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

    Explore the CK5 Series 5-inch HD Video Borescope, a multifunctional and high-performance professional inspection tool. Equipped with tungsten probes ranging from 2MM-6MM in diameter, including an ultra-thin Φ0.95mm option, it adapts to various narrow spaces. A 1 million pixel camera with 360° adjustment capability, combined with a 1024*768 high-resolution 5.0” HD LCD display, ensures clear and detailed images.

    The robust five-layer tungsten braided probe and IP67 waterproof design guarantee durability and adaptability. Easy to operate, it features one-touch freeze, photo, and video functions, and supports detachable probes, displays, and batteries, enhancing flexibility and portability. The CK5 is suitable for a wide range of fields, including automotive manufacturing and aerospace, making it an ideal choice for improving inspection efficiency and accuracy. Upgrade now and embark on a new chapter of professional inspection!

  • Specification

    CK5 Series Technical Specifications – Video Borescopes Overview


    Series CK5-10 CK5-12 CK5-15 CK5-18 CK5-20 CK5-24 CK5-28 CK5-39 CK5-60
    Prob​e Diameter 0.95mm 1.2mm 1.5mm 1.8mm 2.0mm 2.4mm 2.8mm 3.9mm 6.0mm
    Viewing Direction 0°  Front View
    Camera Pixels 160,000 1,000,000
    D.O.F. 3-70mm 5-100mm 12-200mm
    (​Long Focus :
    50mm-infinity for option)

    (Short focus:
    3-30mm for option)
    F.O.V. 120°
    Image Resolution 640*480 / 960*720 / 1280*720
    Video Resolution 640*480 / 960*720 / 1280*720
    Articulation Non 2-WAY Articulation 360° Joystick-control Articulation
    Light Source

    Rear-mounted LED + Optic fiber


    Front LED
    Front Camera / Side Cameera : Front LED
    Dual View: Rear-mounted LED + Optic fiber

    (IR for option)
    (UV for option)

    Front LED
    (IR for option)
    (UV for option)
    Front LED Illuminance       2500 Lx 4000 Lx 6500 Lx 14000 Lx 17000 Lx
    Rear-mounted LED Illuminance 7500 Lx 7500 Lx 15000 Lx 15000 Lx 17500 Lx 55000 Lx 100000 Lx
    adjustable light 1~8 levels
    Probe Material Stainless steel 5 Layers of  Tungsten-braided insert probe. Extreme resistance to impact and wearing.
    Probe Length 0.5m / 1m 0.5m / 1m 0.5m / 1m / 1.5m 1m / 2m / 3m 1m/2m/3m
    4m/5m
    /6m
    1m ~ 20m
    Bending Angle Non 130° / 100°/ 70° 150° / 120°/ 100° 130° / 100°/ 70° 160° / 130°/ 100° 170° / 130°/ 110° 170°~80° 170° ~80°
    Waterproof  Non Host: IP54      Probe / Camera: IP67
    Display 5" color IPS display. All sight viewing angle
    Display Resolution 1024*768
    Zoom In Digital zoom 5X
    Language 1. 简体中文 (Simplified Chinese) 2. 繁體中文 (Traditional Chinese) 3. English (English) 4. Deutsch (German) 5. Français (French) 6. Español (Spanish)
    7. Italiano (Italian)8. Русский язык (Russian) 9. Polska (Polish) 10. 日本語 (Japanese) 11. Українська (Ukrainian) 12. Korean (Korean) 13. Dutch (Dutch)
    14. Hungarian (Hungarian) 15. Türkçe (Turkish)
    Software Function Freezing, zooming, photographing, flipping, video playback and analog ruler functions
    WIFI WIFI To Smartphone (for Android)
    White Balance Auto white balance/manual
    Structure Handheld, integrated design
    Image / Video Format JPG / MP4
    Data Port HDMI video output
    Storage Temperature -20℃~60℃
    Working Temperature -10℃~80℃, low temperature without preheating
    Working Time ≥4h for Option
    Battery Capacity 5V, 3400mAh
    Power Charge DC5V, 1A
    Videoscope Weight & Size 1Kg, Size: 375*175*78mm
    Compatibility Interchangeable monitor and tube with different diameters
    Portable Case ABS airtight shock-proof portable case, size: 46*40*19cm
    Carton Size Export outer carton size: 49*41*20cm, GW : 5Kgs (Standard Series < 8m)
    Export outer carton size: 58×37×27cm, GW : 6Kgs (10m)
    Export outer carton size: 68×35×51cm, GW : 12Kgs (15m/20m)
    Export outer carton size: 68×49×24.5cm, GW : 10Kgs (1 Display+2 Probes)
    Standard Accessory tripod,Rugged tool box,USB Cable,Charger,TF card(32G),Card reader,Battery(for optional)
    Side View Camera Non  focus 7-150mm Available for option
    (Light: Rear-mounted
    LED+Optic fiber
     )
    Dual-view Camera Non focus 7-150mm
    (focus 3-30mm for option)
    Available for option
    (Light: Rear-mounted LED+Optic fiber
    )
    Option IR 940nm Light / IR 940nm & White LED dual-light.
    UV 365nm Light
    WIFI To Smartphone (for Android)
    Stretchable Roller Skid 34mm~135mm for 8mm & 6mm probe
    Stretchable Roller Skid 36mm~75mm for 3.9mm probe
    25mm centralizer ball
    Non articulation probes are available
    High Temperature Alarm
    Probe Frontend Voice Recording
  • Model

    Complete Specifications of CK5 Industrial Video Borescopes

    CK5 Series (Interchangeable Display & Probe)

    Model Display Tip Dia. Length Articulation Camera Res. Bend
    Angle
    Fromt LED
    (Lx)
    Back LED
    (Lx)
    CK5-1000 5" Ø0.95mm 0.5M - 160000 -   11000Lx
    CK5-1001 5" Ø0.95mm 1M - 160000 -   7500Lx
    CK5-1200 5" Ø1.2mm 0.5M - 160000 - 1500Lx 11000Lx
    CK5-1201 5" Ø1.2mm 1M - 160000 - 1500Lx 7500Lx
    CK5-15002 5" Ø1.5mm 0.5M 2Way 160000 130° 2500Lx
    CK5-15012 5" Ø1.5mm 1M 2Way 160000 100° 2500Lx
    CK5-15022 5" Ø1.5mm 1.5M 2Way 160000 70° 2500Lx
    CK5-18012 5" Ø1.8mm 1M 2Way 160000 170° 2500Lx 15000Lx
    CK5-18022 5" Ø1.8mm 2M 2Way 160000 140° 2500Lx 11500Lx
    CK5-18032 5" Ø1.8mm 3M 2Way 160000 110° 2500Lx
    CK5-20014 5" Ø2.0mm 1M 360˚(4Way) 160000 170° 4000Lx 15000Lx
    CK5-20024 5" Ø2.0mm 2M 360˚(4Way) 160000 140° 4000Lx 11500Lx
    CK5-20034 5" Ø2.0mm 3M 360˚(4Way) 160000 110° 4000Lx
    CK5-24014 5" Ø2.4mm 1M 360˚(4Way) 160000 130° 4000Lx 15000Lx
    CK5-24024 5" Ø2.4mm 2M 360˚(4Way) 160000 100° 4000Lx 11500Lx
    CK5-24034 5" Ø2.4mm 3M 360˚(4Way) 160000 70° 4000Lx
    CK5-28014 5" Ø2.8mm 1M 360˚(4Way) 160000 170° 6500Lx 17500Lx
    CK5-28024 5" Ø2.8mm 2M 360˚(4Way) 160000 140° 6500Lx 15000Lx
    CK5-28034 5" Ø2.8mm 3M 360˚(4Way) 160000 110° 6500Lx 10000Lx
    CK5-39014 5" Ø3.9mm 1M 360˚(4Way) 1MP 170° 14000Lx 55000Lx
    CK5-39024 5" Ø3.9mm 2M 360˚(4Way) 1MP 150° 14000Lx 45000Lx
    CK5-39034 5" Ø3.9mm 3M 360˚(4Way) 1MP 130° 14000Lx 35000Lx
    CK5-39044 5" Ø3.9mm 4M 360˚(4Way) 1MP 110° 14000Lx 25000Lx
    CK5-39054 5" Ø3.9mm 5M 360˚(4Way) 1MP 90° 14000Lx 15000Lx
    CK5-39064 5" Ø3.9mm 6M 360˚(4Way) 1MP 80° 14000Lx
    CK5-60014 5" Ø6.0mm 1M 360˚(4Way) 1MP 170° 17000Lx 100000Lx
    CK5-60024 5" Ø6.0mm 2M 360˚(4Way) 1MP 170° 17000Lx 90000Lx
    CK5-60034 5" Ø6.0mm 3M 360˚(4Way) 1MP 160° 17000Lx 80000Lx
    CK5-60044 5" Ø6.0mm 4M 360˚(4Way) 1MP 150° 17000Lx 70000Lx
    CK5-60054 5" Ø6.0mm 5M 360˚(4Way) 1MP 130° 17000Lx 60000Lx
    CK5-60064 5" Ø6.0mm 6M 360˚(4Way) 1MP 120° 17000Lx 50000Lx
    CK5-60074 5" Ø6.0mm 7M 360˚(4Way) 1MP 110° 17000Lx 40000Lx
    CK5-60084 5" Ø6.0mm 8M 360˚(4Way) 1MP 100° 17000Lx
    CK5-60104 5" Ø6.0mm 10M 360˚(4Way) 1MP 80° 17000Lx
    CK5-60154 5" Ø6.0mm 15M 360˚(4Way) 1MP 80° 17000Lx
    CK5-60204 5" Ø6.0mm 20M 360˚(4Way) 1MP 80° 17000Lx

     CK5 IR Series (Interchangeable Display & Probe)

    Model Display Tip Dia. Length Articulation Camera Res. Bend Angle  Light
    CK5-39014IR 5" Ø3.9mm 1M 360˚(4Way) 1MP 170°



    IR 940nm
    CK5-39024IR 5" Ø3.9mm 2M 360˚(4Way) 1MP 150°
    CK5-39034IR 5" Ø3.9mm 3M 360˚(4Way) 1MP 130°
    CK5-39044IR 5" Ø3.9mm 4M 360˚(4Way) 1MP 110°
    CK5-39054IR 5" Ø3.9mm 5M 360˚(4Way) 1MP 90°
    CK5-39064IR 5" Ø3.9mm 6M 360˚(4Way) 1MP 60°
    CK5-39014IRS 5" Ø3.9mm 1M 360˚(4Way) 1MP 170°

    IR 940nm & White LED Dual-lights Switch
    CK5-39024IRS 5" Ø3.9mm 2M 360˚(4Way) 1MP 150°
    CK5-39034IRS 5" Ø3.9mm 3M 360˚(4Way) 1MP 130°
    CK5-39044IRS 5" Ø3.9mm 4M 360˚(4Way) 1MP 110°
    CK5-39054IRS 5" Ø3.9mm 5M 360˚(4Way) 1MP 90°
    CK5-39064IRS 5" Ø3.9mm 6M 360˚(4Way) 1MP 60°
    CK5-60014IR 5" Ø6.0mm 1M 360˚(4Way) 1MP 170°



    IR 940nm
    CK5-60024IR 5" Ø6.0mm 2M 360˚(4Way) 1MP 150°
    CK5-60034IR 5" Ø6.0mm 3M 360˚(4Way) 1MP 130°
    CK5-60044IR 5" Ø6.0mm 4M 360˚(4Way) 1MP 110°
    CK5-60054IR 5" Ø6.0mm 5M 360˚(4Way) 1MP 90°
    CK5-60064IR 5" Ø6.0mm 6M 360˚(4Way) 1MP 60°
    CK5-60014IRS 5" Ø6.0mm 1M 360˚(4Way) 1MP 170°

    IR 940nm & White LED Dual-lights Switch
    CK5-60024IRS 5" Ø6.0mm 2M 360˚(4Way) 1MP 150°
    CK5-60034IRS 5" Ø6.0mm 3M 360˚(4Way) 1MP 130°
    CK5-60044IRS 5" Ø6.0mm 4M 360˚(4Way) 1MP 110°
    CK5-60054IRS 5" Ø6.0mm 5M 360˚(4Way) 1MP 90°
    CK5-60064IRS 5" Ø6.0mm 6M 360˚(4Way) 1MP 60°

     CK5 UV Series (Interchangeable Display & Probe)

    Model Display Tip Dia. Length Articulation Camera Res. Bend Angle  Light
    CK5-39014UV 5" Ø3.9mm 1M 360˚(4Way) 1MP 170°
    UV 365nm
    CK5-39024UV 5" Ø3.9mm 2M 360˚(4Way) 1MP 150°
    CK5-39034UV 5" Ø3.9mm 3M 360˚(4Way) 1MP 130°
    CK5-60014UV 5" Ø6.0mm 1M 360˚(4Way) 1MP 170°
    UV 365nm
    CK5-60024UV 5" Ø6.0mm 2M 360˚(4Way) 1MP 150°
    CK5-60034UV 5" Ø6.0mm 3M 360˚(4Way) 1MP 130°
    1500Lx
  • Q&A

    Borescope FAQ – Applications, Articulation & Model Selection

    The Overview of The Application of Borescopes

    There are all kinds of applications of borescopes which approximately include the inspection of aircraft, motors, electricity, industrial machinery, construction and pipeline/drain/sewer. And we will explain more in the following. First of all, in terms of the inspection of aircraft and airframe, borescopes have a role to play. It is because a regular inspection of turbine blades is extremely important to aircraft. To be more precise, maintaining the reliability of the aircraft gas turbine, repairing the wear of components, and examining the contaminated fluids and leaks are what the borescopes can do for us. Secondly, a borescope can also inspect motors, such as engine combustion chambers including some parts as follows, valves, cylinder heads, piston crowns, liners, and water pump weep holes. What’s more, borescopes can also inspect whether water pumps weep holes for coolant leaks and check fuel lines and tanks. Thirdly, borescopes can do more than that, and that is the inspection and maintenance of electricity. For example, the maintenance of nuclear power, water, wind, fire stations of pipelines/turbines and generators are the other applications of borescopes.



    On top of that, borescopes can also be used in the inspection of industrial machinery to check the mechanical equipment and manufacturing equipment, surplus material inspection, big generators, heat exchanger. To be honest, the application of borescopes is a perpetual topic. Last but not least, borescopes are widely used in the inspection of construction and pipeline/drain / sewer. In terms of the inspection of construction, steel tubes can not only be used to examine corrosion and fouling, wall and another internal diagnosis, steel rust, bridge expansion joint cracking, etc. but also can be used for tunnel lumen, observation of building models. As for the inspection of pipeline/drain/sewer, borescopes can help check the corrosion and diagnose the blocking drains. Peculiarly, cracks, white spots, sand holes, pores, and slag on the surface of pipeline and welding seam can be checked through borescopes.



    There many advantage that articulating video borescopes offer.


    Most NDT applications have small, limited entrance that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corner.

    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even cost effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection device like the
    CK-5 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When CK-5 cameras do not have to be repeatedly manipulate with the purpose of complete inspections, NDT technicians can safe valuable working time.

    Articulating borescopes has an insertion tube of a videoscope usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve the flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.

    Below is common knowledge of these two types:

      Non Articulation Borescope Articulation Borescope
    Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant)
    Assembly Process Easier More Complicated with multi production procedures
    Advantage Basic Inspection at lower price Articulation for better viewing angle. Can do more job in different working environment
    Disadvantage Limited viewing angle for inspection More expensive for new and repair
Related products
  • CK6 Series 6"Full HD Video Borescope Tungsten Probe 360°
    CK6 Series 6"Full HD Video Borescope Tungsten Probe 360°
  • CT Series 5.1" HD Video Borescope Tungsten Probe 360°
    CT Series 5.1" HD Video Borescope Tungsten Probe 360°
  • DA4 Series 4.5" HD Video Borescope Tungsten Probe 360°
    DA4 Series 4.5" HD Video Borescope Tungsten Probe 360°
  • JK Series 7" Professional Video Borescope Camera 360°
    JK Series 7" Professional Video Borescope Camera 360°
  • JF Series 3.5" Handy Video Borescope Inspection Camera
    JF Series 3.5" Handy Video Borescope Inspection Camera
  • CC Series Smart Mobile Phone Borescope
    CC Series Smart Mobile Phone Borescope
  • E5S Series 5" ISP Video Borescope
    E5S Series 5" ISP Video Borescope
  • EC5 Series 5" HD Video Borescope
    EC5 Series 5" HD Video Borescope
  • PH7 Series 7" Video Borescope Tungsten Probe 360°
    PH7 Series 7" Video Borescope Tungsten Probe 360°
  • PG Series 3.5" LCD Videoscope Borescope Camera
    PG Series 3.5" LCD Videoscope Borescope Camera
  • PM Series 3.5" LCD Videoscope Borescope Camera
    PM Series 3.5" LCD Videoscope Borescope Camera
  • PR Series 5" Wireless Video Borescope Inspection Camera
    PR Series 5" Wireless Video Borescope Inspection Camera
Back to the top

Contact Us

Mail toome-top@ome-top.com

  OME-TOP SYSTEMS CO., LTD

Tel : +886-2-22880699 (Rep.)
Fax : +886-2-22889191
Y. C. HUANG whatsapp : +886-958911847
No.176-1, Zhongshan 2nd Rd., Luzhou Dist, New Taipei City 247, Taiwan.
borescope inspection camera|Video Borescope|Probe of Borescope
Designed by MIRACLEWeb Design
256 bit SSL Encryption
Recommend using Chrome, Firefox, Safari latest version of the browser.
