JK Series 7" Professional Video Borescope Camera 360°
1 / 5
  • JK Series 7" Professional Video Borescope Camera 360°
  • JK Series 7" Professional Video Borescope Camera 360°
  • JK Series 7" Professional Video Borescope Camera 360°
  • JK Series 7" Professional Video Borescope Camera 360°
  • JK Series 7" Professional Video Borescope Camera 360°
JK Series 7" Professional Video Borescope Camera 360°
Description:
‧ Large 7" LCD Monitor (800*480)
‧ Snapshot & Video Recording
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ Display Dust/water protection IP55
‧ 1 meter drop test
‧ Made in Taiwan. High Durability
‧ Two Year Warranty for display
‧ Ship Worldwide
Download file
  • Introduction
  • Specification
  • Inspection Probe
  • Model
  • Q&A
  •

    Large 7" TFT LCD (800*480)

    Embedded with 7 inch TFT LCD Monitor provides superior Image quality for inspector to see.

    Light & Handy

    Weighing just 1.18kg with hand strap and neck strap allows user to more easily use.



    Built-in Support Stand

    JK series has built-in stand errect at any space without using other tools.

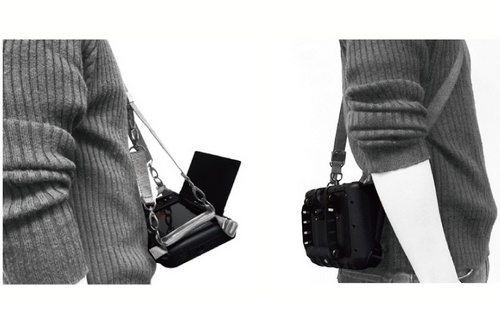

    Shoulder Strap

    Easy carry and release your hand when using. (Standard accessory for all JK display except pipe series)






    Touch screen button functions

    Image Rotate / Mirror Image / Dual-view (with dual-veiew mirror) / Comparison

    Album photo annotation

    Maximum 10 notes on a photo. Each note can key in maximum 24 characters.

    Three Stage 5.0X Zoom-In

    Support 1.5X / 2.0X / 5.0X digital zoom

    Screen Image Rotation Ability

    Image rotation allowing user to turn image into four directions 90°/180°/270°/360°.

    USB Connection

    JK Series is capable to transfer captured images and view from PC. Support Windows 7 or later version. No specific software is required to palyback the JPG and ASF files

    Video Output

    Recorded video & images can be displayed directly to a TV screen for large sereen viewing. Support “ PAL ” / “ NTSC ” video system.


    Mirror Image

    Support mirror image to correct the direction of probe.

    Live View Software

    Live view software with snap-shot, video recording and playback function for Windows OS.


    Multi Probes Selection

    Complete Package

    Aluminum Alloy Portable Case
    Air-tight ABS Portable Case

    Standard Accessory

    Basic Cleaning Kit
    16G SD Card
    Video Cable
    USB Cable
    Neck Strap
    Sun Visor
    Charger

    Application

    •Aircraft Turbines •Airframe Inspections •Bearings & Gearboxes •Chemical Processing •Co-Gen Plants •Corrosion •Motors •PC Pumps •Electronic Assemblies •Heat Exchangers & Boilers •Heavy Equipment Maintenance •HVAC and Mechanical •Land-Based Turbines •Large Diesel Engines •Metal Castings •Military/EOD/Law Enforcement •Mining & Exploration Maintenance •Nuclear Power •Oil & Gas Maintenance •Paper Mills •Power Gen •Pumps & Valves •Engines •Refineries •Wind Turbines •Drain/Sewer/Pipe •Hard-to-reach places •Non Destructive Testing

    Hot Sale Model

    JKVS-60074
    JKVS-45022
    JKS-2830M
    JKVS-60032

    Demonstration

    Main Customers

    Fast Delivery



    General 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.





  • Features Description
    LCD 7" TFT LCD ( 800 x 480 )
    Snapshot JPEG ( 640 x 480 )
    Recording MPEG4 ( 640 x 480 ) with Audio
    Storage 16G SD card ( up to 32G )
    USB Live view mode (optional software) / Mass storage mode
    AV output NTSC/PAL
    Audio input Built-in microphone
    Zoom-in Support 1.5X / 2.0X / 5.0X digital zoom
    Brightness Adjust 10 levels
    Dust & Water Proof IP57
    Shock Proof 1 meter drop test
    Working temperature -10 ~ 60℃
    Storage temperature -20 ~ 80℃
    Battery Built-in Li-polymer Battery, Capacity: 6 hrs, Charge time: 3 hrs
    Languages 27 Languages:
    English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Danish / Dutch / Polish / Russian /Bulgarian / Turkish / Swedish / Finnish / Norwegian / Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovenian / Romanian / Greek
    Dimension 240 * 154 * 47 (mm)
    Weight 1.18 kg (2.6 lb)
  •

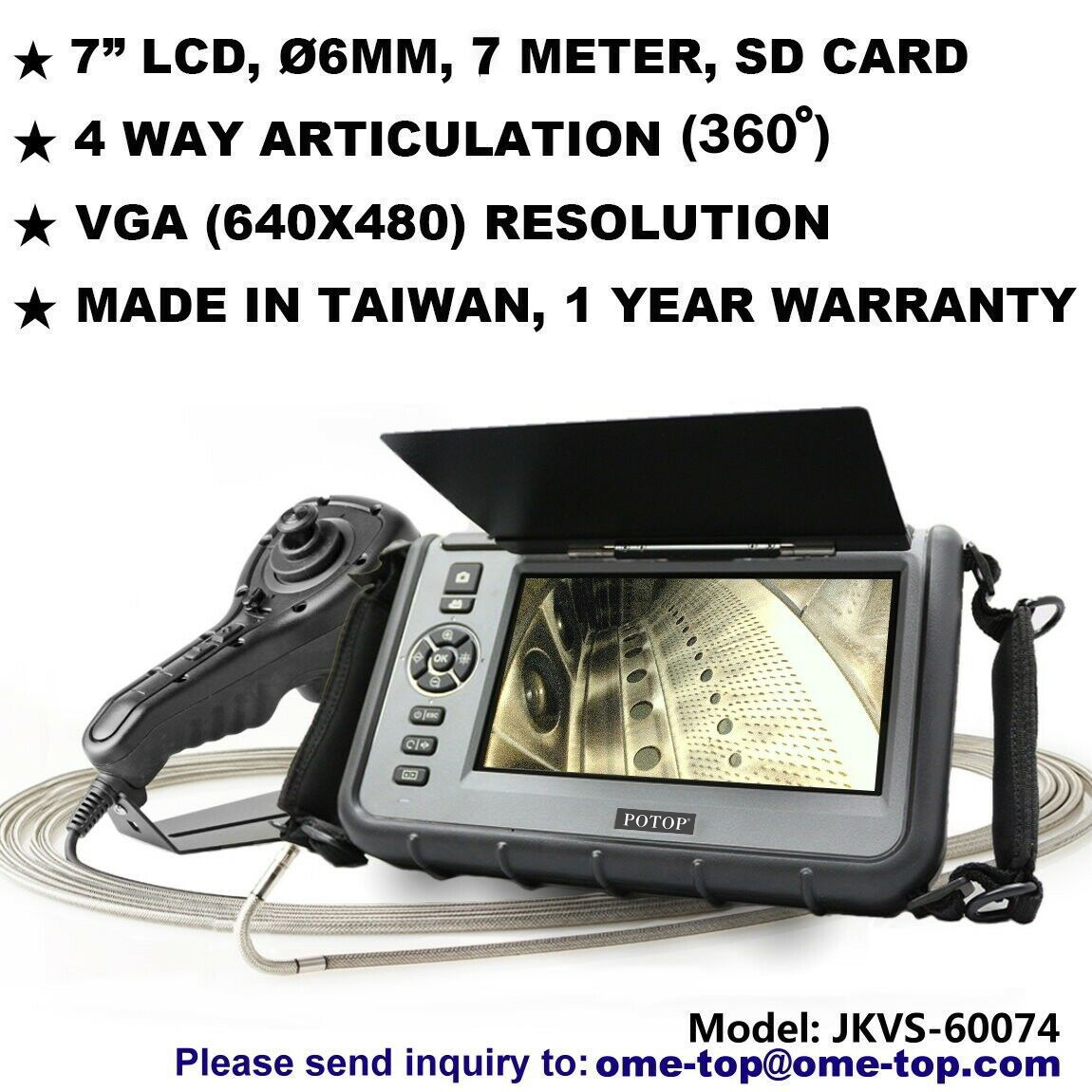

    360° Articulation VGA Probe

    360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability, flexibility and also rusty, water and temperature resistant.

    Model: JKVS-60014 ~ JKVS-60074
    Articulation Type : 360° ( 4Way )
    Tip Diameter : Ø6.0mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1M / 3M / 5M / 7M

    Read More



    Short Tip Articulation VGA Probe

    180º bending angle, short-tip more inspection areas.

    Model: JKVS-45022 / JKVS-45032 / JKVS-60011
    Articulation Type : 2Way / 1Way
    Tip Diameter : Ø4.5 / Ø6.0mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1M / 1.5M / 3M
    Read More



    2 Way Articulation VGA Probe

    2 way articulation probe that checks angles hardly to reach.

    Model: JKVS-60012 ~ JKVS-60032
    Articulation Type : 2Way
    Tip Diameter : Ø6.0mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1M / 2M / 3M

    Read More



    Cast VGA Probe

    Stainless Steel spring tube provides inspection flexibility / Rubbing resistant material pipe, increase of service life. Ideal for cast inspection.

    Model: JKVS-5401
    Tip Diameter : Ø5.4mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1M

    Read More



    VGA Probe

    Acquire clearer, brighter images, anti-reflection and vertical/horizontal mirror effects. You don't need to wipe out the dust while you are inspecting with mirror, simply push the particle-free button and get clear view.

    Model: JKVS-5501 ~ JKVS-5505
    Tip Diameter : Ø5.5mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1M / 2M / 3M / 5M

    Read More



    Dual Cameras Probe

    Dual-camera Probe with Quick Switch of Forward-View and Side-View for option.

    Model: JKR-4901 ~ JKR-4903
    Tip Diameter : Ø4.9mm
    Resolution : 320 x 240 ( QVGA )
    Porbe Length : 1M / 2M / 3M

    Read More



    General Probe

    Front / Side view.

    Model: JKR-3901 / JKS-5501 / JKR-8501 Series
    Tip Diameter : Ø3.9mm/Ø5.5mm/Ø8.5mm
    Resolution : 320 x 240 ( QVGA )
    Porbe Length : 1M / 2M / 3M / 5M / 10M / 30M

    Read More



    PIPE Inspection Probe

    Great for rugged and curved inspection / Stainless steel camera head / Water and dust proof / system options / Optional accessories.

    Model: JKS-2810 / JKS-2830M
    Tip Diameter : Ø28mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 10M / 30M

    Read More
  • Model Tip Dia. Length Resolution Material of Tube Articulation Features
    JKVS-60014 Ø6.0mm 1M 640X480 Braided Stainless Steel 360° Articulation
    JKVS-60034 Ø6.0mm 3M 640X480 Braided Stainless Steel 360° Articulation
    JKVS-60054 Ø6.0mm 5M 640X480 Braided Stainless Steel 360° Articulation
    JKVS-60074 Ø6.0mm 7M 640X480 Braided Stainless Steel 360° Articulation
    JKVS-45022 Ø4.5mm 1.5M 640X480 Braided Stainless Steel 2Way Articulation Short-Tip
    JKVS-45032 Ø4.5mm 3M 640X480 Braided Stainless Steel 2Way Articulation Short-Tip
    JKVS-60011 Ø6.0mm 1M 640X480 Braided Stainless Steel 1Way Articulation Short-Tip
    JKVS-60012 Ø6.0mm 1M 640X480 Soft-Metal 2Way Articulation
    JKVS-60022 Ø6.0mm 2M 640X480 Soft-Metal 2Way Articulation
    JKVS-60032 Ø6.0mm 3M 640X480 Soft-Metal 2Way Articulation
    JKS-2810 Ø28mm 10M 640X480 Hard Soft-Metal   Pipe Inspection
    JKS-2830M Ø28mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    JKVS(R)-5501 Ø5.5mm 1M 640X480 Soft-Metal (Semi-Rigid)
    JKVS(R)-5502 Ø5.5mm 2M 640X480 Soft-Metal (Semi-Rigid)
    JKVS(R)-5503 Ø5.5mm 3M 640X480 Soft-Metal (Semi-Rigid)
    JKVS-5505 Ø5.5mm 5M 640X480 Soft-Metal
    JKVS-5401 Ø5.4mm 1M 640X480 Stainless Steel Spring   Cast
    JKR-3901 Ø3.9mm 1M 320X240 Semi-Rigid
    JKR-3902 Ø3.9mm 2M 320X240 Semi-Rigid
    JKR-3903 Ø3.9mm 3M 320X240 Semi-Rigid
    JKR-4901S Ø4.9mm 1M 320X240 Semi-Rigid   Dual Cameras
    JKR-4902S Ø4.9mm 2M 320X240 Semi-Rigid   Dual Cameras
    JKR-4903S Ø4.9mm 3M 320X240 Semi-Rigid   Dual Cameras
    JKS(R)-5501 Ø5.5mm 1M 320X240 Soft-Metal (Semi-Rigid)
    JKS(R)-5502 Ø5.5mm 2M 320X240 Soft-Metal (Semi-Rigid)
    JKS(R)-5503 Ø5.5mm 3M 320X240 Soft-Metal (Semi-Rigid)
    JKS-5505 Ø5.5mm 5M 320X240 Soft-Metal
    JKS-5510 Ø5.5mm 10M 320X240 Soft-Metal
    JKS-5530 Ø5.5mm 30M 320X240 Soft-Metal
  • Articulation Probes Compare
    Model JIVS-60014~74 JIVS-45022/32 JIVS-60011 JIVS-60012~32
    Prob​e Length 1M/3M(5M/7M for option) 1.5M(3M for option) 1M 1M(2M/3M for option)
    Camera Diameter 6mm 4.5mm 6mm 6mm
    Camera Head Length 24mm 13mm 10mm 23mm
    Resolution VGA(640*480) VGA(640*480) VGA(640*480) QVGA(640*480)
    Probe Material Outer Braided Stainless Steel Outer Braided ​Stainless Steel Outer Braided ​Stainless Steel Stainless steel withouter PVC
    Max Articulation Angle Full way > 110˚ Right: 180˚ / Left: 180˚ Right: 180˚ / Left:180˚ Right: 155˚ / Left: 155˚
    F.O.V. (Diagonal) 87˚ 90˚ 87˚ 56˚
    D.O.F. 1cm~10cm 1cm~10cm 1cm~6cm 1cm~6cm
    Articulation Radius (at 90˚ ) 55mm 35mm 30mm 48mm
    Articulation Radius (at max angle) 50mm 27mm 18mm 43mm
    Side View Mirror Yes (70˚/90˚/110˚available) No No Yes (70˚/90˚/110˚available)
    Functions Image Rotation /Side LED Light Boost /Image Rotation Light Boost /Image Rotation Light Boost / Image Rotation/Side LED
    There many advantage that articulating video borescopes offer.

    Most NDT applications have small, limited entrance that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corner.
    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even cost effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection device like the JKVS-60014, JKVS-60034, JKVS-60054 and JKVS-60074 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When JKVS cameras do not have to be repeatedly manipulate with the purpose of complete inspections, NDT technicians can safe valuable working time.
