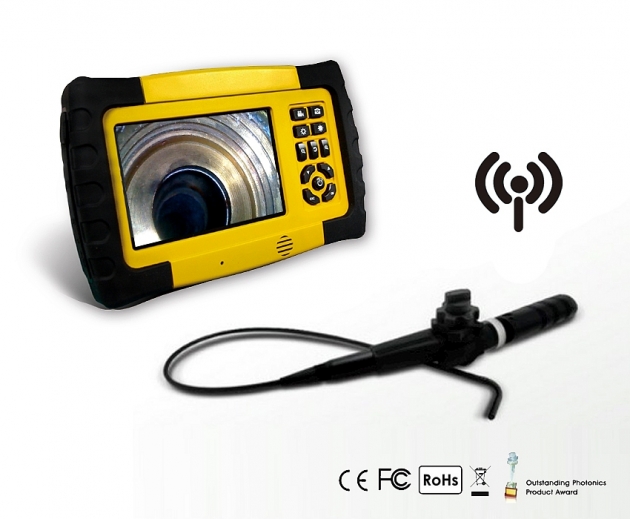

PR Series 5" Wireless Video Borescope Inspection Camera
1 / 4
  • PR Series 5" Wireless Video Borescope Inspection Camera
  • PR Series 5" Wireless Video Borescope Inspection Camera
  • PR Series 5" Wireless Video Borescope Inspection Camera
  • PR Series 5" Wireless Video Borescope Inspection Camera
PR Series 5" Wireless Video Borescope Inspection Camera
Description:
- 5" TFT LCD (640 x 480).
- Wireless Transmission.
- Snapshot & Video Recording with Audio.
- Snapshot while Recording / Replaying.
- LED brightness adjustment.
- 2X Zoom in and Image rotation .
- Photo Comparison function .
- Made in Taiwan. High Durability
- One Year Warranty.
- Ship worldwide
Download file
  • Introduction
  • Specification
  • Inspection Probe
  • Model
  • Video Borescope Key Features

    Feature
    WIRELESS TRANSMISSION
    LED BRIGHTNESS ADJUSTMENT
    JPEG FORMAT 640*480 PIXEL
    ASF FORMAT 640*480 PIXEL
    AUDIO RECORDING
    ZOOM IN & IMAGE ROTATION
    SNAP SHOT WHILE RECORDING
    PHOTO COMPARISON
    AV OUT NTSC/PAL
    USB TO PC CONNECTION



    Application
    Automobolies
    Aircraft
    Ships
    Railways
    Welding
    Architecture
    Mechanical equipment
    Gas, petroleum and chemicals
    Defense, security and surveillance
    Exploration,education and research and experiments



    Standard Accessories
    Basic Cleaning Kit
    8G SD Card
    USB Cable
    Charger
    Wireless Handle
    Video Cable

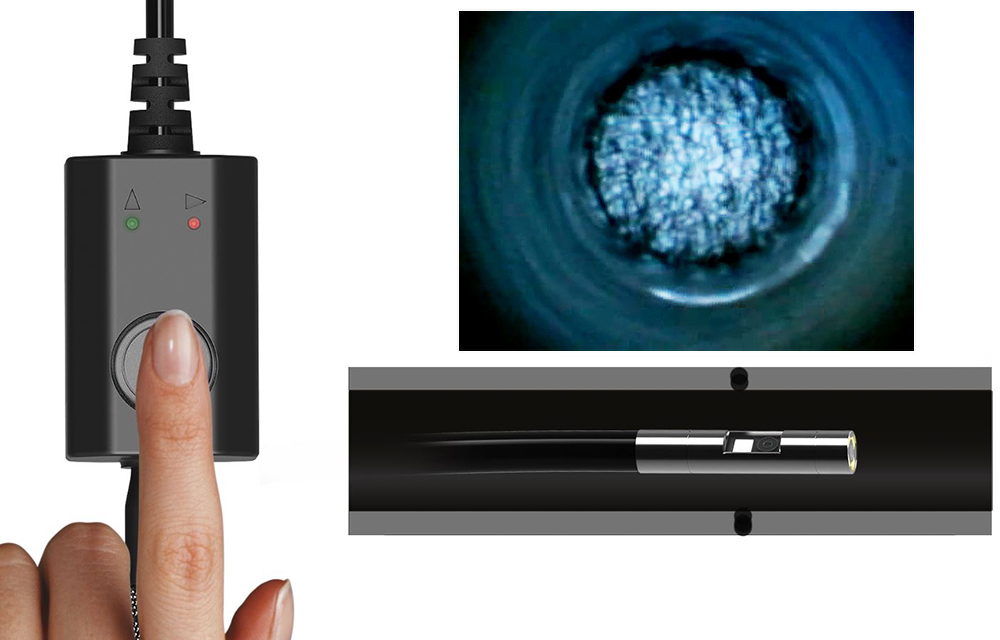

    Screen Image Rotation Ability
    Image rotaton

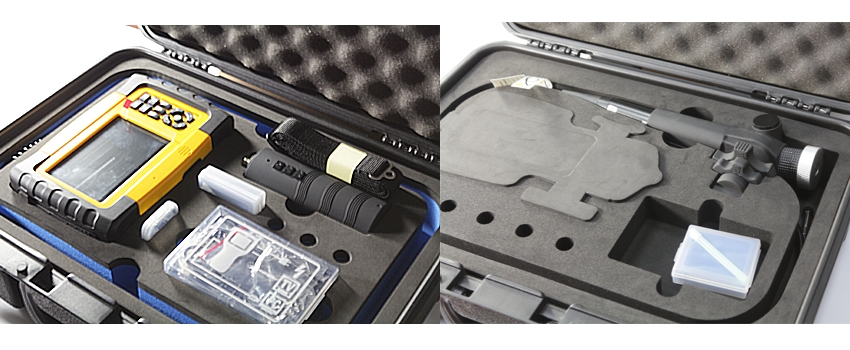

    Package

    Hot Sale Model



    PRS-39014

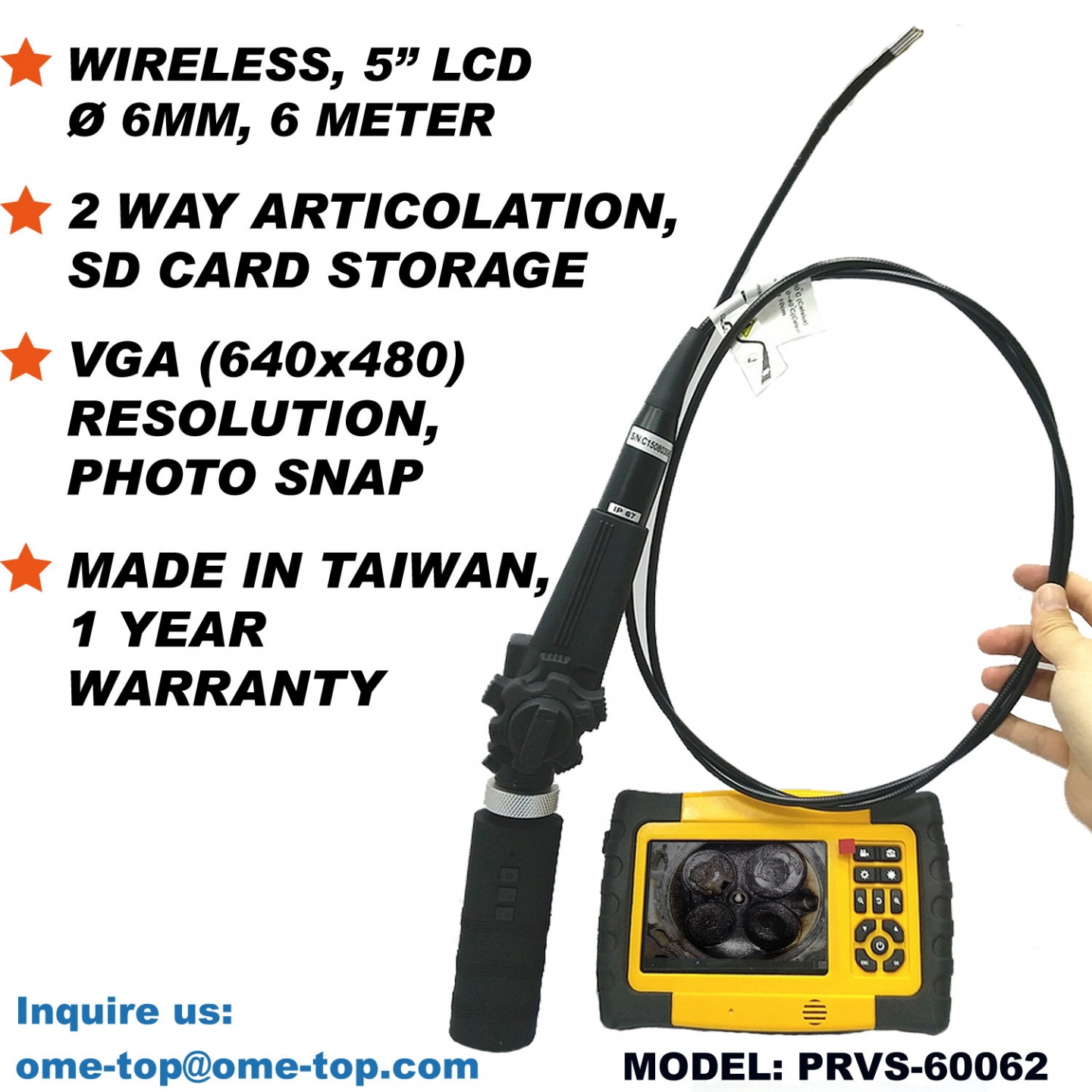

    PRVS-60062

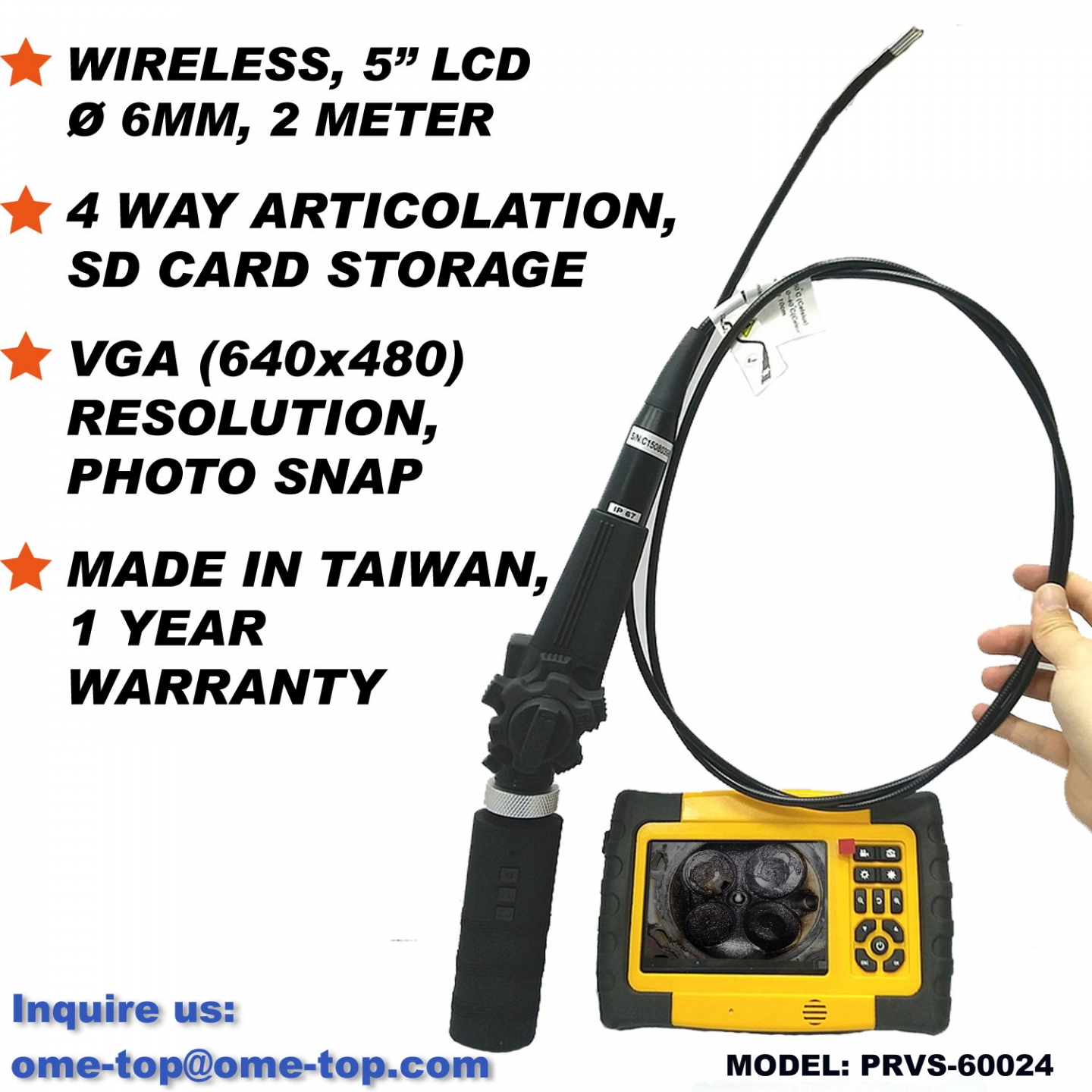

    PRVS-60024
    PRS-39032



    6 mm Dual Camera / Dual Lens in Flexible Probe 3.3FT/for Endoscope , Borescope , Videoscope

    Speed Delivery


    The PR Series 5" Wireless Video Borescope Inspection Camera is a versatile tool designed for a wide range of applications including automobiles, aircraft, ships, railways, welding, architecture, mechanical equipment, and the gas, petroleum, and chemical industries, as well as for defense, security, surveillance, exploration, education, and research. It features wireless transmission and LED brightness adjustment for optimal viewing, along with the ability to capture images in 640*480 pixel JPEG and ASF formats. The device also supports audio recording, zoom in and image rotation, and allows for snapshot taking while recording, as well as photo comparison. With AV out NTSC/PAL compatibility and USB to PC connection, it offers various output options. The camera comes equipped with a 6mm dual camera/dual lens flexible probe measuring 3.3FT, ideal for endoscopes, borescopes, and videoscopes. Standard accessories include a basic cleaning kit, 8G SD card, USB cable, charger, wireless handle, and video cable, all ensuring a comprehensive and efficient inspection experience.
  • PR5 Series Technical Specifications – Video Borescopes Overview


    Features Description
    LCD 5” TFT LCD (640 x 480)
    Snapshot JPEG ( 640 x 480 )
    Recording MPEG4 / ASF (640 X 480)
    Storage 8G SD card ( up to 32G )
    Interface Mini USB 1.1/2.0 or AV out
    Wireless Frequency RF 2.4GH -87dBm(SNR=42dB, Fmod=15kHz)
    AV output NTSC & PAL
    Working temperature -20 ~ 60℃
    Storage temperature 0 ~ 40℃
    Battery Rechargeable Li-Polymer Battery
    Languages 26 Languages:
    English / French / German / Italian / Spanish /
    Portuguese / Japanese / Traditional Chinese / Simplified Chinese /
    Danish / Dutch / Polish / Russian / Turkish / Swedish / Finnish /
    Croatian / Czech / Greek / Arabic /Korean / Malay / Hindi /
    Vietnamese / Thai / Indonesian
    Dimension 200 * 130 * 65 (mm)
    Weight 0.430 kg (0.95 lb)
  •

    2Way Articulation Probe

    2 way articulation probe that checks angles hardly to reach.

    Model: PRS39012 ~ PRVS39032
    Articulation Type : 2Way
    Tip Diameter : Ø3.9mm
    Resolution : 320 x 240 ( QVGA )
    Porbe Length : 1M / 2M / 3M

    Read More



    2Way Articulation VGA Probe

    2 way articulation probe that checks angles hardly to reach.

    Model: PRVS60012 ~ PRVS60062
    Articulation Type : 2Way
    Tip Diameter : Ø6.0mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1M / 2M / 3M / 4M / 5M / 6M
    Read More



    360° Articulation VGA Probe 6mm (P series)

    2 way articulation probe that checks angles hardly to reach.

    Model: PHVS-60024 ~ PHVS-75034
    Articulation Type : 360°
    Tip Diameter : Ø6.0mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1.5M / 3M
    Read More



    PIPE Inspection Probe

    Great for rugged and curved inspection / Stainless steel camera head / Water and dust proof / system options / Optional accessories.

    Model: PRS-2010 - PRS-3030
    Tip Diameter : Ø20mm / Ø25mm / Ø28mm / Ø30mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 10M / 30M / 50M
    Read More



    6 mm Dual Camera

    Dual Lens in Flexible Probe 3.3FT / for Endoscope , Borescope , Videoscope

    Model:  PMS-6001S / PMS-6002S / PMS-6003S / PRS-6001S / PRS -6002S / PRS-6003S
    Tip Diameter : Ø6mm
    Resolution : 320 x 240
    Porbe Length : 1M / 2M / 3M
    Light source :  4 front view; 3 side view, white LEDs, can be dimmed
    Focus : 15 ~ 60 mm
    IP rating : IP67 Waterproof up to 3.3FT (1M) / Dustproof
  • Complete Specifications of PR5 Industrial Video Borescopes

    Model Tip Dia. Length Resolution Material of Tube Articulation Features
    PRS-3901 Ø3.9mm 1M 320X240 Soft-Metal/Semi-Rigid
    PRS-3902 Ø3.9mm 2M 320X240 SM/SR
    PRS-3903 Ø3.9mm 3M 320X240 SM/SR
    PRS-3905 Ø3.9mm 5M 320X240 SM/SR
    PRS-3910 Ø3.9mm 10M 320X240 SM/SR
    PRS-6001S Ø6.0mm 1M 320X240 Flexible cable
    PRS-6002S Ø6.0mm 2M 320X240 Flexible cable
    PRS-6003S Ø6.0mm 3M 320X240 Flexible cable
    PRVS-5501 Ø5.5mm 1M 640X480 SM/SR
    PRVS-5502 Ø5.0mm 2M 640X480 SM/SR
    PRVS-5503 Ø5.5mm 3M 640X480 SM/SR
    PRVS-5505 Ø5.5mm 5M 640X480 SM/SR
    PRVS-5510 Ø5.5mm 10M 640X480 Soft-Metal
    PRVS-5520 Ø5.5mm 20M 640X480 Soft-Metal
    PRVS-5530 Ø5.5mm 30M 640X480 Soft-Metal
    PRVS-5540 Ø5.5mm 40M 640X480 Soft-Metal
    PRVS-8001 Ø8mm 1M 640X480 SM/SR High Brightness
    PRVS-8003 Ø8mm 3M 640X480 SM/SR High Brightness
    PRVS-8005 Ø8mm 5M 640X480 SM/SR High Brightness
    PRVS-8010 Ø8mm 10M 640X480 Soft-Metal High Brightness
    PRS-39012 Ø3.9mm 1M 320X240 Soft-Metal 2Way Articulation
    PRS-39022 Ø3.9mm 2M 320X240 Soft-Metal 2Way Articulation
    PRVS-60012 Ø6.0mm 1M 640X480 Soft-Metal 2Way Articulation
    PRVS-60022 Ø6.0mm 2M 640X480 Soft-Metal 2Way Articulation
    PRVS-60032 Ø6.0mm 3M 640X480 Soft-Metal 2Way Articulation
    PRVS-60042 Ø6.0mm 4M 640X480 Soft-Metal 2Way Articulation
    PRVS-60052 Ø6.0mm 5M 640X480 Soft-Metal 2Way Articulation
    PRVS-60062 Ø6.0mm 6M 640X480 Soft-Metal 2Way Articulation
    PRVS-60072 Ø6.0mm 7M 640X480 Soft-Metal 2Way Articulation
    PHVS-60024 Ø6.0mm 1.5M 640X480 Braided Stainless steel 360° Articulation
    PHVS-60034 Ø6.0mm 3M 640X480 Braided Stainless steel 360° Articulation
    PRGS-1515 Ø15mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-1530 Ø15mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-1550 Ø15mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2015 Ø20mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2030 Ø20mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2050 Ø20mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2515 Ø25mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2530 Ø25mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2550 Ø25mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2815 Ø28mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2830 Ø28mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2850 Ø28mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-3015 Ø30mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-3030 Ø30mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-3050 Ø30mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
  • Introduction

    Video Borescope Key Features

    Feature
    WIRELESS TRANSMISSION
    LED BRIGHTNESS ADJUSTMENT
    JPEG FORMAT 640*480 PIXEL
    ASF FORMAT 640*480 PIXEL
    AUDIO RECORDING
    ZOOM IN & IMAGE ROTATION
    SNAP SHOT WHILE RECORDING
    PHOTO COMPARISON
    AV OUT NTSC/PAL
    USB TO PC CONNECTION



    Application
    Automobolies
    Aircraft
    Ships
    Railways
    Welding
    Architecture
    Mechanical equipment
    Gas, petroleum and chemicals
    Defense, security and surveillance
    Exploration,education and research and experiments



    Standard Accessories
    Basic Cleaning Kit
    8G SD Card
    USB Cable
    Charger
    Wireless Handle
    Video Cable
    Screen Image Rotation Ability
    Image rotaton


    Package

    Hot Sale Model



    PRS-39014
    PRVS-60062
    PRVS-60024
    PRS-39032



    6 mm Dual Camera / Dual Lens in Flexible Probe 3.3FT/for Endoscope , Borescope , Videoscope

    Speed Delivery


    The PR Series 5" Wireless Video Borescope Inspection Camera is a versatile tool designed for a wide range of applications including automobiles, aircraft, ships, railways, welding, architecture, mechanical equipment, and the gas, petroleum, and chemical industries, as well as for defense, security, surveillance, exploration, education, and research. It features wireless transmission and LED brightness adjustment for optimal viewing, along with the ability to capture images in 640*480 pixel JPEG and ASF formats. The device also supports audio recording, zoom in and image rotation, and allows for snapshot taking while recording, as well as photo comparison. With AV out NTSC/PAL compatibility and USB to PC connection, it offers various output options. The camera comes equipped with a 6mm dual camera/dual lens flexible probe measuring 3.3FT, ideal for endoscopes, borescopes, and videoscopes. Standard accessories include a basic cleaning kit, 8G SD card, USB cable, charger, wireless handle, and video cable, all ensuring a comprehensive and efficient inspection experience.
  • Specification

    PR5 Series Technical Specifications – Video Borescopes Overview


    Features Description
    LCD 5” TFT LCD (640 x 480)
    Snapshot JPEG ( 640 x 480 )
    Recording MPEG4 / ASF (640 X 480)
    Storage 8G SD card ( up to 32G )
    Interface Mini USB 1.1/2.0 or AV out
    Wireless Frequency RF 2.4GH -87dBm(SNR=42dB, Fmod=15kHz)
    AV output NTSC & PAL
    Working temperature -20 ~ 60℃
    Storage temperature 0 ~ 40℃
    Battery Rechargeable Li-Polymer Battery
    Languages 26 Languages:
    English / French / German / Italian / Spanish /
    Portuguese / Japanese / Traditional Chinese / Simplified Chinese /
    Danish / Dutch / Polish / Russian / Turkish / Swedish / Finnish /
    Croatian / Czech / Greek / Arabic /Korean / Malay / Hindi /
    Vietnamese / Thai / Indonesian
    Dimension 200 * 130 * 65 (mm)
    Weight 0.430 kg (0.95 lb)
  • Inspection Probe



    2Way Articulation Probe

    2 way articulation probe that checks angles hardly to reach.

    Model: PRS39012 ~ PRVS39032
    Articulation Type : 2Way
    Tip Diameter : Ø3.9mm
    Resolution : 320 x 240 ( QVGA )
    Porbe Length : 1M / 2M / 3M

    Read More



    2Way Articulation VGA Probe

    2 way articulation probe that checks angles hardly to reach.

    Model: PRVS60012 ~ PRVS60062
    Articulation Type : 2Way
    Tip Diameter : Ø6.0mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1M / 2M / 3M / 4M / 5M / 6M
    Read More



    360° Articulation VGA Probe 6mm (P series)

    2 way articulation probe that checks angles hardly to reach.

    Model: PHVS-60024 ~ PHVS-75034
    Articulation Type : 360°
    Tip Diameter : Ø6.0mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 1.5M / 3M
    Read More



    PIPE Inspection Probe

    Great for rugged and curved inspection / Stainless steel camera head / Water and dust proof / system options / Optional accessories.

    Model: PRS-2010 - PRS-3030
    Tip Diameter : Ø20mm / Ø25mm / Ø28mm / Ø30mm
    Resolution : 640 x 480 ( VGA )
    Porbe Length : 10M / 30M / 50M
    Read More



    6 mm Dual Camera

    Dual Lens in Flexible Probe 3.3FT / for Endoscope , Borescope , Videoscope

    Model:  PMS-6001S / PMS-6002S / PMS-6003S / PRS-6001S / PRS -6002S / PRS-6003S
    Tip Diameter : Ø6mm
    Resolution : 320 x 240
    Porbe Length : 1M / 2M / 3M
    Light source :  4 front view; 3 side view, white LEDs, can be dimmed
    Focus : 15 ~ 60 mm
    IP rating : IP67 Waterproof up to 3.3FT (1M) / Dustproof
  • Model

    Complete Specifications of PR5 Industrial Video Borescopes

    Model Tip Dia. Length Resolution Material of Tube Articulation Features
    PRS-3901 Ø3.9mm 1M 320X240 Soft-Metal/Semi-Rigid
    PRS-3902 Ø3.9mm 2M 320X240 SM/SR
    PRS-3903 Ø3.9mm 3M 320X240 SM/SR
    PRS-3905 Ø3.9mm 5M 320X240 SM/SR
    PRS-3910 Ø3.9mm 10M 320X240 SM/SR
    PRS-6001S Ø6.0mm 1M 320X240 Flexible cable
    PRS-6002S Ø6.0mm 2M 320X240 Flexible cable
    PRS-6003S Ø6.0mm 3M 320X240 Flexible cable
    PRVS-5501 Ø5.5mm 1M 640X480 SM/SR
    PRVS-5502 Ø5.0mm 2M 640X480 SM/SR
    PRVS-5503 Ø5.5mm 3M 640X480 SM/SR
    PRVS-5505 Ø5.5mm 5M 640X480 SM/SR
    PRVS-5510 Ø5.5mm 10M 640X480 Soft-Metal
    PRVS-5520 Ø5.5mm 20M 640X480 Soft-Metal
    PRVS-5530 Ø5.5mm 30M 640X480 Soft-Metal
    PRVS-5540 Ø5.5mm 40M 640X480 Soft-Metal
    PRVS-8001 Ø8mm 1M 640X480 SM/SR High Brightness
    PRVS-8003 Ø8mm 3M 640X480 SM/SR High Brightness
    PRVS-8005 Ø8mm 5M 640X480 SM/SR High Brightness
    PRVS-8010 Ø8mm 10M 640X480 Soft-Metal High Brightness
    PRS-39012 Ø3.9mm 1M 320X240 Soft-Metal 2Way Articulation
    PRS-39022 Ø3.9mm 2M 320X240 Soft-Metal 2Way Articulation
    PRVS-60012 Ø6.0mm 1M 640X480 Soft-Metal 2Way Articulation
    PRVS-60022 Ø6.0mm 2M 640X480 Soft-Metal 2Way Articulation
    PRVS-60032 Ø6.0mm 3M 640X480 Soft-Metal 2Way Articulation
    PRVS-60042 Ø6.0mm 4M 640X480 Soft-Metal 2Way Articulation
    PRVS-60052 Ø6.0mm 5M 640X480 Soft-Metal 2Way Articulation
    PRVS-60062 Ø6.0mm 6M 640X480 Soft-Metal 2Way Articulation
    PRVS-60072 Ø6.0mm 7M 640X480 Soft-Metal 2Way Articulation
    PHVS-60024 Ø6.0mm 1.5M 640X480 Braided Stainless steel 360° Articulation
    PHVS-60034 Ø6.0mm 3M 640X480 Braided Stainless steel 360° Articulation
    PRGS-1515 Ø15mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-1530 Ø15mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-1550 Ø15mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2015 Ø20mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2030 Ø20mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2050 Ø20mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2515 Ø25mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2530 Ø25mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2550 Ø25mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2815 Ø28mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2830 Ø28mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-2850 Ø28mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-3015 Ø30mm 15M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-3030 Ø30mm 30M 640X480 Hard Soft-Metal   Pipe Inspection
    PRGS-3050 Ø30mm 50M 640X480 Hard Soft-Metal   Pipe Inspection
Related products
  • CK6 Series 6"Full HD Video Borescope Tungsten Probe 360°
    CK6 Series 6"Full HD Video Borescope Tungsten Probe 360°
  • CK5 Series 5" HD Video Borescope Tungsten Probe 360°
    CK5 Series 5" HD Video Borescope Tungsten Probe 360°
  • CT Series 5.1" HD Video Borescope Tungsten Probe 360°
    CT Series 5.1" HD Video Borescope Tungsten Probe 360°
  • DA4 Series 4.5" HD Video Borescope Tungsten Probe 360°
    DA4 Series 4.5" HD Video Borescope Tungsten Probe 360°
  • JK Series 7" Professional Video Borescope Camera 360°
    JK Series 7" Professional Video Borescope Camera 360°
  • JF Series 3.5" Handy Video Borescope Inspection Camera
    JF Series 3.5" Handy Video Borescope Inspection Camera
  • CC Series Smart Mobile Phone Borescope
    CC Series Smart Mobile Phone Borescope
  • E5S Series 5" ISP Video Borescope
    E5S Series 5" ISP Video Borescope
  • EC5 Series 5" HD Video Borescope
    EC5 Series 5" HD Video Borescope
  • PH7 Series 7" Video Borescope Tungsten Probe 360°
    PH7 Series 7" Video Borescope Tungsten Probe 360°
  • PG Series 3.5" LCD Videoscope Borescope Camera
    PG Series 3.5" LCD Videoscope Borescope Camera
  • PM Series 3.5" LCD Videoscope Borescope Camera
    PM Series 3.5" LCD Videoscope Borescope Camera
Back to the top

Contact Us

Mail toome-top@ome-top.com

  OME-TOP SYSTEMS CO., LTD

Tel : +886-2-22880699 (Rep.)
Fax : +886-2-22889191
Y. C. HUANG whatsapp : +886-958911847
No.176-1, Zhongshan 2nd Rd., Luzhou Dist, New Taipei City 247, Taiwan.
borescope inspection camera|Video Borescope|Probe of Borescope
Designed by MIRACLEWeb Design
256 bit SSL Encryption
Recommend using Chrome, Firefox, Safari latest version of the browser.
