360° Articulation VGA Probe 6mm (P series)
1 / 1
  • 360° Articulation VGA Probe 6mm (P series)
360° Articulation VGA Probe 6mm (P series)
Description:
Ø6mm 360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability, flexibility and also rusty, water and temperature resistant.

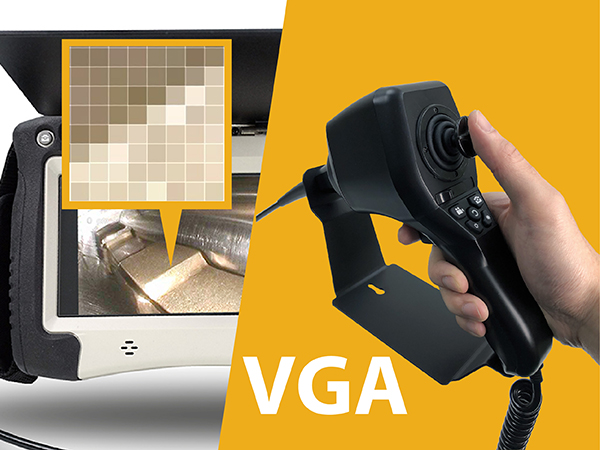

• Fast and easy joystick operation :
Provide snapshot(freeze image), light+(boost) and light- functions on the controller
• Stainless Steel Braided tube :
Durable, rusty and temperature resistant
• Full ways articulation :
Provide flexibilities in narrow space inspection
• Dust/water protection : IP67
  • Introduction
  • Specification
  • Console System
  • Model
  • 360° Full Way Articulation

    Thumb-driven joy stick provides full articulationcontrol, 360 degrees camera articulation with theon-board image and video capture capability.The mechanized joystick uses the operator input to directly control camera articulation.

    The result is smooth and accurate control of the articulating tip, with immediate response to joystick inputs.

    360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability,flexibility and also rusty, water and temperature resistant.




    eturn to previous page
  • Features Description
    Probe Type 360° Articulation (4Way)
    Tip Diamete Ø 6.0 mm
    Camera Material Stainless Steel
    F.O.V 65°
    D.O.F. Short Focus 2cm ~ 6cm / Long Focus 6cm ~ ∞
    Resolution 640 X 480 ( VGA )
    Working Temperature -20°C ~ 70°C
    Probe Material Outer Braided Stainless Steel
    Probe Length 1.5M / 3M
    Light Source LED ring
    Articulation Angle Full ways ≥ 150°
    Waterpoof IP67
  •

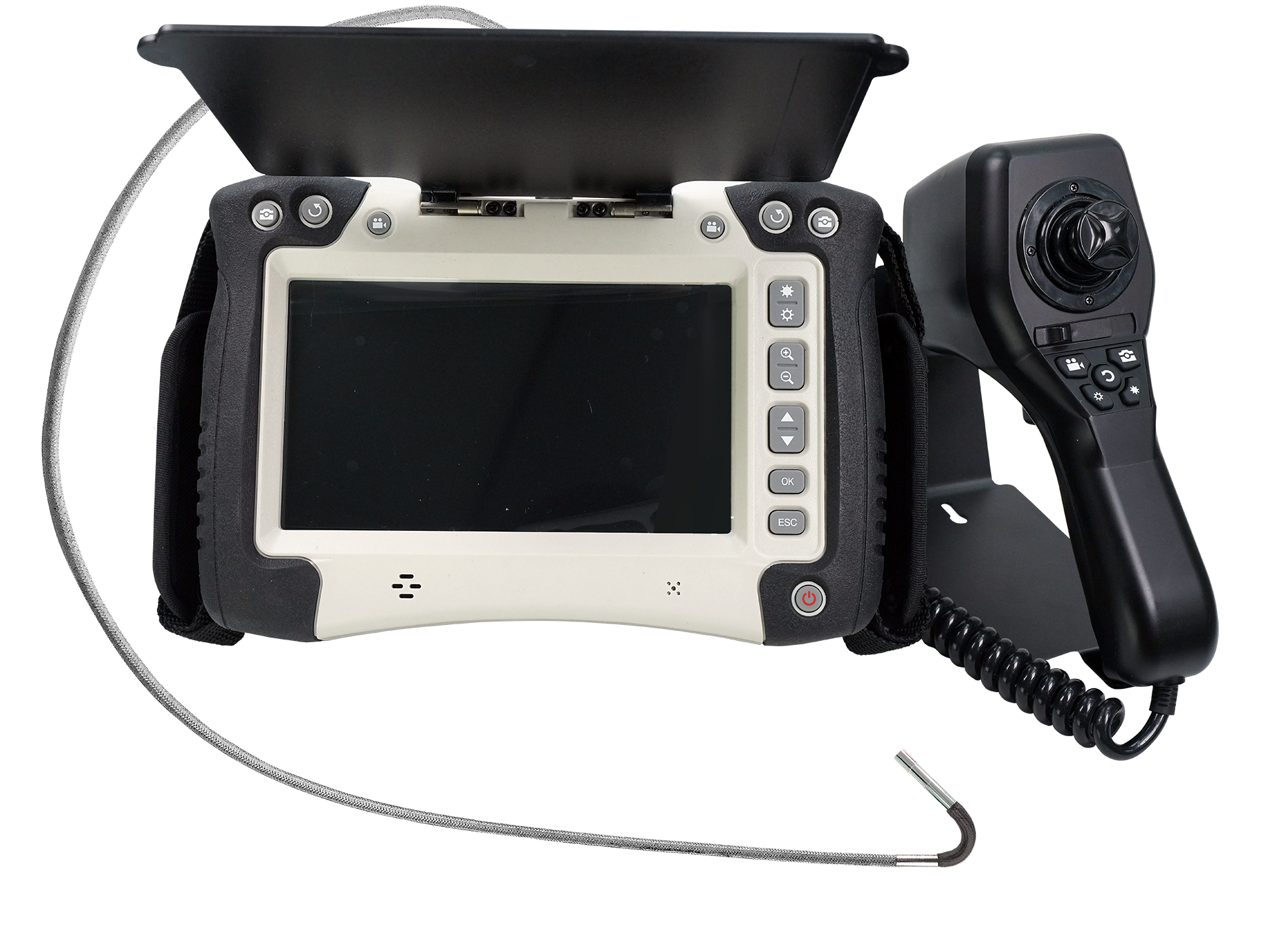

    PH7 Main Console System

    - 7" (180mm) color LCD TFT display videoscope with high definition 720 x 480 pixel resolution (640 x 480 pixel in storage).
    - Brightness adjustment of LED lamps for illuminating viewed object.
    - Digital zoom in/out, photo comparison and image rotation.
    - AV output for viewing images/video on a monitor.
    - Video and images can be transferred to a PC via the SD card or USB output.

    Read More
  • Model Tip Dia. Resolution Length Articulation
    PHVS-60024 Ø 6mm 640x480 1.5M 360˚(4Way)
    PHVS-60034 Ø 6mm 640x480 3M 360˚(4Way)


  • Introduction

    360° Full Way Articulation

    Thumb-driven joy stick provides full articulationcontrol, 360 degrees camera articulation with theon-board image and video capture capability.The mechanized joystick uses the operator input to directly control camera articulation.

    The result is smooth and accurate control of the articulating tip, with immediate response to joystick inputs.

    360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability,flexibility and also rusty, water and temperature resistant.




    eturn to previous page
  • Specification
    Features Description
    Probe Type 360° Articulation (4Way)
    Tip Diamete Ø 6.0 mm
    Camera Material Stainless Steel
    F.O.V 65°
    D.O.F. Short Focus 2cm ~ 6cm / Long Focus 6cm ~ ∞
    Resolution 640 X 480 ( VGA )
    Working Temperature -20°C ~ 70°C
    Probe Material Outer Braided Stainless Steel
    Probe Length 1.5M / 3M
    Light Source LED ring
    Articulation Angle Full ways ≥ 150°
    Waterpoof IP67
  • Console System


    PH7 Main Console System

    - 7" (180mm) color LCD TFT display videoscope with high definition 720 x 480 pixel resolution (640 x 480 pixel in storage).
    - Brightness adjustment of LED lamps for illuminating viewed object.
    - Digital zoom in/out, photo comparison and image rotation.
    - AV output for viewing images/video on a monitor.
    - Video and images can be transferred to a PC via the SD card or USB output.

    Read More
  • Model
    Model Tip Dia. Resolution Length Articulation
    PHVS-60024 Ø 6mm 640x480 1.5M 360˚(4Way)
    PHVS-60034 Ø 6mm 640x480 3M 360˚(4Way)
