• Fast and easy joystick operation :
Provide snapshot(freeze image), light+(boost) and light- functions on the controller
• Stainless Steel Braided tube :
Durable, rusty and temperature resistant
• Full ways articulation :
Provide flexibilities in narrow space inspection
• Dust/water protection : IP67
-
360° Full Way Articulation
Thumb-driven joy stick provides full articulationcontrol, 360 degrees camera articulation with theon-board image and video capture capability.The mechanized joystick uses the operator input to directly control camera articulation.
The result is smooth and accurate control of the articulating tip, with immediate response to joystick inputs.
360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability,flexibility and also rusty, water and temperature resistant.

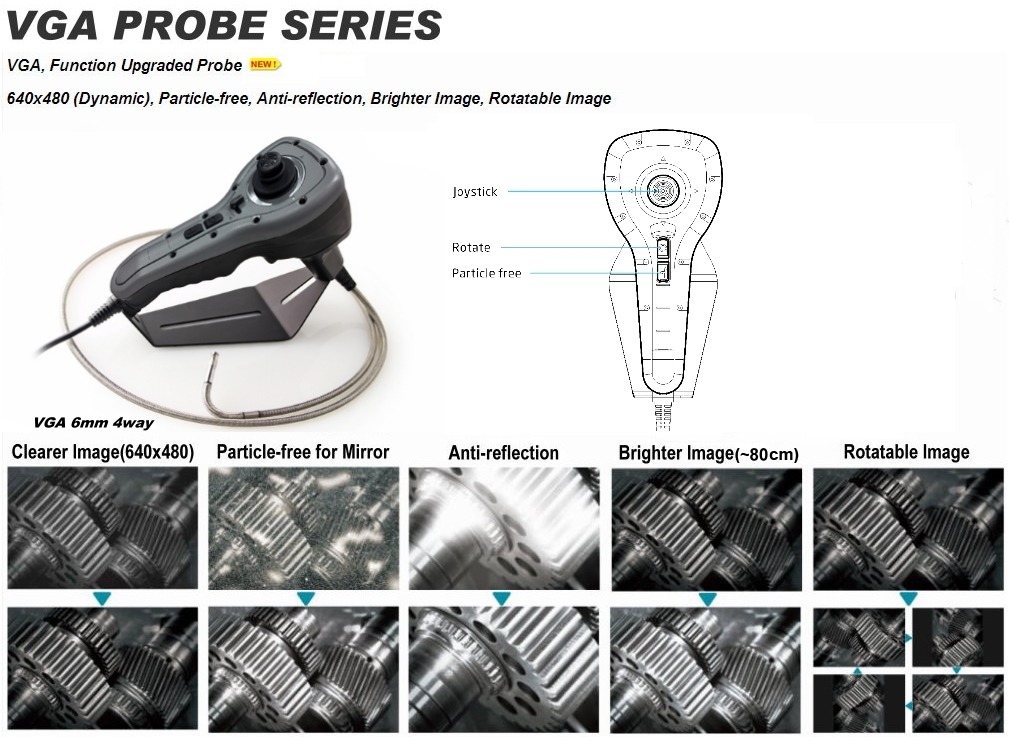

VGA PROBE SERIES
VGA,Function Upgraded Probe
640x480(Dynamic), Particle-free for Mirror, Anti-reflection,Brighter Image(~80cm),Rotatable Image
IMAGE BRIGHTNESS BOOST
-
Features Description Probe Type 360° Articulation (4Way) Tip Diamete Ø 6.0 mm Camera Length 24mm Camera Material Stainless Steel F.O.V 87° D.O.F. 10 mm ~ 100 mm Resolution 640 X 480 ( VGA ) Working Temperature -10°C ~ 60°C Probe Material Outer Braided Stainless Steel Probe Length 1M / 3M 5M / 7M Light Source Front (White LED * 3 ) / Side (White LED * 2 ) Front (Ultra-lumi Circle Front LED, 40000Lx ) / Side (White LED * 2 ) Articulation Angle Full ways ≥ 110° ( 1M ) Full ways ≥ 80° ( 1M ) Articulation Radius (at angle 90°) ≒ 55mm ( 1M ) Articulation Radius (at max angle) ≒ 50mm ( 1M ) Mirror Available (DualView, 70° / 90° / 110° View) Waterpoof IP67 -

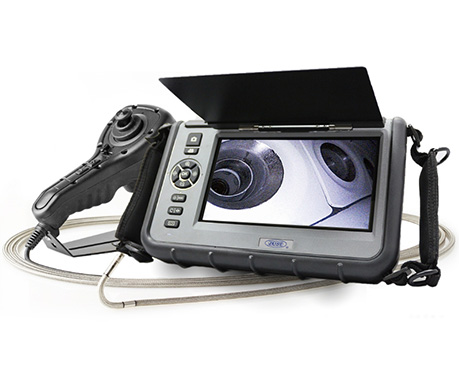

JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model Type of Probe Tip Dia. Length Material of Tube Console System JKVS-60014 360° articulation Ø 6.0mm 1M Braided Stainless steel 7" Monitor JKVS-60034 360° articulation Ø 6.0mm 3M Braided Stainless steel 7" Monitor JKVS-60054 360° articulation, Ultra-lumi LED Ø 6.0mm 5M Braided Stainless steel 7" Monitor JKVS-60074 360° articulation, Ultra-lumi LED Ø 6.0mm 7M Braided Stainless steel 7" Monitor JFVS-60014 360° articulation Ø 6.0mm 1M Braided Stainless steel 3.5" Monitor JFVS-60034 360° articulation Ø 6.0mm 3M Braided Stainless steel 3.5" Monitor JFVS-60054 360° articulation, Ultra-lumi LED Ø 6.0mm 5M Braided Stainless steel 3.5" Monitor JFVS-60074 360° articulation, Ultra-lumi LED Ø 6.0mm 7M Braided Stainless steel 3.5" Monitor -
Dual View Mirror.
Simultaneously Achieve both Front & Side View.
Side Mirror
- Angle : 70° / 90° / 110°

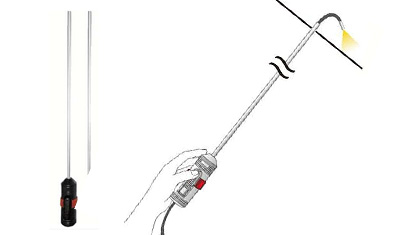

Holding Tube
Extender to inspect areas lower or higher than eye level.
- Diameter : Ø8mm
- Lengh : 990mm
-
Articulation Probes Compare
Model JIVS-60014~74 JIVS-45022/32 JIVS-60011 JIVS-60012~32 Probe Length 1M/3M(5M/7M for option) 1.5M(3M for option) 1M 1M(2M/3M for option) Camera Diameter 6mm 4.5mm 6mm 6mm Camera Head Length 24mm 13mm 10mm 23mm Resolution VGA(640*480) VGA(640*480) VGA(640*480) QVGA(640*480) Probe Material Outer Braided Stainless Steel Outer Braided Stainless Steel Outer Braided Stainless Steel Stainless steel withouter PVC Max Articulation Angle Full way > 110˚ Right: 180˚ / Left: 180˚ Right: 180˚ / Left:180˚ Right: 155˚ / Left: 155˚ F.O.V. (Diagonal) 87˚ 90˚ 87˚ 56˚ D.O.F. 1cm~10cm 1cm~10cm 1cm~6cm 1cm~6cm Articulation Radius (at 90˚ ) 55mm 35mm 30mm 48mm Articulation Radius (at max angle) 50mm 27mm 18mm 43mm Side View Mirror Yes (70˚/90˚/110˚available) No No Yes (70˚/90˚/110˚available) Functions Image Rotation /Side LED Light Boost /Image Rotation Light Boost /Image Rotation Light Boost / Image Rotation/Side LED
-
Introduction
360° Full Way Articulation
Thumb-driven joy stick provides full articulationcontrol, 360 degrees camera articulation with theon-board image and video capture capability.The mechanized joystick uses the operator input to directly control camera articulation.
The result is smooth and accurate control of the articulating tip, with immediate response to joystick inputs.
360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability,flexibility and also rusty, water and temperature resistant.
VGA PROBE SERIES
VGA,Function Upgraded Probe
640x480(Dynamic), Particle-free for Mirror, Anti-reflection,Brighter Image(~80cm),Rotatable Image
IMAGE BRIGHTNESS BOOST
-
Specification
Features Description Probe Type 360° Articulation (4Way) Tip Diamete Ø 6.0 mm Camera Length 24mm Camera Material Stainless Steel F.O.V 87° D.O.F. 10 mm ~ 100 mm Resolution 640 X 480 ( VGA ) Working Temperature -10°C ~ 60°C Probe Material Outer Braided Stainless Steel Probe Length 1M / 3M 5M / 7M Light Source Front (White LED * 3 ) / Side (White LED * 2 ) Front (Ultra-lumi Circle Front LED, 40000Lx ) / Side (White LED * 2 ) Articulation Angle Full ways ≥ 110° ( 1M ) Full ways ≥ 80° ( 1M ) Articulation Radius (at angle 90°) ≒ 55mm ( 1M ) Articulation Radius (at max angle) ≒ 50mm ( 1M ) Mirror Available (DualView, 70° / 90° / 110° View) Waterpoof IP67 -
Console System
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model
Model Type of Probe Tip Dia. Length Material of Tube Console System JKVS-60014 360° articulation Ø 6.0mm 1M Braided Stainless steel 7" Monitor JKVS-60034 360° articulation Ø 6.0mm 3M Braided Stainless steel 7" Monitor JKVS-60054 360° articulation, Ultra-lumi LED Ø 6.0mm 5M Braided Stainless steel 7" Monitor JKVS-60074 360° articulation, Ultra-lumi LED Ø 6.0mm 7M Braided Stainless steel 7" Monitor JFVS-60014 360° articulation Ø 6.0mm 1M Braided Stainless steel 3.5" Monitor JFVS-60034 360° articulation Ø 6.0mm 3M Braided Stainless steel 3.5" Monitor JFVS-60054 360° articulation, Ultra-lumi LED Ø 6.0mm 5M Braided Stainless steel 3.5" Monitor JFVS-60074 360° articulation, Ultra-lumi LED Ø 6.0mm 7M Braided Stainless steel 3.5" Monitor -
Optional Accessory
Dual View Mirror.
Simultaneously Achieve both Front & Side View.
Side Mirror
- Angle : 70° / 90° / 110°
Holding Tube
Extender to inspect areas lower or higher than eye level.
- Diameter : Ø8mm
- Lengh : 990mm -
Q&AArticulation Probes Compare
Model JIVS-60014~74 JIVS-45022/32 JIVS-60011 JIVS-60012~32 Probe Length 1M/3M(5M/7M for option) 1.5M(3M for option) 1M 1M(2M/3M for option) Camera Diameter 6mm 4.5mm 6mm 6mm Camera Head Length 24mm 13mm 10mm 23mm Resolution VGA(640*480) VGA(640*480) VGA(640*480) QVGA(640*480) Probe Material Outer Braided Stainless Steel Outer Braided Stainless Steel Outer Braided Stainless Steel Stainless steel withouter PVC Max Articulation Angle Full way > 110˚ Right: 180˚ / Left: 180˚ Right: 180˚ / Left:180˚ Right: 155˚ / Left: 155˚ F.O.V. (Diagonal) 87˚ 90˚ 87˚ 56˚ D.O.F. 1cm~10cm 1cm~10cm 1cm~6cm 1cm~6cm Articulation Radius (at 90˚ ) 55mm 35mm 30mm 48mm Articulation Radius (at max angle) 50mm 27mm 18mm 43mm Side View Mirror Yes (70˚/90˚/110˚available) No No Yes (70˚/90˚/110˚available) Functions Image Rotation /Side LED Light Boost /Image Rotation Light Boost /Image Rotation Light Boost / Image Rotation/Side LED
