• Introduction

  Features

  Handheld lndustrial borescope camera

  5.5mm dual camera / 2.0 megapixels / 5.0 inch display





  5" IPS Display

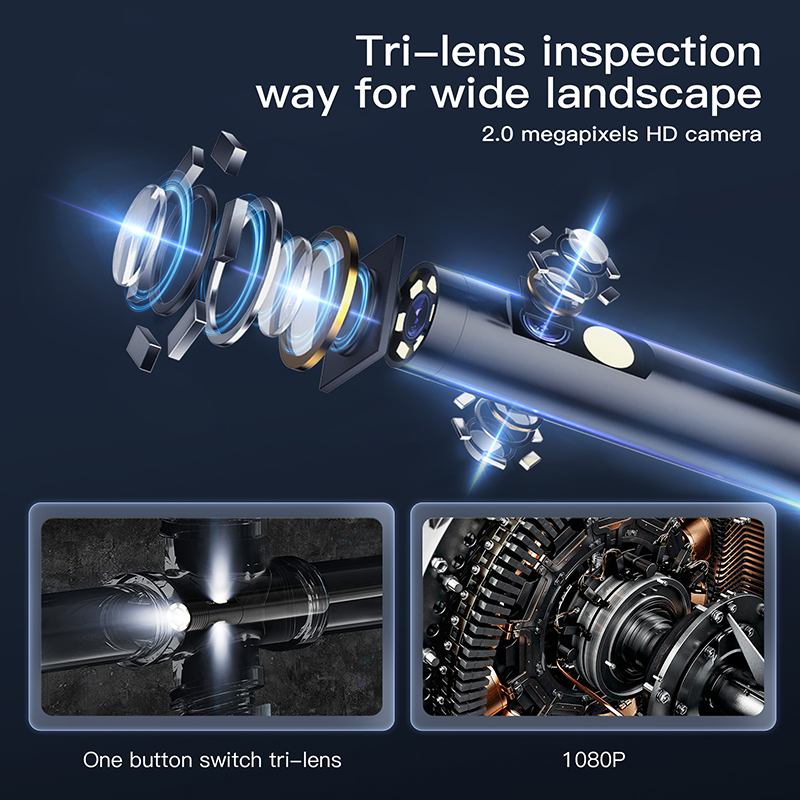

  Tri-lens inspection way for wide landscape





  5.5mm micro lens

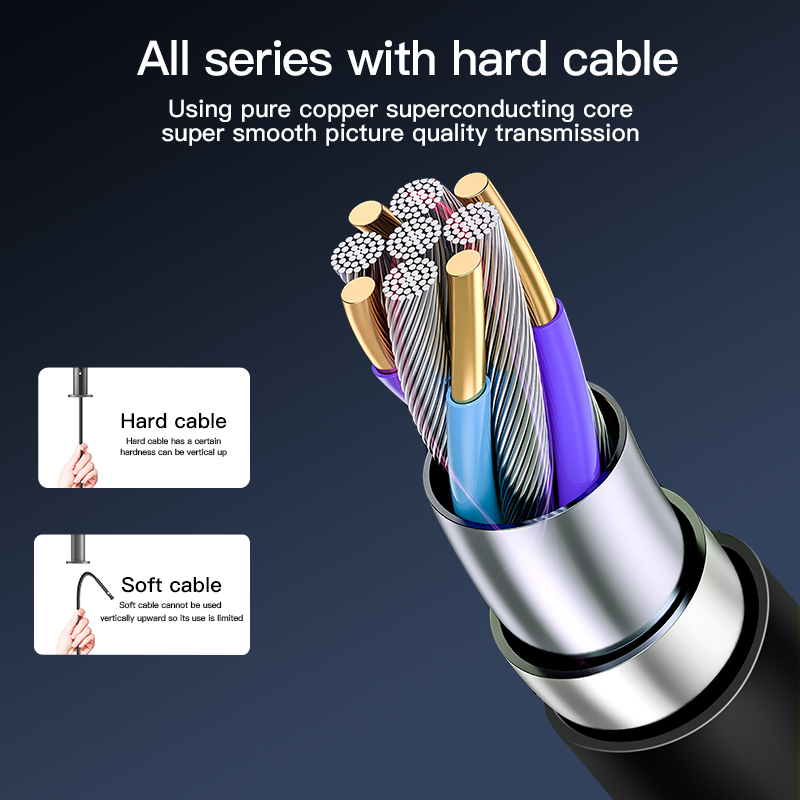

  All series with hard cable

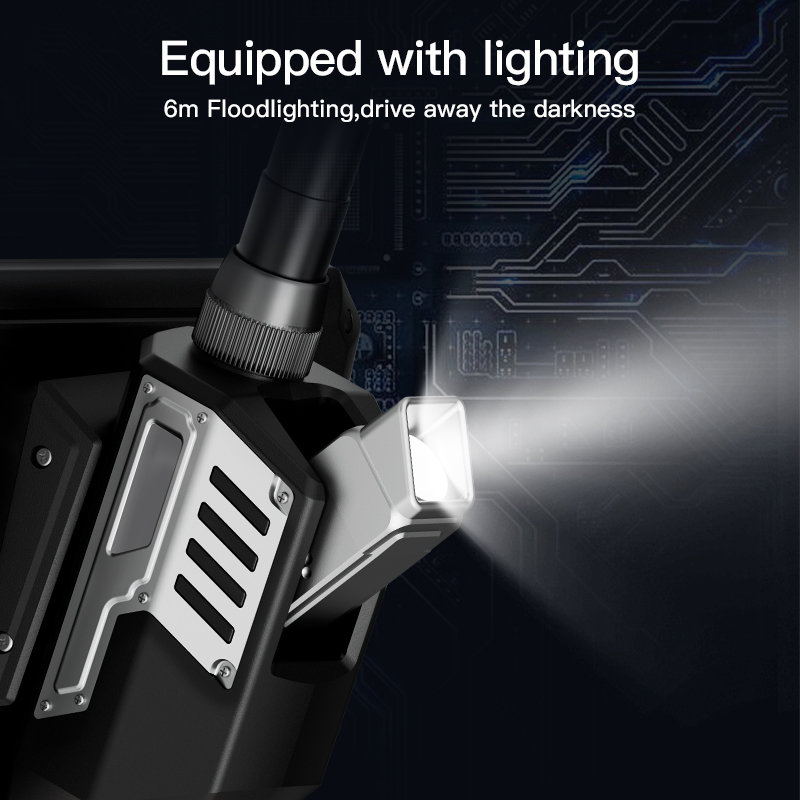

  Equipped with lighting





  6 Hours of ultra strong life




  ED5 Series 5" HD Borescope Introduction Video



  Application Scenario








• Specification

  Series	ED5-3	ED5-5	ED5-8
  Prob​e Diameter	3.9mm	5.5mm	8mm
  Viewing Direction	0° front	0° front / 90° side  Dual View	0° front / 90° side Tripie-view (1font and 2 side cameras)
  Probe Length	1M	1M/ 3M/ 5M/ 10M
  Camera Pixels	2MP
  D.O.F.	Front: 2-10cm / Side: 2-5cm
  F.O.V.	65°- 85°
  Image Resolution	1920*1080 (JPG)
  Video Resolution	1920*1080(AVI)
  Probe Material	Semi-Rigid (Snake Tube)
  Light Source	8+1 Adjustable Led Lights
  Waterproof	Camera: IP67
  Display	5" OLED screen
  Display Resolution	1280*720
  Structure	Handheld, integrated design
  Data Port	Micro USB, TF Card slot  (Support 64GB)
  Working Temperature	0℃~40℃
  Working Time	≥6h
  Battery Capacity	4400mhA
  Certification	CE / RoHS / FCC
  Box Size	31.5*21*11 CM

• Model

  ED5 Series

  Model	Display	Tip Dia.	Length	Material	Features
  ED5-3901	5"	Ø3.9 mm	1M	semi-rigid	Front Camera
  ED5-5501D	5"	Ø5.5 mm	1M	semi-rigid	Dual Cameras
  ED5-5503D	5"	Ø5.5 mm	3M	semi-rigid
  ED5-5505D	5"	Ø5.5 mm	5M	semi-rigid
  ED5-5510D	5"	Ø5.5 mm	10M	semi-rigid
  ED5-8001T	5"	Ø8.0 mm	1M	semi-rigid	Tripie-view (1font and 2 side cameras)
  ED5-8003T	5"	Ø8.0 mm	3M	semi-rigid
  ED5-8005T	5"	Ø8.0 mm	5M	semi-rigid
  ED5-8010T	5"	Ø8.0 mm	10M	semi-rigid
