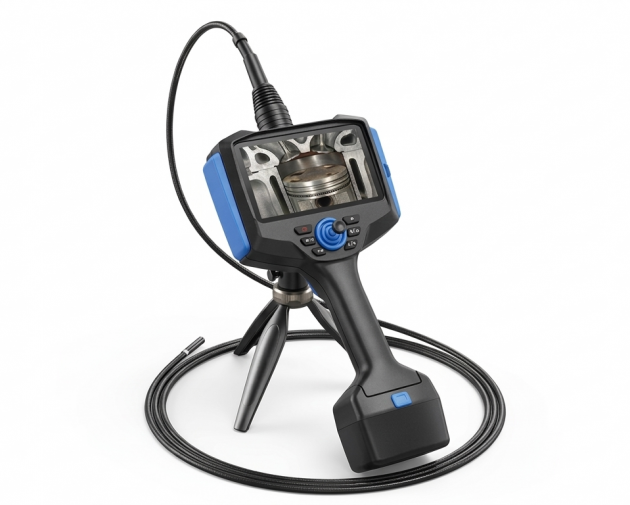

KT5 Series 5.5＂HD Video Borescope Tungsten Probe 360°
Description：
-5.5”Super Brightness HD Touch Screen – Waterproof & shockproof
-Probe Diameters 1.0–8 mm – 1.0 mm (2-way) / 1.5 mm (360°) articulation
-Ultra-bright, Low-Temperature Rear LED with fiber optic illumination
-Replaceable Tips – Direct view 0° / 90°, depth of field: 4–20 mm, 7–80 mm, 8–150 mm
-High-Resolution Imaging – 1.7 mm: 720×720 | 3 mm: 1280×720
-Photo & Video Recording – Capture, playback, and zoom
-Rugged Industrial Design – IP67 waterproof probe with durable insertion tube
-Comparative Measurement - Analog Ruler
-7X digital zoom
-Quick-release Battery
-Wifi & High temp alarm for option
Download file
-
KT5 VIDEO BOREISCOPES
5.5-inch full HD touch screen

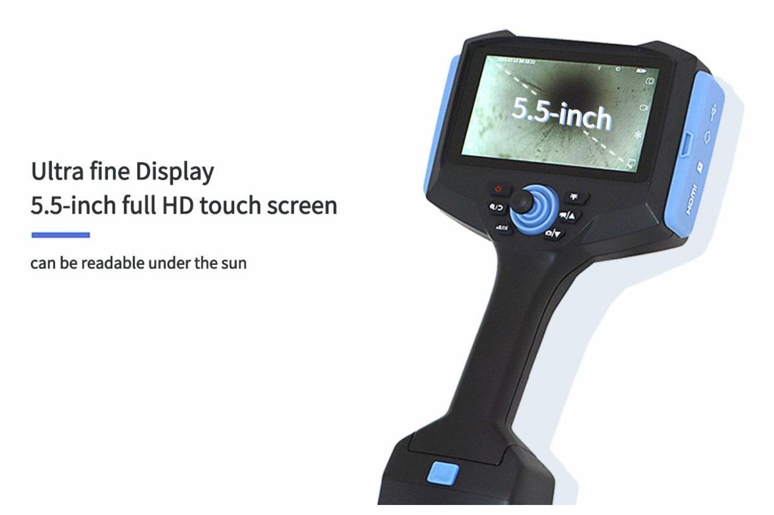

Ultra fine Display
5.5-inch full HD touch screen
can be readable under the sun

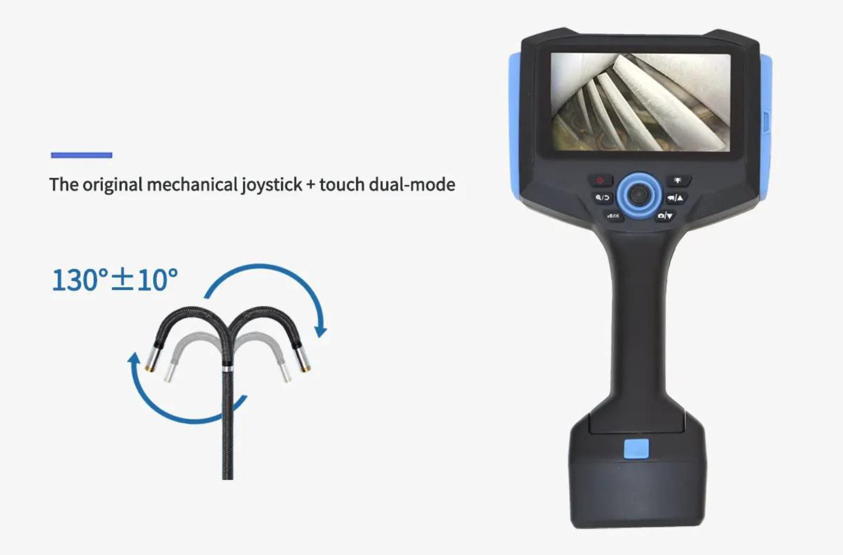

The original mechanical joystick + touch dual-mode
130°±10°
Compatible for all series probes

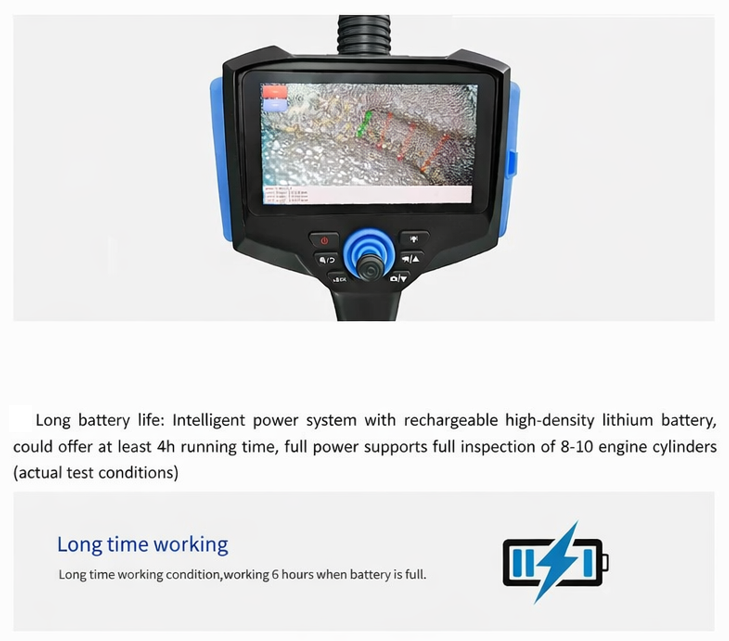

Long time working
Long battery life: Intelligent power system with rechargeable high-density lithium battery, could offer at least 4h running time, full power supports full inspection of 8-10 engine cylinders (actual test conditions)
Long time working
Long time working condition,working 6 hours when battery is full

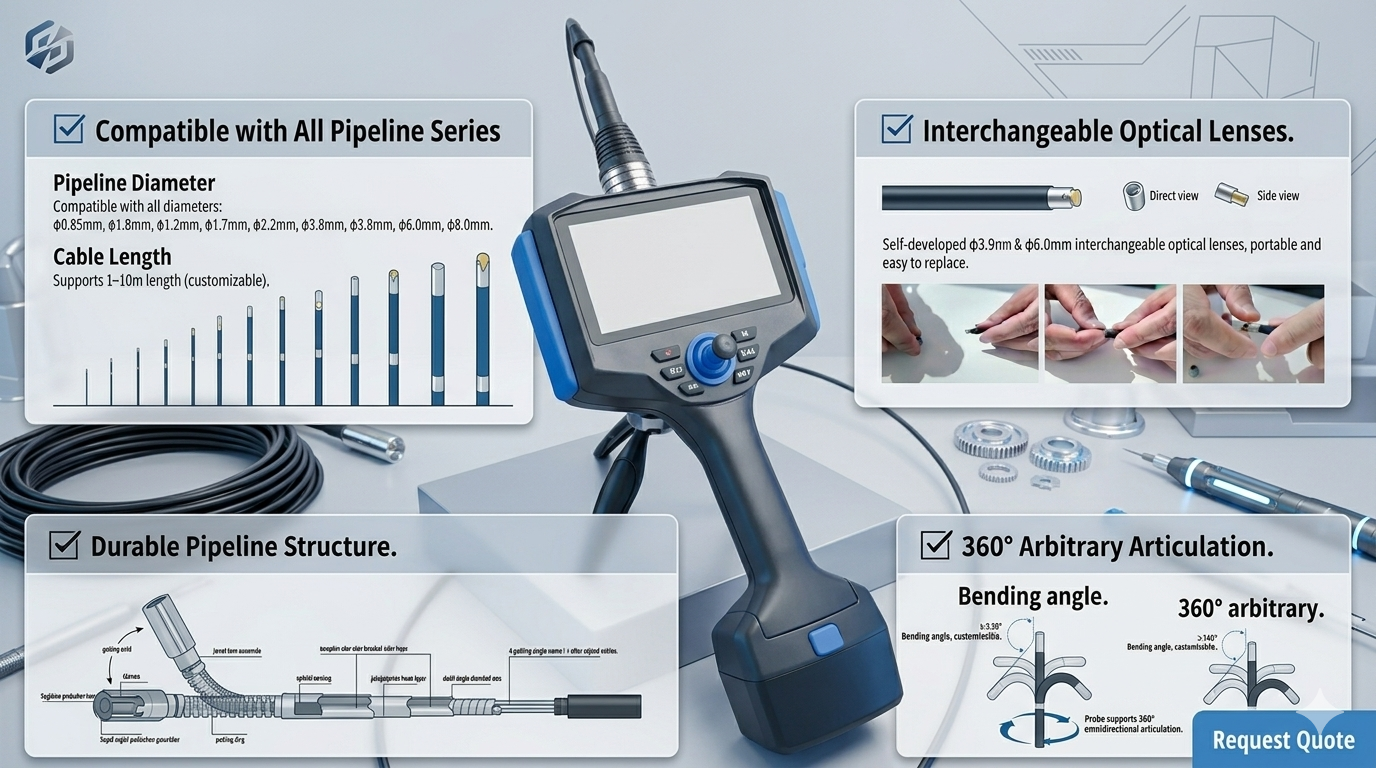

Interchangeable Lense, Cost-effective Maintenance
FEATURES A SELF-DEVELOPED INTERCHANGEABLE OPTICAL LENS SYSTEM. THE MODULAR DESIGN ELIMINATES THE NEED TO REPLACE THE ENTIRE CABLE, ALLOWING FOR QUICK SWITCHING BETWEEN STRAIGHT AND SIDE SECURE, ANTI-DISLODGEMENT AND IMPACT-RESISTANT DESIGN ENSURES DURABILITY. SUPPORTS CAMERA MODULE UPGRADES AND ITERATIONS, SIGNIFICANTLY REDUCING COSTS AND EXTENDING EQUIPMENT LIFESPAN.
360º Articulation, Multi-Angle Adaption
360° Articulation, Multi-Angle Adaption:
- Bending Angle ≥ 140° (Customizable)
- Probe can achieve 360° arbitrary-direction bending
- Probe Diameter options available

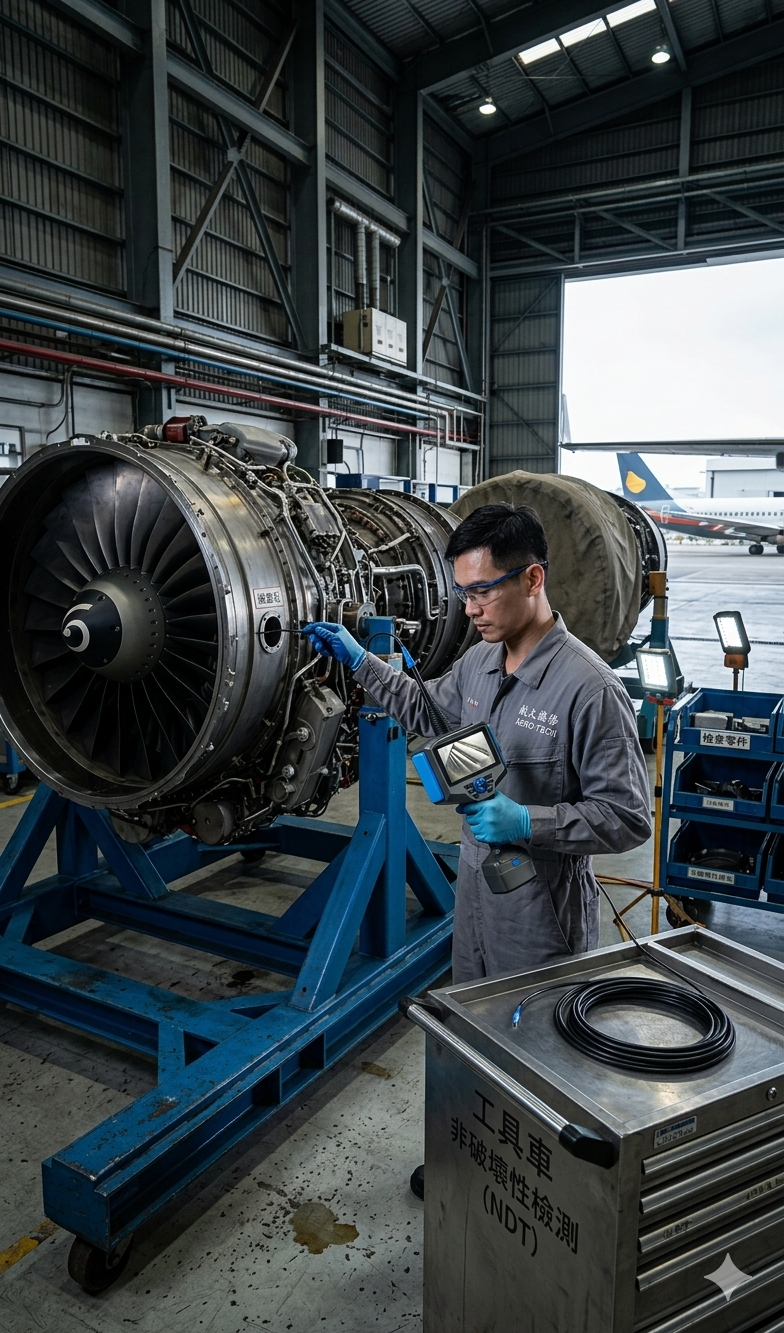

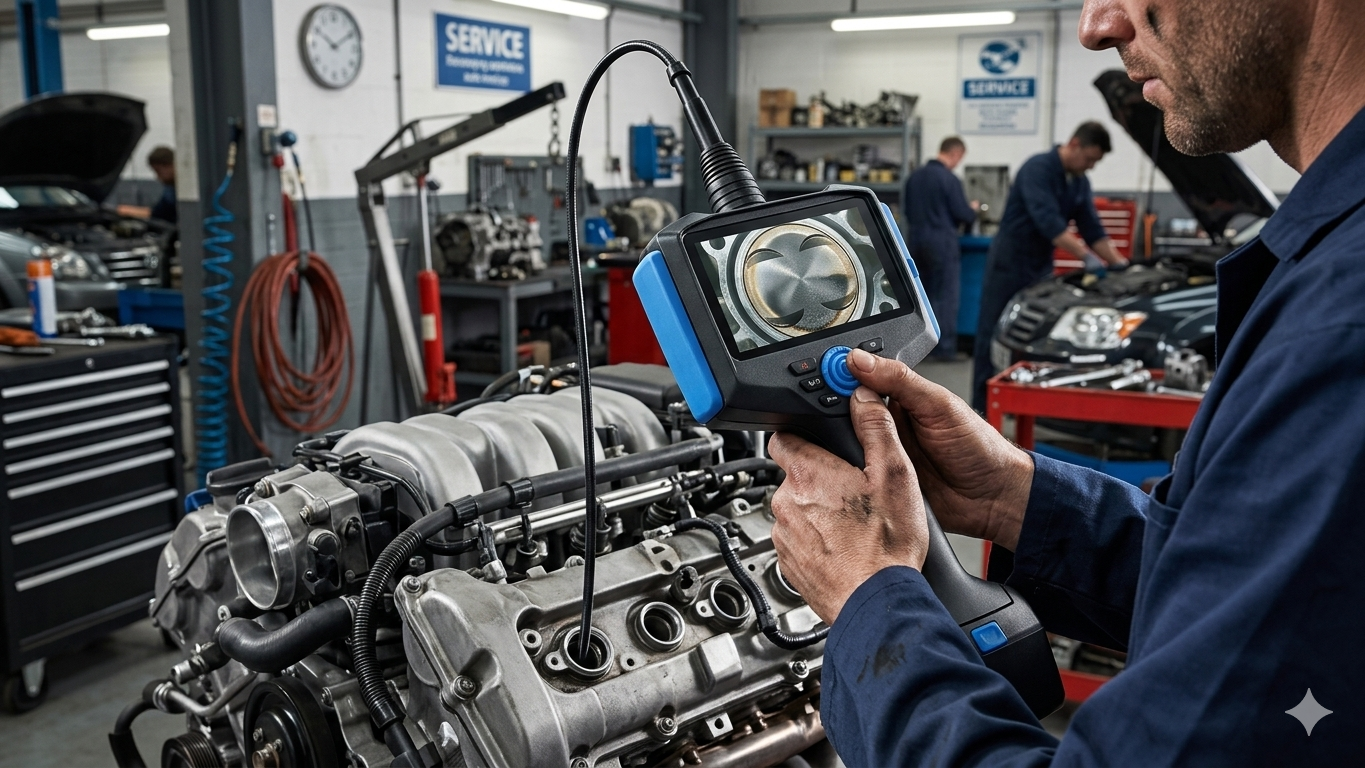

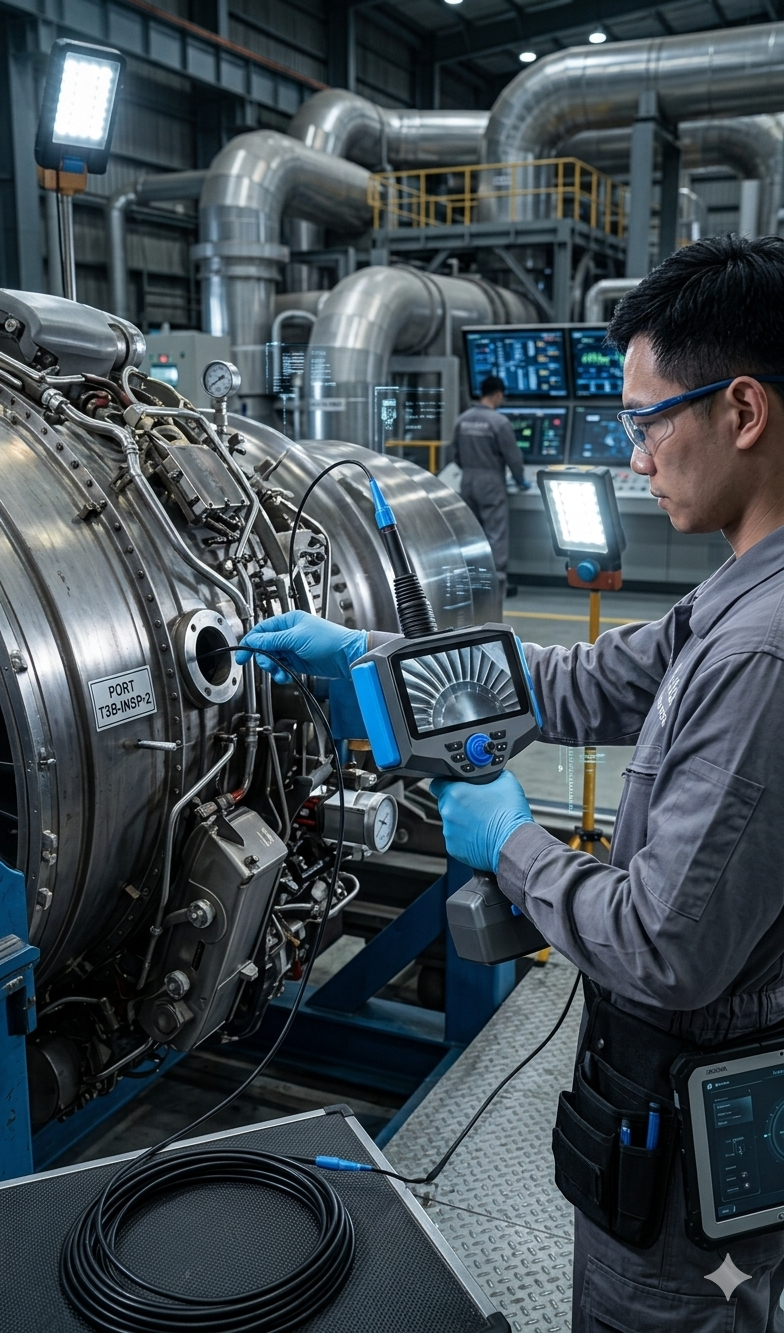

Application Scenarios

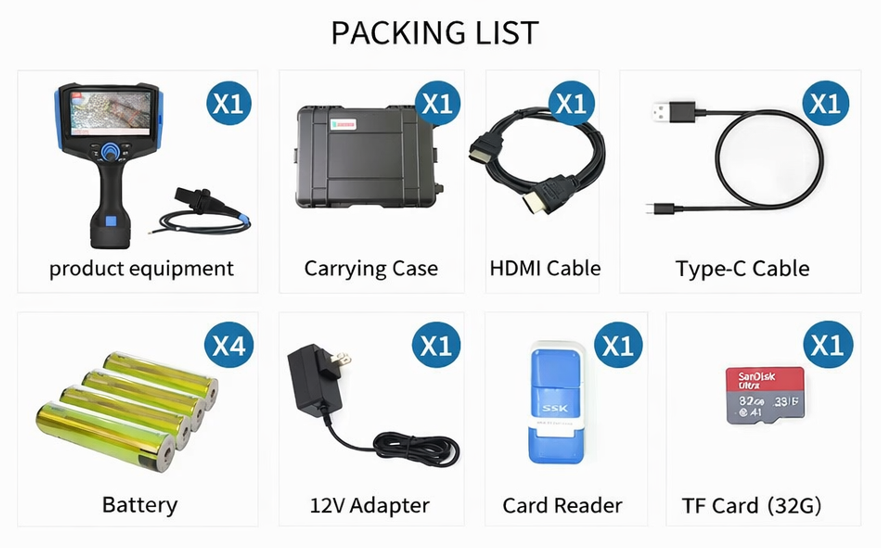

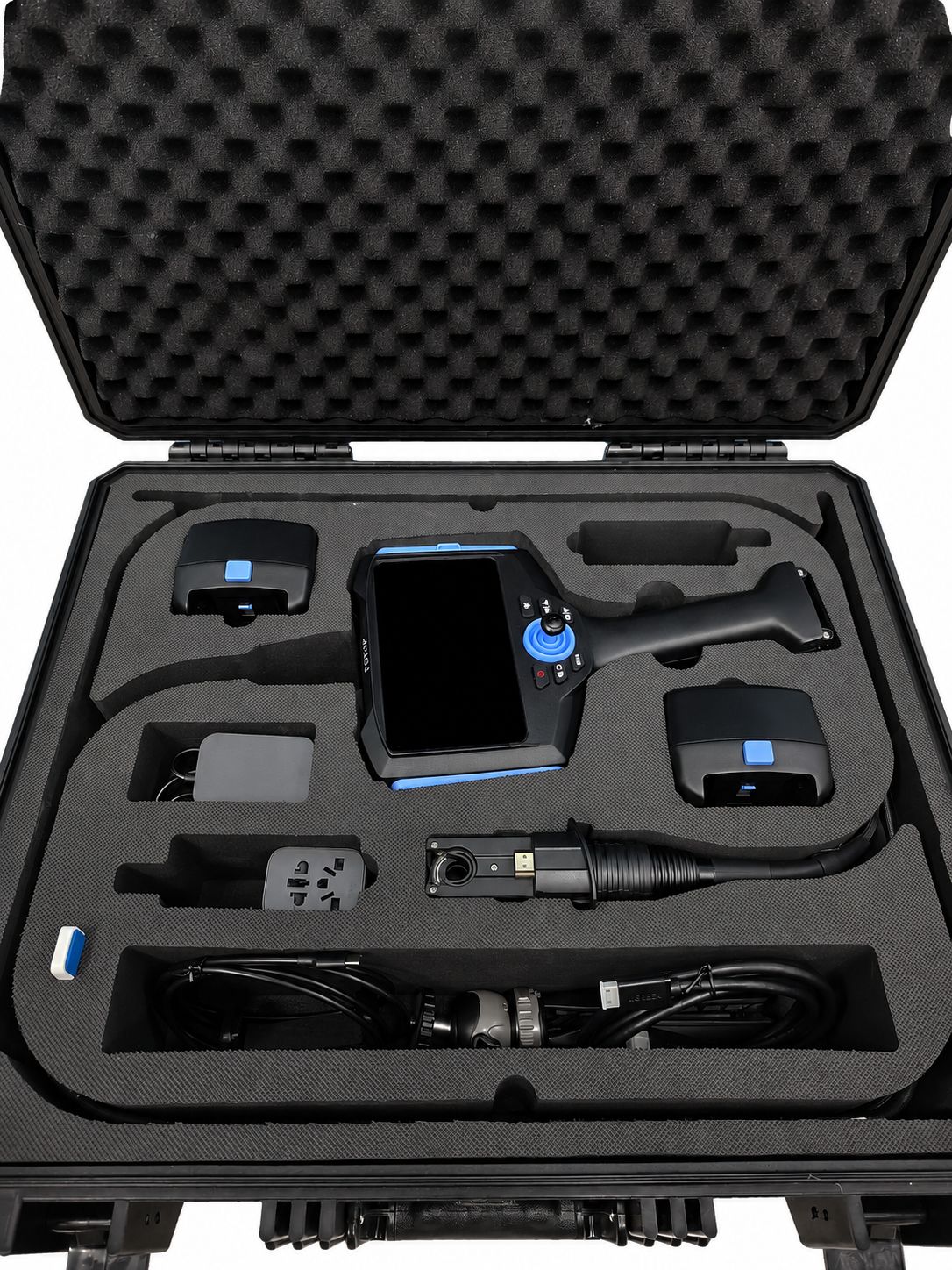

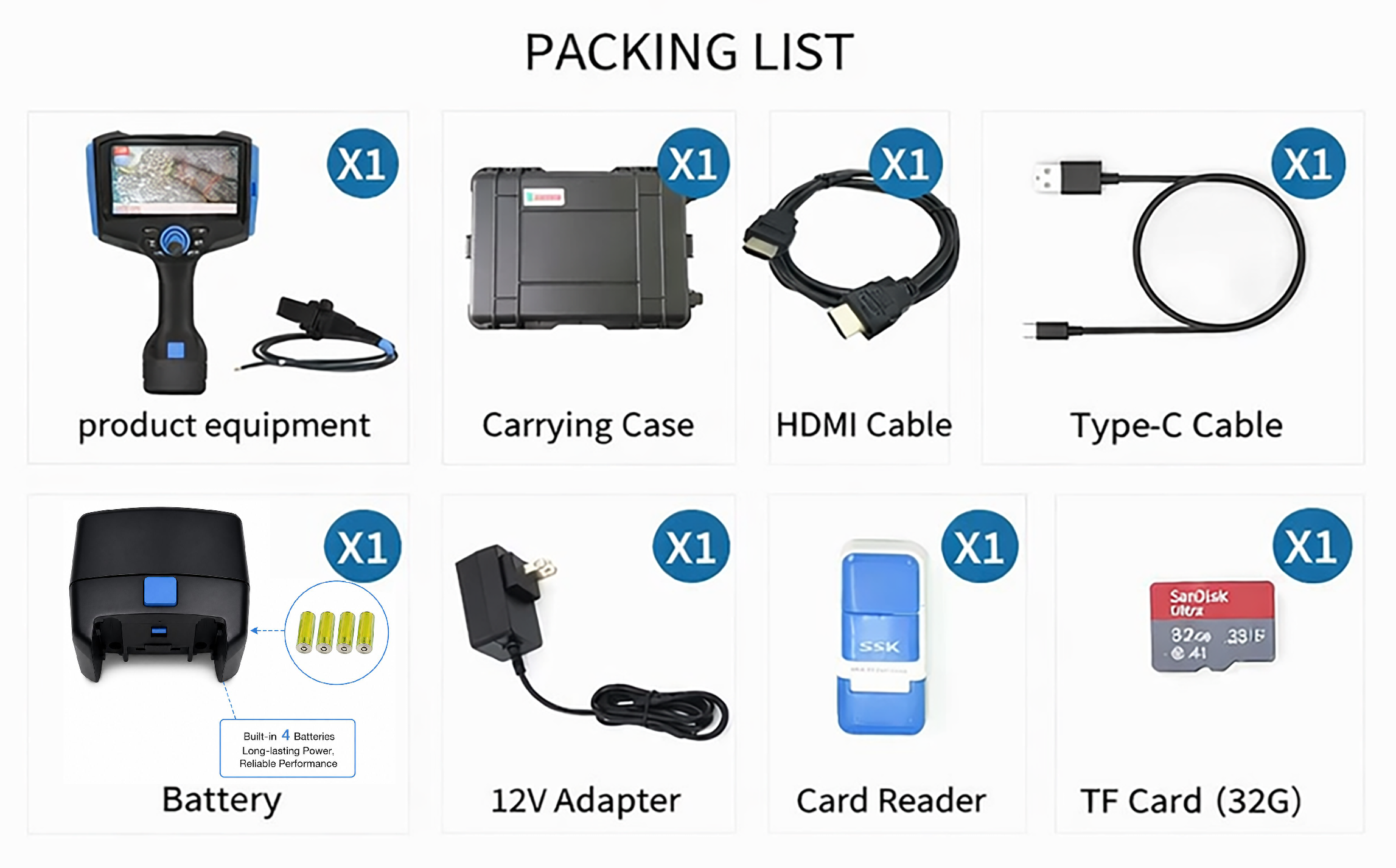

Packing List
Read More:
- What is a video borescope camera, borescope inspection camera?
- Choosing the Right Video Borescope: Specs, Use-Case Fit, and Smart Budget Decisions
- What Should You Check When Your Video Borescope Isn’t Working? Simple Checks for the Most Common Issues
- Video Borescope Engine and Intake System Diagnostics: A Comprehensive Look at Internal Component Checks
- Video Borescope Features Explained: Display Types, Wireless Options, and Storage Capabilities
- Command the View: Mastering Video Borescope Operation, Workflow, and Field Tactics
-
KT5 Series Technical Specifications – Video Borescopes Overview
Series KT5-10 KT5-12 KT5-17 KT5-22 KT5-28 KT5-30 KT5-39 KT5-60 Probe Diameter 1.0mm 1.2mm 1.7mm 2.2mm 2.8mm 3.0mm 39mm 6.0mm Viewing Direction 0° Front View 0° Front View / 90° Side View 0° Front View 0° Front View / 90° Side View
(switchable by changing the camera lens)Camera Pixels 400*400 720*720 1280*720 D.O.F 3-50mm 7-80mm 10-100mm D.O.F Side View Non 3-100mm 3-50mm Non 4-20mm/ 7-80mm/ 8-150mm F.O.V 120° 90° 120° F.O.V Side View Non 90° 100° Non 90° Screen 5.5" Touch Screen HD (1920*1080) Articulation 2-Way 360° 2-Way /360° 360° Light Source Optic fiber Front: Optic fiber
Side: Front LEDOptic fiber / Front LED Illuminance 1~7 levels adjustable light Probe Material 5 Layers of Tungsten-braided insert probe. Extreme resistance to impact and wearing. Probe Length 1m / 2m 0.5m /1m 1m 2way: 1m / 2m / 3m
360°: 1m / 2m1m / 2m / 3m 1m / 2m 1m ~ 10m Image&Video Resolution 400*400
(JPG & AVI)720*720
(JPG & AVI)1280*720
(JPG & AVI)Waterproof Probe & Camera : IP67 Language 16, including Chinese, English, Japanese, German, French, Italian, Arabic Software Function take pictures, video, audio recording Data Transmission Type-C; Wi-Fi & Bluetooth (optional) Data Port 32GB TF card, Max 128GB Storage Temperature -30℃~80℃ Working Temperature -30℃~80℃ Battery capacity 7.4 V, 6400 mAh, replaceable
>4 hours; supports DC & AC powerPower Charge AC Adapter: Input 100-240V AC 50/60Hz Standard Accessory 32GB Micro SD card, card reader, HDMI Cable, Aviation cable, English user manual, basic cleaning tools, charger (US, EU or UK type), protective carrying case. Videoscope Siez & Weight 337x183x88mm, 1.5kg Package Siez & Weight Export outer carton size: 56.5*25*37cm, GW : 9.5 Kgs -
KT5 Series (Interchangeable Display & Probe)
Front CameraSeries Tip Dia. Length Camera Res. Articulation Light type KT5-1001 Ø1.0mm 1M 400*400 Non
Rear-mounted
LED+Optic FiberKT5-10012 Ø1.0mm 1M 400*400 2-Way KT5-10022 Ø1.0mm 2M 400*400 2-Way KT5-12002 Ø1.2mm 0.5M 400*400 2-Way KT5-12012 Ø1.2mm 1M 400*400 2-Way KT5-17012 Ø1.7mm 1M 720*720 2-Way KT5-17014 Ø1.7mm 1M 720*720 360˚ KT5-22012 Ø2.2mm 1M 720*720 2-Way KT5-22022 Ø2.2mm 2M 720*720 2-Way KT5-22032 Ø2.2mm 3M 720*720 2-Way KT5-22014 Ø2.2mm 1M 720*720 360˚ KT5-22024 Ø2.2mm 2M 720*720 360˚ KT5-28014 Ø2.8mm 1M 720*720 360˚ KT5-28024 Ø2.8mm 2M 720*720 360˚ KT5-28034 Ø2.8mm 3M 720*720 360˚ KT5-30014 Ø3.0mm 1M 1280*720 360˚ KT5-30024 Ø3.0mm 2M 1280*720 360˚ KT5-39014 Ø3.9mm 1M 1280*720 360˚ KT5-39024 Ø3.9mm 2M 1280*720 360˚ KT5-39034 Ø3.9mm 3M 1280*720 360˚ KT5-39044 Ø3.9mm 4M 1280*720 360˚ KT5-39054 Ø3.9mm 5M 1280*720 360˚ KT5-39064 Ø3.9mm 6M 1280*720 360˚ KT5-39074 Ø3.9mm 7M 1280*720 360˚ KT5-39084 Ø3.9mm 8M 1280*720 360˚ KT5-60014 Ø6.0mm 1M 1280*720 360˚ KT5-60024 Ø6.0mm 2M 1280*720 360˚ KT5-60034 Ø6.0mm 3M 1280*720 360˚ KT5-60044 Ø6.0mm 4M 1280*720 360˚ KT5-60054 Ø6.0mm 5M 1280*720 360˚ KT5-60064 Ø6.0mm 6M 1280*720 360˚ KT5-60074 Ø6.0mm 7M 1280*720 360˚ KT5-60084 Ø6.0mm 8M 1280*720 360˚ KT5-60094 Ø6.0mm 9M 1280*720 360˚ KT5-60104 Ø6.0mm 10M 1280*720 360˚ Side Camera
Series Tip Dia. Length Camera Res. Articulation Light type KT5-17012L Ø1.7mm 1M 720*720 2-Way Front LED KT5-17014L Ø1.7mm 1M 720*720 360˚ Front LED KT5-22012L Ø2.2mm 1M 720*720 2-Way Front LED KT5-22022L Ø2.2mm 2M 720*720 2-Way Front LED KT5-22032L Ø2.2mm 3M 720*720 2-Way Front LED KT5-22014L Ø2.2mm 1M 720*720 360˚ Front LED KT5-22024L Ø2.2mm 2M 720*720 360˚ Front LED KT5-28014L Ø2.8mm 1M 720*720 360˚ Front LED KT5-28024L Ø2.8mm 2M 720*720 360˚ Front LED KT5-39014L Ø3.9mm 1M 1280*720 360˚
Rear-mounted
LED+Optic FiberKT5-39024L Ø3.9mm 2M 1280*720 360˚ KT5-39034L Ø3.9mm 3M 1280*720 360˚ KT5-39044L Ø3.9mm 4M 1280*720 360˚ KT5-39054L Ø3.9mm 5M 1280*720 360˚ KT5-39064L Ø3.9mm 6M 1280*720 360˚ KT5-39074L Ø3.9mm 7M 1280*720 360˚ KT5-39084L Ø3.9mm 8M 1280*720 360˚ KT5-60014L Ø6.0mm 1M 1280*720 360˚ KT5-60024L Ø6.0mm 2M 1280*720 360˚ KT5-60034L Ø6.0mm 3M 1280*720 360˚ KT5-60044L Ø6.0mm 4M 1280*720 360˚ KT5-60054L Ø6.0mm 5M 1280*720 360˚ KT5-60064L Ø6.0mm 6M 1280*720 360˚ KT5-60074L Ø6.0mm 7M 1280*720 360˚ KT5-60084L Ø6.0mm 8M 1280*720 360˚ KT5-60094L Ø6.0mm 9M 1280*720 360˚ KT5-60104L Ø6.0mm 10M 1280*720 360˚ Front view & Side view (switchable by changing the camera lens)
The complete system price includes both front-view and side-view interchangeable lenses. If only one lens is required, please deduct the price of the unused lens listed below.Series Tip Dia. Length Camera Res. Articulation Light type KT5-39014FS Ø3.9mm 1M 1280*720 360˚
Rear-mounted
LED+Optic FiberKT5-39024FS Ø3.9mm 2M 1280*720 360˚ KT5-39034FS Ø3.9mm 3M 1280*720 360˚ KT5-39044FS Ø3.9mm 4M 1280*720 360˚ KT5-39054FS Ø3.9mm 5M 1280*720 360˚ KT5-39064FS Ø3.9mm 6M 1280*720 360˚ KT5-39074FS Ø3.9mm 7M 1280*720 360˚ KT5-39084FS Ø3.9mm 8M 1280*720 360˚ KT5-60014FS Ø6.0mm 1M 1280*720 360˚ KT5-60024FS Ø6.0mm 2M 1280*720 360˚ KT5-60034FS Ø6.0mm 3M 1280*720 360˚ KT5-60044FS Ø6.0mm 4M 1280*720 360˚ KT5-60054FS Ø6.0mm 5M 1280*720 360˚ KT5-60064FS Ø6.0mm 6M 1280*720 360˚ KT5-60074FS Ø6.0mm 7M 1280*720 360˚ KT5-60084FS Ø6.0mm 8M 1280*720 360˚
You can purchase additional lenses based on your requirements, or deduct the price of unnecessary lens from the above total system price.
Interchangeable Camera Lenses For KT5Series Tip Dia. Direction Camera Res. Light type KT5 F-LENS 39 Ø3.9mm Front 1280*720
Rear-mounted
LED+Optic FiberKT5 S-LENS 39 Ø3.9mm Side 1280*720 KT5 F-LENS 60 Ø6.0mm Front 1280*720 KT5 S-LENS 60 Ø6.0mm Side 1280*720
-
Introduction
KT5 VIDEO BOREISCOPES
5.5-inch full HD touch screen
Ultra fine Display
5.5-inch full HD touch screen
can be readable under the sun
The original mechanical joystick + touch dual-mode
130°±10°
Compatible for all series probes
Long time working
Long battery life: Intelligent power system with rechargeable high-density lithium battery, could offer at least 4h running time, full power supports full inspection of 8-10 engine cylinders (actual test conditions)
Long time working
Long time working condition,working 6 hours when battery is full
Interchangeable Lense, Cost-effective Maintenance
FEATURES A SELF-DEVELOPED INTERCHANGEABLE OPTICAL LENS SYSTEM. THE MODULAR DESIGN ELIMINATES THE NEED TO REPLACE THE ENTIRE CABLE, ALLOWING FOR QUICK SWITCHING BETWEEN STRAIGHT AND SIDE SECURE, ANTI-DISLODGEMENT AND IMPACT-RESISTANT DESIGN ENSURES DURABILITY. SUPPORTS CAMERA MODULE UPGRADES AND ITERATIONS, SIGNIFICANTLY REDUCING COSTS AND EXTENDING EQUIPMENT LIFESPAN.
360º Articulation, Multi-Angle Adaption
360° Articulation, Multi-Angle Adaption:
- Bending Angle ≥ 140° (Customizable)
- Probe can achieve 360° arbitrary-direction bending
- Probe Diameter options available
Application Scenarios
Packing List
Read More:
- What is a video borescope camera, borescope inspection camera?
- Choosing the Right Video Borescope: Specs, Use-Case Fit, and Smart Budget Decisions
- What Should You Check When Your Video Borescope Isn’t Working? Simple Checks for the Most Common Issues
- Video Borescope Engine and Intake System Diagnostics: A Comprehensive Look at Internal Component Checks
- Video Borescope Features Explained: Display Types, Wireless Options, and Storage Capabilities
- Command the View: Mastering Video Borescope Operation, Workflow, and Field Tactics
-
Specification
KT5 Series Technical Specifications – Video Borescopes Overview
Series KT5-10 KT5-12 KT5-17 KT5-22 KT5-28 KT5-30 KT5-39 KT5-60 Probe Diameter 1.0mm 1.2mm 1.7mm 2.2mm 2.8mm 3.0mm 39mm 6.0mm Viewing Direction 0° Front View 0° Front View / 90° Side View 0° Front View 0° Front View / 90° Side View
(switchable by changing the camera lens)Camera Pixels 400*400 720*720 1280*720 D.O.F 3-50mm 7-80mm 10-100mm D.O.F Side View Non 3-100mm 3-50mm Non 4-20mm/ 7-80mm/ 8-150mm F.O.V 120° 90° 120° F.O.V Side View Non 90° 100° Non 90° Screen 5.5" Touch Screen HD (1920*1080) Articulation 2-Way 360° 2-Way /360° 360° Light Source Optic fiber Front: Optic fiber
Side: Front LEDOptic fiber / Front LED Illuminance 1~7 levels adjustable light Probe Material 5 Layers of Tungsten-braided insert probe. Extreme resistance to impact and wearing. Probe Length 1m / 2m 0.5m /1m 1m 2way: 1m / 2m / 3m
360°: 1m / 2m1m / 2m / 3m 1m / 2m 1m ~ 10m Image&Video Resolution 400*400
(JPG & AVI)720*720
(JPG & AVI)1280*720
(JPG & AVI)Waterproof Probe & Camera : IP67 Language 16, including Chinese, English, Japanese, German, French, Italian, Arabic Software Function take pictures, video, audio recording Data Transmission Type-C; Wi-Fi & Bluetooth (optional) Data Port 32GB TF card, Max 128GB Storage Temperature -30℃~80℃ Working Temperature -30℃~80℃ Battery capacity 7.4 V, 6400 mAh, replaceable
>4 hours; supports DC & AC powerPower Charge AC Adapter: Input 100-240V AC 50/60Hz Standard Accessory 32GB Micro SD card, card reader, HDMI Cable, Aviation cable, English user manual, basic cleaning tools, charger (US, EU or UK type), protective carrying case. Videoscope Siez & Weight 337x183x88mm, 1.5kg Package Siez & Weight Export outer carton size: 56.5*25*37cm, GW : 9.5 Kgs -
Model
KT5 Series (Interchangeable Display & Probe)
Front CameraSeries Tip Dia. Length Camera Res. Articulation Light type KT5-1001 Ø1.0mm 1M 400*400 Non
Rear-mounted
LED+Optic FiberKT5-10012 Ø1.0mm 1M 400*400 2-Way KT5-10022 Ø1.0mm 2M 400*400 2-Way KT5-12002 Ø1.2mm 0.5M 400*400 2-Way KT5-12012 Ø1.2mm 1M 400*400 2-Way KT5-17012 Ø1.7mm 1M 720*720 2-Way KT5-17014 Ø1.7mm 1M 720*720 360˚ KT5-22012 Ø2.2mm 1M 720*720 2-Way KT5-22022 Ø2.2mm 2M 720*720 2-Way KT5-22032 Ø2.2mm 3M 720*720 2-Way KT5-22014 Ø2.2mm 1M 720*720 360˚ KT5-22024 Ø2.2mm 2M 720*720 360˚ KT5-28014 Ø2.8mm 1M 720*720 360˚ KT5-28024 Ø2.8mm 2M 720*720 360˚ KT5-28034 Ø2.8mm 3M 720*720 360˚ KT5-30014 Ø3.0mm 1M 1280*720 360˚ KT5-30024 Ø3.0mm 2M 1280*720 360˚ KT5-39014 Ø3.9mm 1M 1280*720 360˚ KT5-39024 Ø3.9mm 2M 1280*720 360˚ KT5-39034 Ø3.9mm 3M 1280*720 360˚ KT5-39044 Ø3.9mm 4M 1280*720 360˚ KT5-39054 Ø3.9mm 5M 1280*720 360˚ KT5-39064 Ø3.9mm 6M 1280*720 360˚ KT5-39074 Ø3.9mm 7M 1280*720 360˚ KT5-39084 Ø3.9mm 8M 1280*720 360˚ KT5-60014 Ø6.0mm 1M 1280*720 360˚ KT5-60024 Ø6.0mm 2M 1280*720 360˚ KT5-60034 Ø6.0mm 3M 1280*720 360˚ KT5-60044 Ø6.0mm 4M 1280*720 360˚ KT5-60054 Ø6.0mm 5M 1280*720 360˚ KT5-60064 Ø6.0mm 6M 1280*720 360˚ KT5-60074 Ø6.0mm 7M 1280*720 360˚ KT5-60084 Ø6.0mm 8M 1280*720 360˚ KT5-60094 Ø6.0mm 9M 1280*720 360˚ KT5-60104 Ø6.0mm 10M 1280*720 360˚ Side Camera
Series Tip Dia. Length Camera Res. Articulation Light type KT5-17012L Ø1.7mm 1M 720*720 2-Way Front LED KT5-17014L Ø1.7mm 1M 720*720 360˚ Front LED KT5-22012L Ø2.2mm 1M 720*720 2-Way Front LED KT5-22022L Ø2.2mm 2M 720*720 2-Way Front LED KT5-22032L Ø2.2mm 3M 720*720 2-Way Front LED KT5-22014L Ø2.2mm 1M 720*720 360˚ Front LED KT5-22024L Ø2.2mm 2M 720*720 360˚ Front LED KT5-28014L Ø2.8mm 1M 720*720 360˚ Front LED KT5-28024L Ø2.8mm 2M 720*720 360˚ Front LED KT5-39014L Ø3.9mm 1M 1280*720 360˚
Rear-mounted
LED+Optic FiberKT5-39024L Ø3.9mm 2M 1280*720 360˚ KT5-39034L Ø3.9mm 3M 1280*720 360˚ KT5-39044L Ø3.9mm 4M 1280*720 360˚ KT5-39054L Ø3.9mm 5M 1280*720 360˚ KT5-39064L Ø3.9mm 6M 1280*720 360˚ KT5-39074L Ø3.9mm 7M 1280*720 360˚ KT5-39084L Ø3.9mm 8M 1280*720 360˚ KT5-60014L Ø6.0mm 1M 1280*720 360˚ KT5-60024L Ø6.0mm 2M 1280*720 360˚ KT5-60034L Ø6.0mm 3M 1280*720 360˚ KT5-60044L Ø6.0mm 4M 1280*720 360˚ KT5-60054L Ø6.0mm 5M 1280*720 360˚ KT5-60064L Ø6.0mm 6M 1280*720 360˚ KT5-60074L Ø6.0mm 7M 1280*720 360˚ KT5-60084L Ø6.0mm 8M 1280*720 360˚ KT5-60094L Ø6.0mm 9M 1280*720 360˚ KT5-60104L Ø6.0mm 10M 1280*720 360˚ Front view & Side view (switchable by changing the camera lens)
The complete system price includes both front-view and side-view interchangeable lenses. If only one lens is required, please deduct the price of the unused lens listed below.Series Tip Dia. Length Camera Res. Articulation Light type KT5-39014FS Ø3.9mm 1M 1280*720 360˚
Rear-mounted
LED+Optic FiberKT5-39024FS Ø3.9mm 2M 1280*720 360˚ KT5-39034FS Ø3.9mm 3M 1280*720 360˚ KT5-39044FS Ø3.9mm 4M 1280*720 360˚ KT5-39054FS Ø3.9mm 5M 1280*720 360˚ KT5-39064FS Ø3.9mm 6M 1280*720 360˚ KT5-39074FS Ø3.9mm 7M 1280*720 360˚ KT5-39084FS Ø3.9mm 8M 1280*720 360˚ KT5-60014FS Ø6.0mm 1M 1280*720 360˚ KT5-60024FS Ø6.0mm 2M 1280*720 360˚ KT5-60034FS Ø6.0mm 3M 1280*720 360˚ KT5-60044FS Ø6.0mm 4M 1280*720 360˚ KT5-60054FS Ø6.0mm 5M 1280*720 360˚ KT5-60064FS Ø6.0mm 6M 1280*720 360˚ KT5-60074FS Ø6.0mm 7M 1280*720 360˚ KT5-60084FS Ø6.0mm 8M 1280*720 360˚
You can purchase additional lenses based on your requirements, or deduct the price of unnecessary lens from the above total system price.
Interchangeable Camera Lenses For KT5Series Tip Dia. Direction Camera Res. Light type KT5 F-LENS 39 Ø3.9mm Front 1280*720
Rear-mounted
LED+Optic FiberKT5 S-LENS 39 Ø3.9mm Side 1280*720 KT5 F-LENS 60 Ø6.0mm Front 1280*720 KT5 S-LENS 60 Ø6.0mm Side 1280*720
