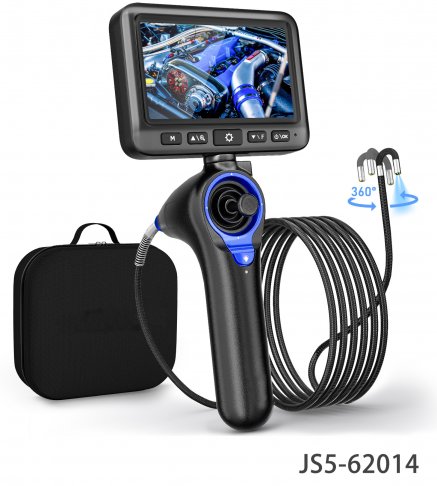

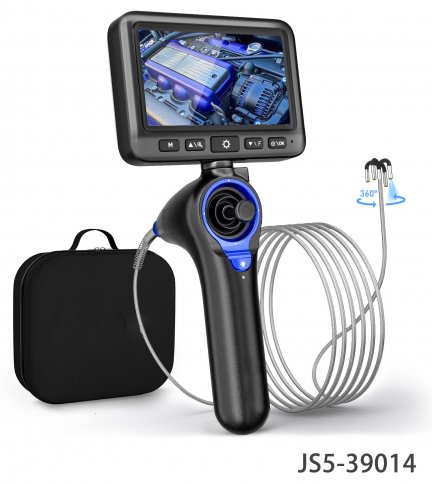

JS5 Series 5＂ HD Video Borescope Tungsten Probe 360°
Description：
- 360° Articulating Borescope Camera
- Economical Endoscope at an Affordable Price
- 6pcs LED Light with 4 Adjustable Brightness Levels
- 3.9mm / 6.2mm Diameter, Cable Length 1m~3m
- IP67 Waterproof Probe
- 3X Zoom, 4-Way Borescope Camera
Download file
-
360º Articulating Borescope
Camera 6.2mm / 3.9mm
5" ISP Screen
Truly 1080P inspection camera
Waterproof IP67
Button Instructions
JS5-62014 Handy Borescope Unboxing and Testing Video
JS5-39014 Handy Borescope Testing Video
Package list
-
JS5 Series Technical Specifications – Video Borescopes Overview
Series JS5-39 JS5-62 Probe Diameter 3.9mm 6.2mm Crmera Length 18mm 13.5mm Viewing Direction 0° Front View Camera Pixels 1080P D.O.F 15-100mm F.O.V 90° Screen 5" IPS Screen Resolution 1280*720 Articulation 360° Articulation Steering Radius 32mm Light Source 6pcs Front LED Digital Zoom 1X/2X/4X Illuminance 1~4 levels adjustable light Probe Material Tungsten Woven Mesh Camera Head / Flexible Stainless steel Probe Probe Length 1m / 2m / 3m Bending Angle 1m : 210° / 2m : 180° / 3m : 150° Image Resolution 640*480/1280*720/1920*1080 (JPG) Video Resolution 640*480/1280*720/1920*1080 (MOV) Waterproof Probe : IP67 Language Chinese Simplified, Chinese Traditional, Japanese, English, Korean, French, Spanish, German,Italy,Portuguese,Russian Software Function Image Rotation, Camera Temperature Structure Handheld, integrated design Data Port 32GB Micro-SD card Storage Temperature -10℃~50℃ Working Temperature -10℃~50℃ Battery capacity Lithium: 2600mAh, Working Time ≥5 Hours Power Charge DC5V*1A Standard Accessory Charging Cable, Carrying Case, User Manual, Cleaning Wipe Package Siez & Weight Export outer carton size: 41.5*27.5*12.6CM, GW : 1.5kg
10PCS/Carton, 57*43.5*55CM, 22kg -
Complete Specifications of JS5 Series 5" Industrial Video Borescopes
JS5 Series 5" 360˚ (Interchangeable Display & Probe)
Series Tip Dia. Length Probe Material Camera Res. Articulating LED Light JS5-39014 Ø3.9mm 1M Stainless Steel 1080P
360°
Front LEDJS5-39024 Ø3.9mm 2M Stainless Steel 1080P JS5-39034 Ø3.9mm 3M Stainless Steel 1080P JS5-62014 Ø6.2mm 1M Stainless Steel 1080P JS5-62024 Ø6.2mm 2M Stainless Steel 1080P JS5-62034 Ø6.2mm 3M Stainless Steel 1080P
-
Introduction
360º Articulating Borescope
Camera 6.2mm / 3.9mm
5" ISP Screen
Truly 1080P inspection camera
Waterproof IP67
Button Instructions
JS5-62014 Handy Borescope Unboxing and Testing Video
JS5-39014 Handy Borescope Testing Video
Package list
-
Specification
JS5 Series Technical Specifications – Video Borescopes Overview
Series JS5-39 JS5-62 Probe Diameter 3.9mm 6.2mm Crmera Length 18mm 13.5mm Viewing Direction 0° Front View Camera Pixels 1080P D.O.F 15-100mm F.O.V 90° Screen 5" IPS Screen Resolution 1280*720 Articulation 360° Articulation Steering Radius 32mm Light Source 6pcs Front LED Digital Zoom 1X/2X/4X Illuminance 1~4 levels adjustable light Probe Material Tungsten Woven Mesh Camera Head / Flexible Stainless steel Probe Probe Length 1m / 2m / 3m Bending Angle 1m : 210° / 2m : 180° / 3m : 150° Image Resolution 640*480/1280*720/1920*1080 (JPG) Video Resolution 640*480/1280*720/1920*1080 (MOV) Waterproof Probe : IP67 Language Chinese Simplified, Chinese Traditional, Japanese, English, Korean, French, Spanish, German,Italy,Portuguese,Russian Software Function Image Rotation, Camera Temperature Structure Handheld, integrated design Data Port 32GB Micro-SD card Storage Temperature -10℃~50℃ Working Temperature -10℃~50℃ Battery capacity Lithium: 2600mAh, Working Time ≥5 Hours Power Charge DC5V*1A Standard Accessory Charging Cable, Carrying Case, User Manual, Cleaning Wipe Package Siez & Weight Export outer carton size: 41.5*27.5*12.6CM, GW : 1.5kg
10PCS/Carton, 57*43.5*55CM, 22kg -
Model
Complete Specifications of JS5 Series 5" Industrial Video Borescopes
JS5 Series 5" 360˚ (Interchangeable Display & Probe)
Series Tip Dia. Length Probe Material Camera Res. Articulating LED Light JS5-39014 Ø3.9mm 1M Stainless Steel 1080P
360°
Front LEDJS5-39024 Ø3.9mm 2M Stainless Steel 1080P JS5-39034 Ø3.9mm 3M Stainless Steel 1080P JS5-62014 Ø6.2mm 1M Stainless Steel 1080P JS5-62024 Ø6.2mm 2M Stainless Steel 1080P JS5-62034 Ø6.2mm 3M Stainless Steel 1080P
