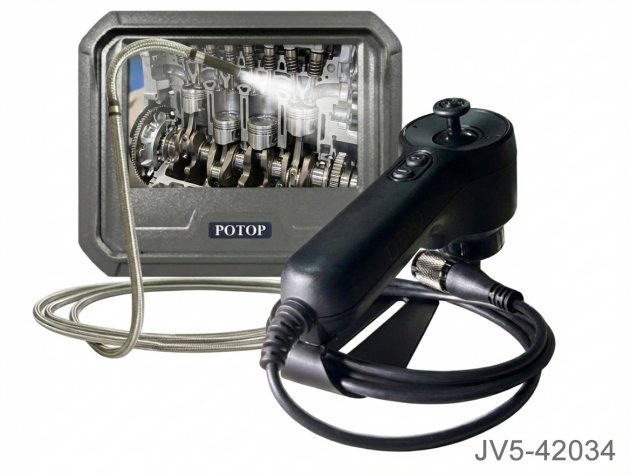

JV5 Series 5＂HD Professional Video Borescope Camera
Description：
- Produces sharp, clear, and bright HD images
- Wi-Fi connectivity to smartphones
- Equipped with USB-C for charging and data transfer
- Supports HDMI output
- Built-in microphone for voice recording
- Features an image comparison function
- Allows for mirror/rotate/negative image adjustments
- Includes photo annotation and watermark functions
- Designed to withstand drops of up to 1 meter
- Provides IP54 protection for the display
- Supports USB-to-computer operation
- Made in Taiwan. High Durability
Download file
-
Video Borescope Key Features
5” Touchscreen 800x480pixels
Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.
Light & Handy
Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.

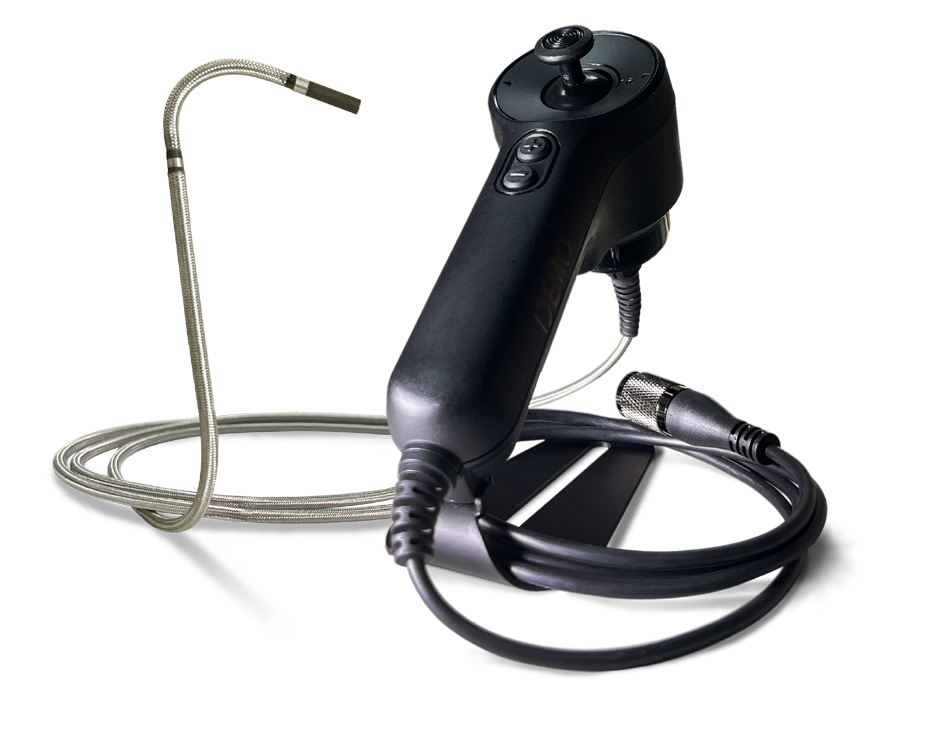

Equipped with 3.9mm / 4.9mm 4way detection tube

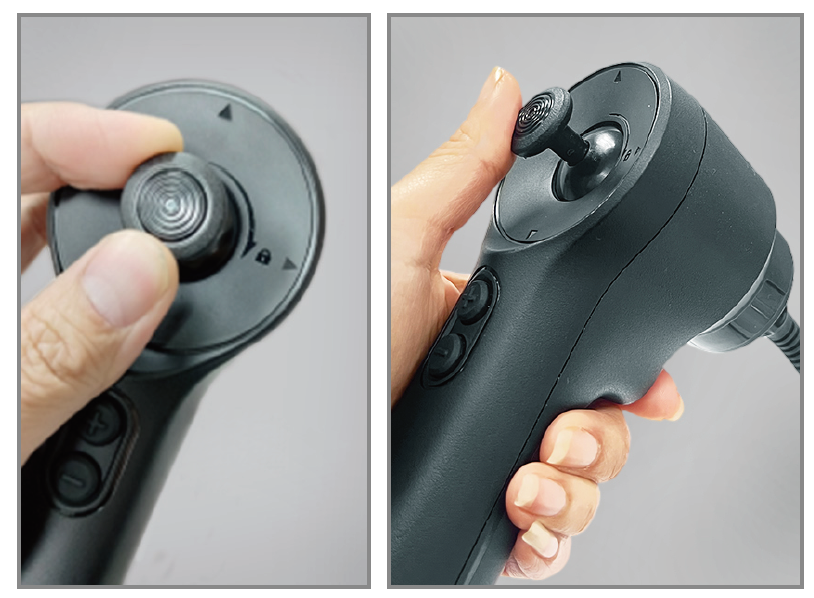

Ergonomic articulation joystick with angle lock.

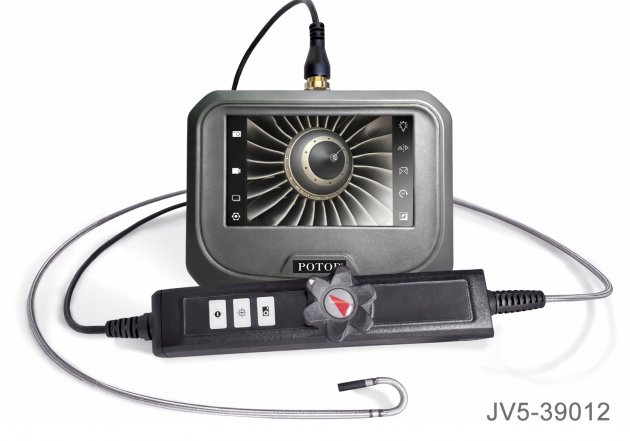

Equipped with 3.9mm 2way detection tube
To compare a stored image (target flaw or golden sample) with the live view on a split screen.
180º articulation Extremely small radius
provides custom build photo/video storage folder under TAG.
4.9 mm dual-camera probe
Front view 0º & Side view 90º
Compare functionTo compare a stored image (target flaw or golden sample) with the live view on a split screen.
TAGprovides custom build photo/video storage folder under TAG.
Introduction to each part
Complete Package & Standard Accessory
Application
COMBUSTION CHAMBER
AIR COMPRESSOR
GEAR BOX
CRACK
Main Customers
Fast DeliveryGeneral 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.
-
JX5 Series Technical Specifications – Video Borescopes Overview
Series JV5-39 JX5-42 JX5-49 Probe Diameter 3.9mm 4.2mm 4.9mm Viewing Direction 0° Front View 0° Front View 0° Front View / 90° Side View Camera Pixels 1920 x 1080 D.O.F. 10mm ~ 100mm F.O.V. 90° Image Resolution 1920 x 1080 Video Resolution 1920 x 1080 Articulation 4-WAY / 2-WAY Articulation 4-WAY Articulation Non Light Source Front LED Front / Side LED Illuminance adjustable light Probe Material Stainless steel Semi-rigid steel Probe Length 2-WAY : 1m
4-WAY : 1.5m / 2m3m / 5m 1m / 3m Bending Angle 180° 3m : 160° / 5m : 135° Non Waterproof Camera head-IP67 level Display 5” Touchscreen Display Resolution 800x480 Zoom In Pinch-To-Zoom Language Support 28 languages Software Function snapshot, recording, album, setting, brightness, LED direction, mirror image, rotate image, negative, full screen, zoom in/out, power button, LED indicator Image / Video Format JPEG / MP4 Storage Micro SD up to 64GB Data Port USB-C Storage Temperature 0℃~40℃ Working Temperature -10℃~50℃ Working Time ≥4h DC Power adapter DC5V, 3A Videoscope Weight & Size host : 705g, Size: 161.93 x 127.93 x 46 mm Compatibility Interchangeable monitor and tube with different diameters Portable Case Aluminium carry case(with EVA foam inner) Standard Accessory DC Adaptor, USB cable, HDMI cable, Micro SD card Software Jv5 UsbVideoScope -
Complete Specifications of JV5 Industrial Video Borescopes
*Please note that the probes&main unit of JV5 series are not compatible with the JK and JF series. Their connectors are different.Model Tip Dia. Length Resolution Material of Tube Feature JV5-39012 Ø3.9mm 1M 1920X1080 Stainless Steel 2Way Articulation JV5-39014 Ø3.9mm 1.5M 1920X1080 Stainless Steel 4Way Articulation JV5-39024 Ø3.9mm 2M 1920X1080 Stainless Steel 4Way Articulation JV5-42034 Ø4.2mm 3M 1920X1080 Stainless Steel 4Way Articulation JV5-42054 Ø4.2mm 5M 1920X1080 Stainless Steel 4Way Articulation JV5-4901D Ø4.9mm 1M 1920X1080 Semi-rigid Steel Dual-cameras JV5-4903D Ø4.9mm 3M 1920X1080 Semi-rigid Steel Dual-cameras
-
Introduction
Video Borescope Key Features
5” Touchscreen 800x480pixels
Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.
Light & Handy
Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.
Equipped with 3.9mm / 4.9mm 4way detection tubeErgonomic articulation joystick with angle lock.
Equipped with 3.9mm 2way detection tube
To compare a stored image (target flaw or golden sample) with the live view on a split screen.
180º articulation Extremely small radius
provides custom build photo/video storage folder under TAG.

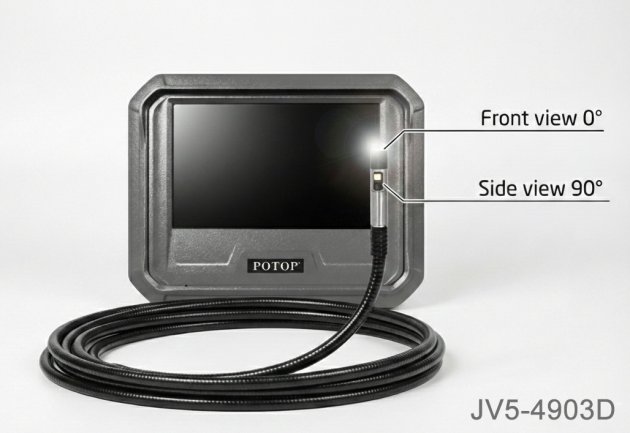

4.9 mm dual-camera probe
Front view 0º & Side view 90º
Compare functionTo compare a stored image (target flaw or golden sample) with the live view on a split screen.
TAGprovides custom build photo/video storage folder under TAG.
Introduction to each part
Complete Package & Standard Accessory
Application
COMBUSTION CHAMBER
AIR COMPRESSOR
GEAR BOX
CRACK
Main Customers
Fast DeliveryGeneral 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.
-
Specification
JX5 Series Technical Specifications – Video Borescopes Overview
Series JV5-39 JX5-42 JX5-49 Probe Diameter 3.9mm 4.2mm 4.9mm Viewing Direction 0° Front View 0° Front View 0° Front View / 90° Side View Camera Pixels 1920 x 1080 D.O.F. 10mm ~ 100mm F.O.V. 90° Image Resolution 1920 x 1080 Video Resolution 1920 x 1080 Articulation 4-WAY / 2-WAY Articulation 4-WAY Articulation Non Light Source Front LED Front / Side LED Illuminance adjustable light Probe Material Stainless steel Semi-rigid steel Probe Length 2-WAY : 1m
4-WAY : 1.5m / 2m3m / 5m 1m / 3m Bending Angle 180° 3m : 160° / 5m : 135° Non Waterproof Camera head-IP67 level Display 5” Touchscreen Display Resolution 800x480 Zoom In Pinch-To-Zoom Language Support 28 languages Software Function snapshot, recording, album, setting, brightness, LED direction, mirror image, rotate image, negative, full screen, zoom in/out, power button, LED indicator Image / Video Format JPEG / MP4 Storage Micro SD up to 64GB Data Port USB-C Storage Temperature 0℃~40℃ Working Temperature -10℃~50℃ Working Time ≥4h DC Power adapter DC5V, 3A Videoscope Weight & Size host : 705g, Size: 161.93 x 127.93 x 46 mm Compatibility Interchangeable monitor and tube with different diameters Portable Case Aluminium carry case(with EVA foam inner) Standard Accessory DC Adaptor, USB cable, HDMI cable, Micro SD card Software Jv5 UsbVideoScope -
Model
Complete Specifications of JV5 Industrial Video Borescopes
*Please note that the probes&main unit of JV5 series are not compatible with the JK and JF series. Their connectors are different.Model Tip Dia. Length Resolution Material of Tube Feature JV5-39012 Ø3.9mm 1M 1920X1080 Stainless Steel 2Way Articulation JV5-39014 Ø3.9mm 1.5M 1920X1080 Stainless Steel 4Way Articulation JV5-39024 Ø3.9mm 2M 1920X1080 Stainless Steel 4Way Articulation JV5-42034 Ø4.2mm 3M 1920X1080 Stainless Steel 4Way Articulation JV5-42054 Ø4.2mm 5M 1920X1080 Stainless Steel 4Way Articulation JV5-4901D Ø4.9mm 1M 1920X1080 Semi-rigid Steel Dual-cameras JV5-4903D Ø4.9mm 3M 1920X1080 Semi-rigid Steel Dual-cameras
