• Introduction

  Introduction

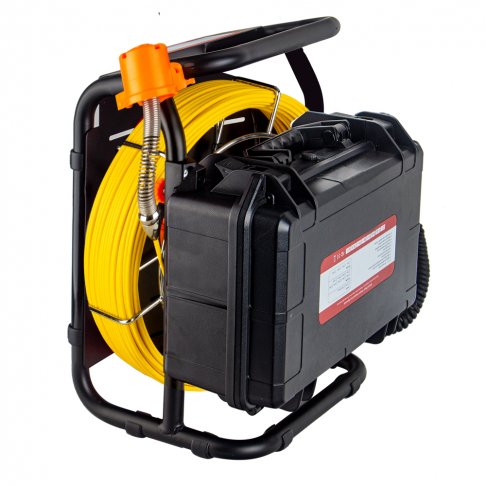

  10.1" HD Pipe Video Borescope (512 transmission for option)



  Multi-functional Video Borescope (512 transmission for option)





  10.1" HD Super bright TFT Touch screen


  Self-Leveling Camera






  Sapphire scratch-resistant glass lens cover

  HD stainless steel camera




  Real HD stainless steel camera




  512HZ Transmitter for option

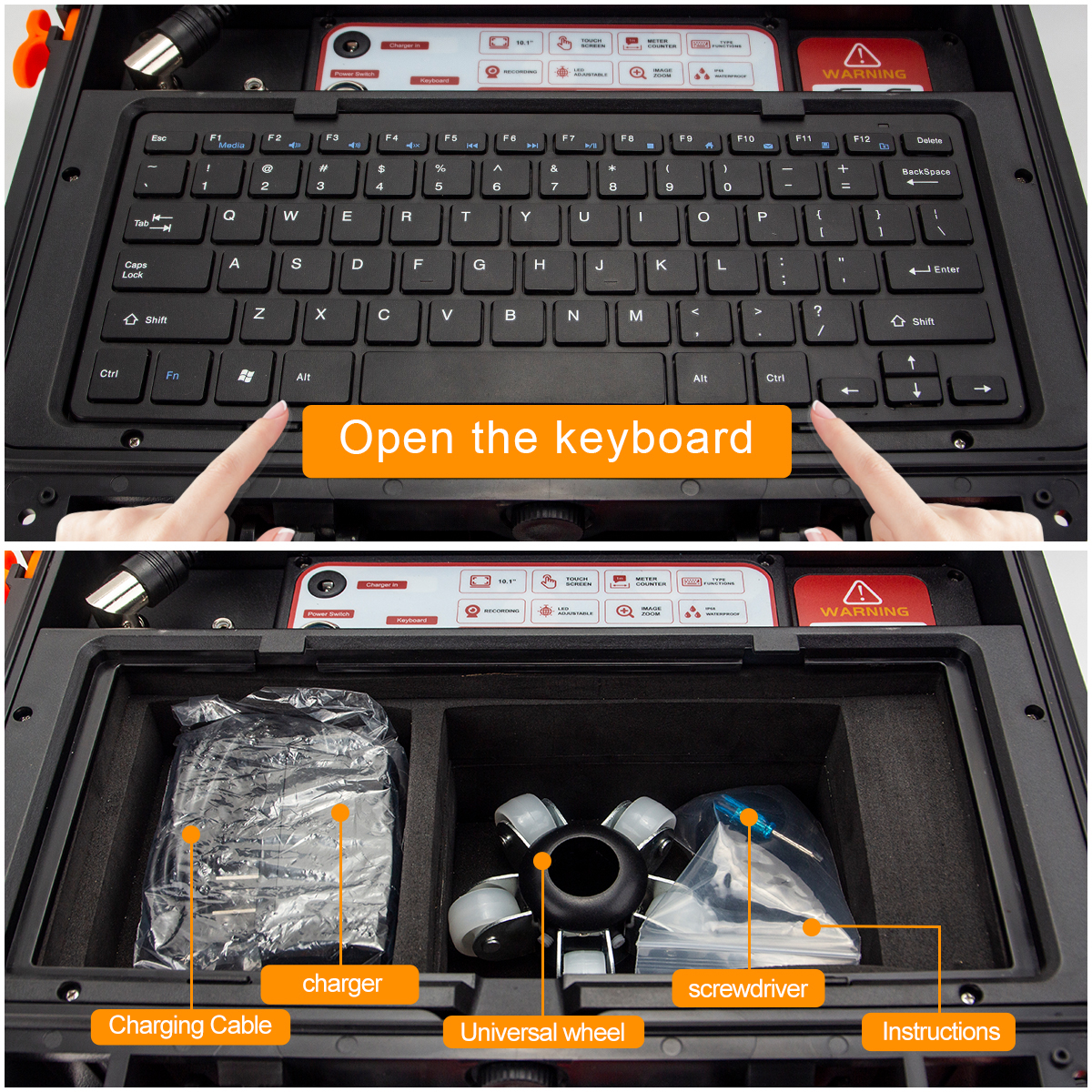

  Plastic box disassembly method

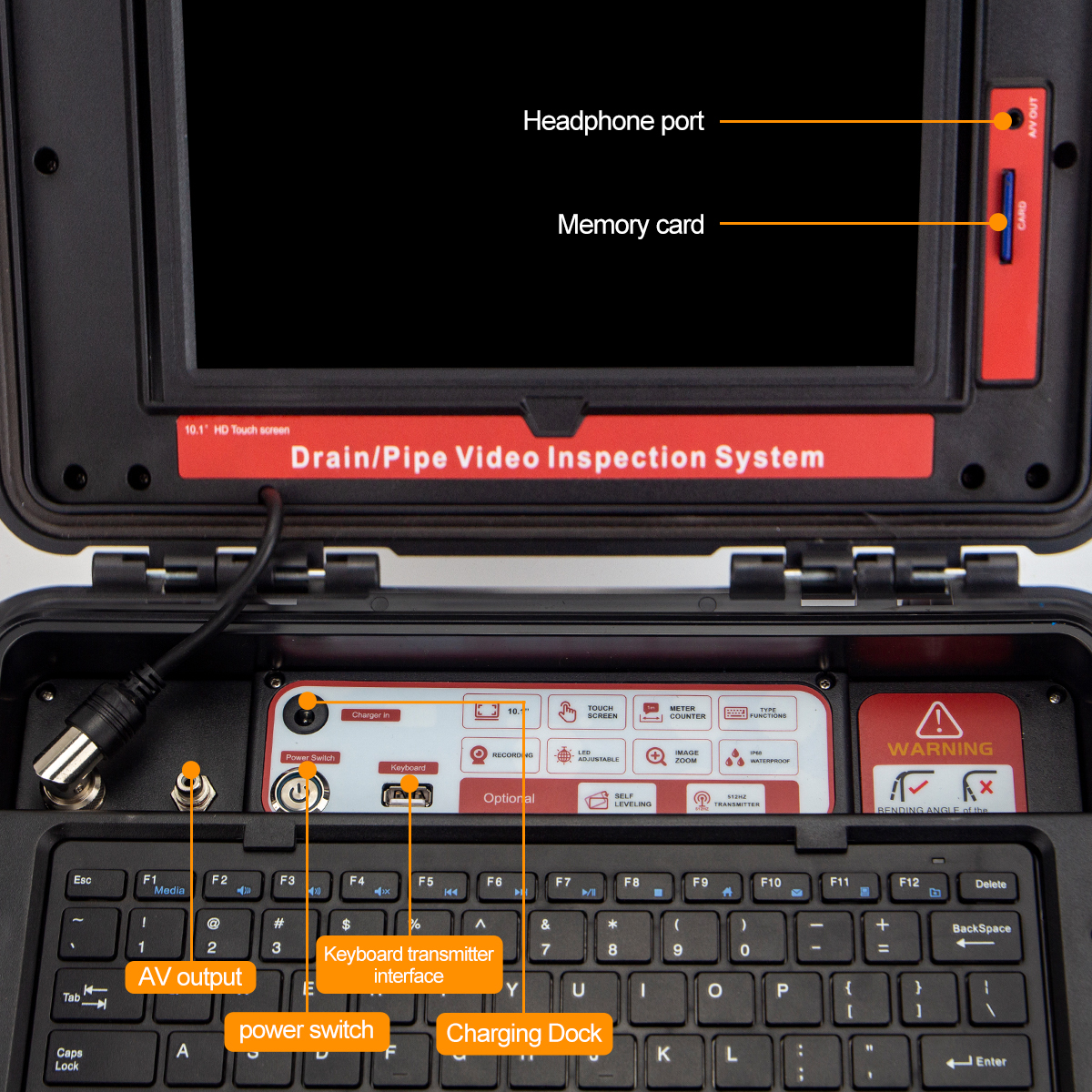

  Equipment Introduction

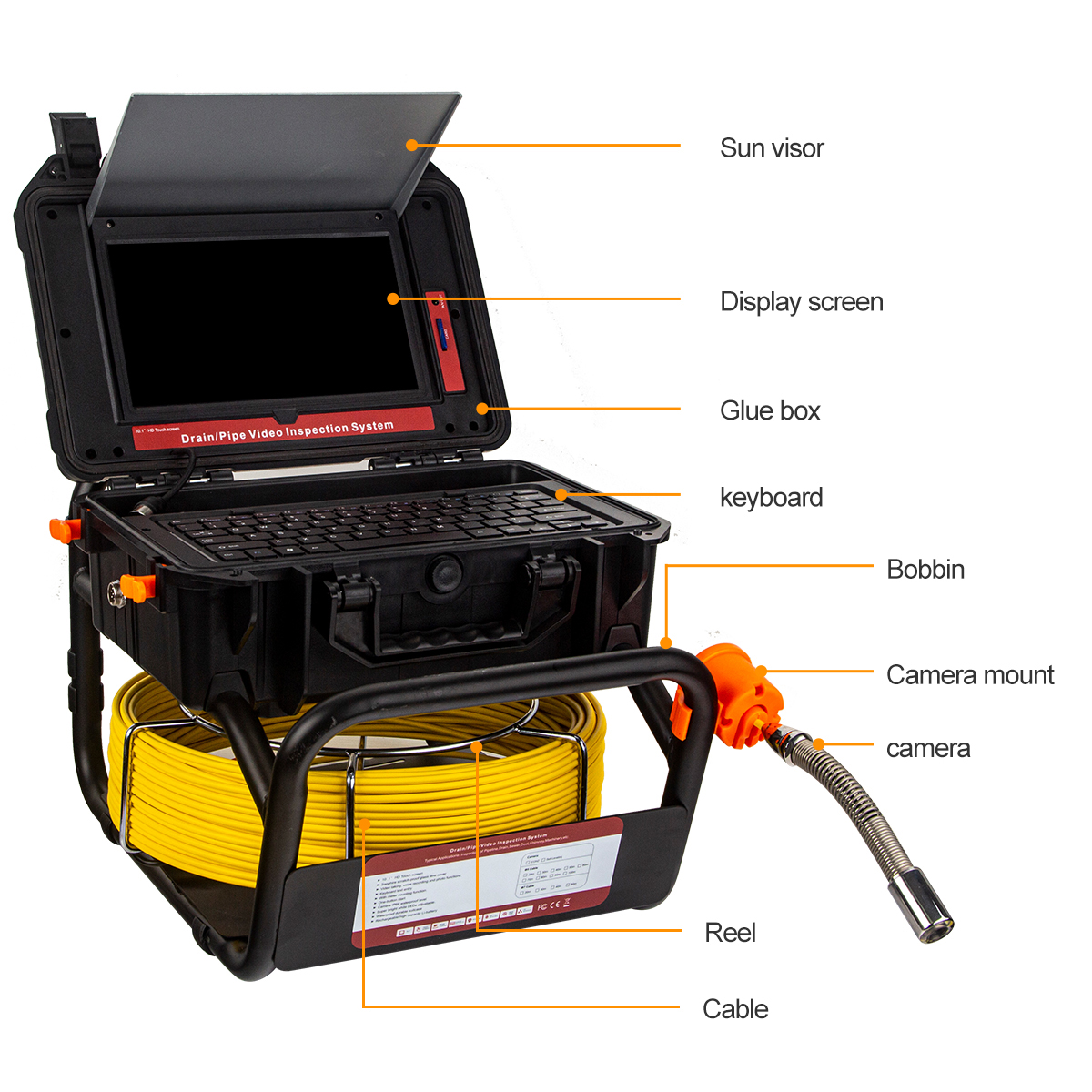

  Product composition





  Product size





  Applications







• Specification


  Model	P99 Series
  Display	10.1 inches color TFT LCD monitor with a sun-visor
  Display Resolution	1080P
  Camera Diameter	23mm
  Camera Direction	Front View
  Illumination	12pcs LED
  Camera F.O.V.	120°
  Camera Focus	Auto focus 1cm~8cm
  Camera Res.	1080P
  Cable Length	Cable Diameter 5mm 20M ~ 100M Cable Diameter 7mm 20M ~ 50M
  Snapshot	JPEG
  Recording	AVI
  Image Storage	SD card
  Function	Photo, audio recording, video recording
  Operating Time	6hrs
  Working Temperature	-20℃ to 60℃
  Store Temperature	-30℃ to 70℃
  Water Proof	Camera & Cable water proof grade: IP68
  Language	English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean/ Polish/ Italian
  Battery	4500 mAh Lithium-ion Battery
  Power Supply	100VAC-240VAC DC12.6V
  Package size	48*42*36 CM
  Package	Plastic box, Camera, LCD display, Detection cable, Coil, Protector 1, Protector 2, Charger, Screwdriver



• Model





  Model	Display	Tip Dia.	Length	Cable dia.	Cable Color
  P99-2320	10.1"	Ø23mm	20M	5mm	Yellow
  P99-2330	10.1"	Ø23mm	30M	5mm	Yellow
  P99-2340	10.1"	Ø23mm	40M	5mm	Yellow
  P99-2350	10.1"	Ø23mm	50M	5mm	Yellow
  P99-2360	10.1"	Ø23mm	60M	5mm	Yellow
  P99-2370	10.1"	Ø23mm	70M	5mm	Yellow
  P99-2380	10.1"	Ø23mm	80M	5mm	Yellow
  P99-2390	10.1"	Ø23mm	90M	5mm	Yellow
  P99-23100	10.1"	Ø23mm	100M	5mm	Yellow
  P99-2320-7	10.1"	Ø23mm	20M	7mm	Red
  P99-2330-7	10.1"	Ø23mm	30M	7mm	Red
  P99-2340-7	10.1"	Ø23mm	40M	7mm	Red
  P99-2350-7	10.1"	Ø23mm	50M	7mm	Red
