- 360° rotation camera
- One-touch video/audio recording and image capture
- Support max 256G SD card or USB stick
- Cable M/FT counter and text
- 4-hour battery life
- Optional removable camera heads with different size (manual focus and self-levelling)
-

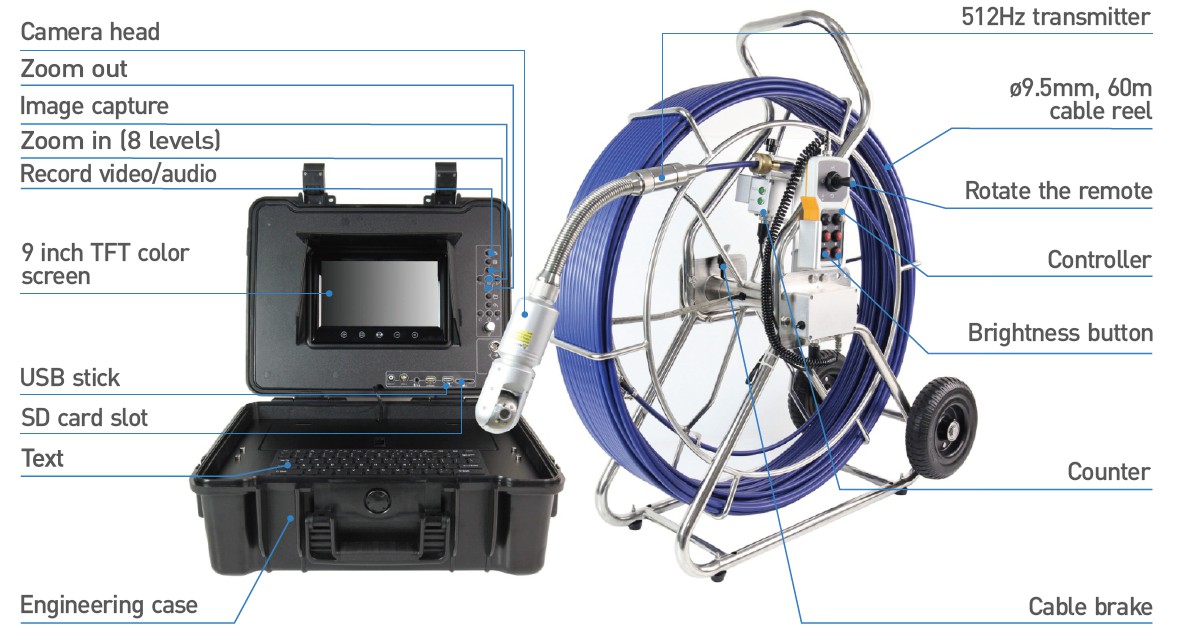

Features
Pipe camera
Camera head
Zoom out
Image capture
Zoom in(8 levels)
Record video/audio
9 inch TFT color screen
USB stick
SD card slot
Text
Engineering case
512Hz transmitter
Ø9.5mm, 60m cable reel
Rotate the remote
Controller
Brightness button
Counter
Cable brake
Details360° rotation camera
4 high-bright LED lights
Cable M/FT counter and Text
521Hz transmitter
Universal skid
Spread range:140-330mm
Standard accessories
Standard accessories
Camera Head & Skids
Control Box
Cable Wheel
Transmitter
Spring connector
Control Handle
Microphe
Option
-
Series CB9-50PT CB9-50SL Probe Diameter(mm) 50mm Viewing Direction 360° Panning & 180° Tilting Camera Front View & Self-leveling Camera Camera Pixels 960TV line D.O.F. 3-50cm F.O.V. 90° Image Resolution JPEG 720*576 Video Resolution AVI 720*576 Light Source LED 4pcs Illuminance Adjustable light Probe Length 30M /40M /50M /60M /80M /100M /120M Probe Diameter: 9.5mm Waterproof Camera: IP68 Display 9-inch TFT color screen Display Resolution 800*480 Working Time ≥4h Videoscope Size Case size: 460(L)*370(W)*180(H)mm / Cable size: 768(L)*396(W)*820(H)mm Compatibility Interchangeable monitor and tube with different diameters Software Function Video/audio recording and image capture、Counter and text、Zoom function (x8 levels) Language English, French, German, Italian, Spanish, Czech, Dutch Standard Accessory 8G SD card (max 256G) & USB stick, 512Hz sonde, 110mm & 150mm & 220mm Skid, Universal skid 140mm~330mm Option Locator / 15-inch TFT color screen Portable Case Engineering plastic Package 2cartons 52*45*21cm GW:10kg & 84*39*87cm GW:33kg -
CB9PT Series ( 360° Pan-tilt Camera Heads)
Model Display Tip Dia. Length Rotation Camera Res. CB9-5030PT 9" Ø50mm 30M 360° Panning; 180° Tilting 960TV line CB9-5040PT 9" Ø50mm 40M 360° Panning; 180° Tilting 960TV line CB9-5050PT 9" Ø50mm 50M 360° Panning; 180° Tilting 960TV line CB9-5060PT 9" Ø50mm 60M 360° Panning; 180° Tilting 960TV line CB9-5080PT 9" Ø50mm 80M 360° Panning; 180° Tilting 960TV line CB9-50100PT 9" Ø50mm 100M 360° Panning; 180° Tilting 960TV line CB9-50120PT 9" Ø50mm 120M 360° Panning; 180° Tilting 960TV line CB9SL Series (Front View with Self-leveling Camera Heads)
Model Display Tip Dia. Length Camera heads function Camera Res. CB9-5030SL 9" Ø50mm 30M Self-leveling 960TV line CB9-5040SL 9" Ø50mm 40M Self-leveling 960TV line CB9-5050SL 9" Ø50mm 50M Self-leveling 960TV line CB9-5060SL 9" Ø50mm 60M Self-leveling 960TV line CB9-5080SL 9" Ø50mm 80M Self-leveling 960TV line CB9-50100SL 9" Ø50mm 100M Self-leveling 960TV line CB9-50120SL 9" Ø50mm 120M Self-leveling 960TV line
-
Introduction
Features
Pipe camera
Camera head
Zoom out
Image capture
Zoom in(8 levels)
Record video/audio
9 inch TFT color screen
USB stick
SD card slot
Text
Engineering case
512Hz transmitter
Ø9.5mm, 60m cable reel
Rotate the remote
Controller
Brightness button
Counter
Cable brake
Details360° rotation camera
4 high-bright LED lights
Cable M/FT counter and Text
521Hz transmitter
Universal skid
Spread range:140-330mm
Standard accessories
Standard accessories
Camera Head & Skids
Control Box
Cable Wheel
Transmitter
Spring connector
Control Handle
Microphe
Option
-
Specification
Series CB9-50PT CB9-50SL Probe Diameter(mm) 50mm Viewing Direction 360° Panning & 180° Tilting Camera Front View & Self-leveling Camera Camera Pixels 960TV line D.O.F. 3-50cm F.O.V. 90° Image Resolution JPEG 720*576 Video Resolution AVI 720*576 Light Source LED 4pcs Illuminance Adjustable light Probe Length 30M /40M /50M /60M /80M /100M /120M Probe Diameter: 9.5mm Waterproof Camera: IP68 Display 9-inch TFT color screen Display Resolution 800*480 Working Time ≥4h Videoscope Size Case size: 460(L)*370(W)*180(H)mm / Cable size: 768(L)*396(W)*820(H)mm Compatibility Interchangeable monitor and tube with different diameters Software Function Video/audio recording and image capture、Counter and text、Zoom function (x8 levels) Language English, French, German, Italian, Spanish, Czech, Dutch Standard Accessory 8G SD card (max 256G) & USB stick, 512Hz sonde, 110mm & 150mm & 220mm Skid, Universal skid 140mm~330mm Option Locator / 15-inch TFT color screen Portable Case Engineering plastic Package 2cartons 52*45*21cm GW:10kg & 84*39*87cm GW:33kg -
Model
CB9PT Series ( 360° Pan-tilt Camera Heads)
Model Display Tip Dia. Length Rotation Camera Res. CB9-5030PT 9" Ø50mm 30M 360° Panning; 180° Tilting 960TV line CB9-5040PT 9" Ø50mm 40M 360° Panning; 180° Tilting 960TV line CB9-5050PT 9" Ø50mm 50M 360° Panning; 180° Tilting 960TV line CB9-5060PT 9" Ø50mm 60M 360° Panning; 180° Tilting 960TV line CB9-5080PT 9" Ø50mm 80M 360° Panning; 180° Tilting 960TV line CB9-50100PT 9" Ø50mm 100M 360° Panning; 180° Tilting 960TV line CB9-50120PT 9" Ø50mm 120M 360° Panning; 180° Tilting 960TV line CB9SL Series (Front View with Self-leveling Camera Heads)
Model Display Tip Dia. Length Camera heads function Camera Res. CB9-5030SL 9" Ø50mm 30M Self-leveling 960TV line CB9-5040SL 9" Ø50mm 40M Self-leveling 960TV line CB9-5050SL 9" Ø50mm 50M Self-leveling 960TV line CB9-5060SL 9" Ø50mm 60M Self-leveling 960TV line CB9-5080SL 9" Ø50mm 80M Self-leveling 960TV line CB9-50100SL 9" Ø50mm 100M Self-leveling 960TV line CB9-50120SL 9" Ø50mm 120M Self-leveling 960TV line
