• Front Camera

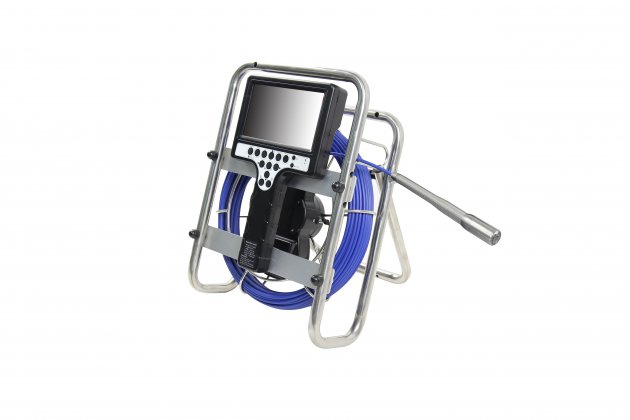

  CB7 Series 7＂screen Pipe Inspection Video Borescope Sewer Drain Camera

  Model: CB7-2830 (28mm camera / 30m cable)
  self level cam head with 512Hz sonde



  Model: CB7-2330 (23mm camera / 30m cable)
  self level cam head with 512Hz sonde


  Model: CB7-1730 (17mm camera / 30m cable)


  Model: CB7-1430 (14mm camera / 30m cable)


  Model: CB7-0730 (7mm camera / 30m cable)



  Introduction of each part













  CB7 Series Pipe Inspection Camera Video Borescope
  30meters with 7mm 14mm 17mm 23mm 28mm Camera Head



  CB7-0730 pipe inspection borescope brief introduction

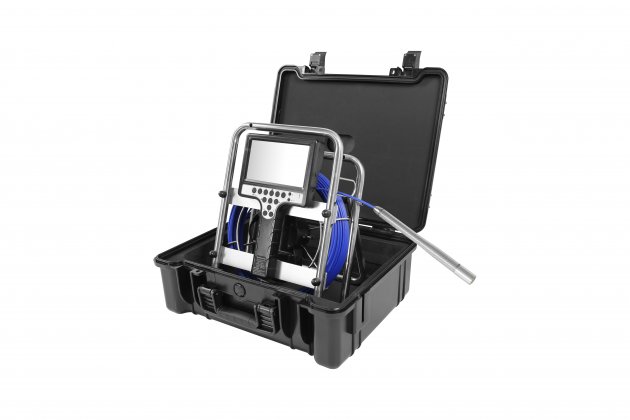

  Product accessories

  Model: CB7-0730   Camera head Ø7mm
  Model: CB7-1430   Camera head Ø14mm
  Model: CB7-1730   Camera head Ø17mm






  Model: CB7-2330  Camera head Ø23mm




  Model: CB7-2830  Camera head Ø28mm




  Option


  Locator



  Package size: 58x17x23cm, GW: 3.5KG



  Application








• 350° Panning Dual Cameras



  CB7 Series 7＂screen Pipe Inspection Video Borescope Sewer Drain Camera

  Model: CB7-2330R (23mm 350° Panning Dual Cameras / 30m cable)

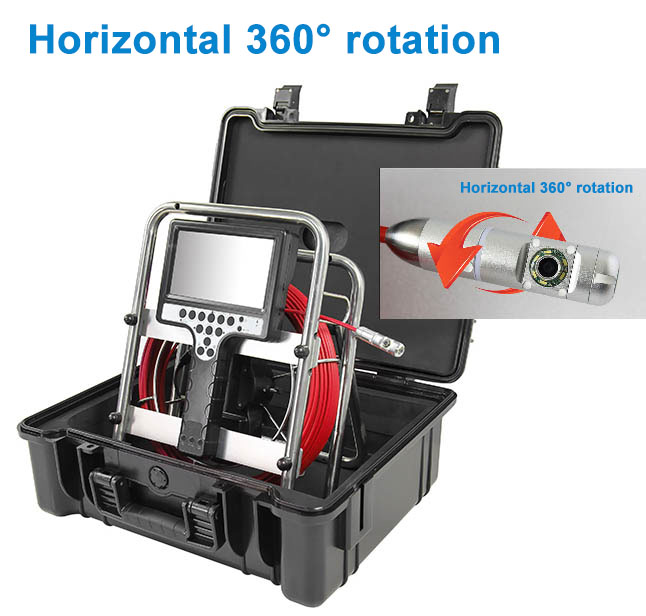

  23mm Horizontal 350° rotation Dual cameras






  CB7-2330R Pipe Inspection Borescope Operation Demonstration Video
  23mm 350° Panning Dual Cameras (Front view/ side view) / 30m cable




  Introduction of each part









  Product accessories







  Option


  Locator



  Package size: 58x17x23cm, GW: 3.5KG



  Application








• Specification

  Series	CB7-07	CB7-14	CB7-17	CB7-23	CB7-28
  Camera Diameter(mm)	∅7mm	∅14mm	∅17mm	∅23mm	∅28mm
  Probe Length	30M   Probe Diameter: 5mm
  Display	7 inch TFT color screen
  Viewing Direction	Front view
  Camera Pixels	720*576
  Camera Function	Non			self level cam head
  Skid Size	Ø12mm	Ø30mm	Ø24mm	Ø40 / Ø80mm	Ø40 / Ø90mm
  D.O.F.	20-25mm	20-25mm	30-40mm	50-60mm	80-100mm
  F.O.V.	60°	65°	50°	105°	105°

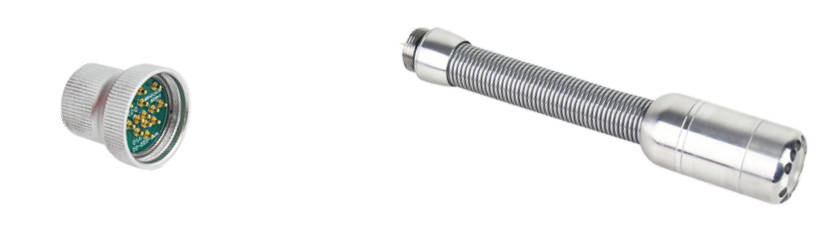

  Detachable Camera	Non	Yes. (Only 14mm camera can be replaced)	Interchangeable camera head 17mm& 23mm& 28mm switchable
  Image Resolution	JPEG 720*576
  Video Resolution	AVI 720*576
  Light Source	LED 8pcs	LED 6pcs		LED 12pcs
  Waterproof	Camera : IP68
  Display Resolution	1024*600
  Zoom in	8x
  Working Time	≥7h
  Language	English, French, German, Italian, Spanish, Czech, Dutch
  Standard Accessory	Camera, Cable wheel, Main body, SD card & card reader, Skid, Charger, Screwdriver, Waterproof ring, Manual,suitcase
  Option	keyboard,Maximum cable length can be customized up to 40m ,Locator(4.5M)
  Portable Case	Engineering plastic
  Package	53*45*22cm




  350° Panning Dual Cameras

  Series	CB7-2320R
  Camera Diameter(mm)	∅23mm
  Probe Length	20M / 30M   Probe Diameter: 7mm
  Display	7 inch TFT color screen
  Viewing Direction	Dual lens Pan350° rotation
  Camera Pixels	1280*720
  D.O.F.	front : 80-100mm  /  side : 50-60mm
  F.O.V.	105°
  Image Resolution	JPEG 1280*720
  Video Resolution	AVI 1280*720
  Light Source	LED 6pcs *2
  Waterproof	Camera : IP68
  Display Resolution	1024*600
  Zoom in	8x
  Working Time	≥7h
  Language	English, French, German, Italian, Spanish, Czech, Dutch
  Standard Accessory	Camera, Cable wheel, Main body, SD card & card reader, Charger, Screwdriver, Waterproof ring, Manual,suitcase
  Option	Locator(4.5M)
  Portable Case	Engineering plastic
  Package	53*45*22cm

• Model

  CB7 Series

  Model	Display	Tip Dia.	Length	Camera Res.	Detachable Camera
  CB7-0730	7"	Ø7mm	30M	720*576	Non
  CB7-1430	7"	Ø14mm	30M	720*576	Yes. (Only 14mm camera can be replaced)
  CB7-1730	7"	Ø17mm	30M	720*576	Yes. Φ17mm & Φ23mm & Φ28mm are Interchangeable
  CB7-2330	7"	Ø23mm	30M	720*576
  CB7-2830	7"	Ø28mm	30M	720*576


  CB7 Series 350° Panning Dual Cameras

  Model	Display	Tip Dia.	Length	Camera Res.	Rotation
  CB7-2320R	7"	Ø23mm	20M	1280*720	350° Panning Dual Cameras
  CB7-2330R	7"	Ø23mm	30M	1280*720	350° Panning Dual Cameras
