• 50mm&65mm 360PT

  Features

  Model: CB9-5060 (50mm 360°camera / 60m cable)











  Model: CB9-6560 (50mm HD 360°camera / 60m cable)






  Details





  ---

  360° rotation camera




  Front View & Self-leveling Camera





  Cable M/FT counter and Text





  521Hz transmitter



  Universal skid  Spread range: 140-33mm



  product description




  Standard accessories
  Model: CB9-5060





  Option








  Discover unparalleled precision in pipeline inspections with the CB9 Series 9" TFT Screen 360° Pipe Inspection Camera. Its 360° rotation capability and 8-level zoom function provide comprehensive views of pipeline conditions. Effortlessly navigate pipelines with the user-friendly 9-inch TFT color screen and document findings in real-time through video and audio recording. Illuminate dark spaces with four high-bright LED lights, ensuring clear visibility.

  Monitor cable length and add text annotations seamlessly with the built-in counter. The integrated 512Hz transmitter facilitates precise location mapping. Adapt to various pipeline diameters with the universal skid's spread range of 140-330mm. Convenience meets efficiency with a USB stick and SD card slot for data storage, complemented by an engineering case for protection. The remote controller, featuring a brightness button and counter, ensures seamless operation.

  The CB9 Series includes essential accessories like a camera head, skids, control box, cable wheel, transmitter, spring connector, control handle, and microphone. Explore additional options for a tailored inspection experience. Elevate your pipeline inspections with the CB9 Series – where precision meets efficiency.

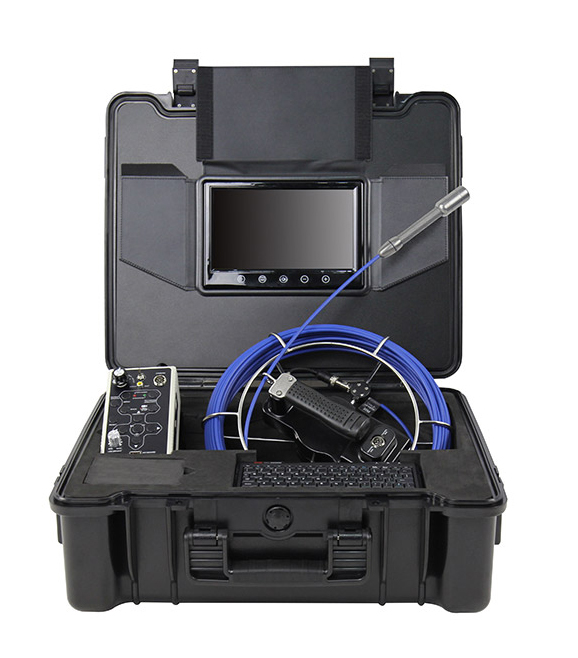

• 7~28mm

  Features

  Model: CB9-2330 (23mm camera / 30m cable)
  self level cam head




  Model: CB9-1430 (14mm camera / 30m cable)
  self level cam head

  ​

  Model: CB9-0730 (7mm camera / 30m cable)







  Camera head



  Self-leveling Camera



  Control box introduction



  9 inch TFT color screen
  Cable wheel




  Engineering case









  CB9-2330 HD pipe inspection borescope operation guide- 23mm HD camera, 30meter



  Product accessories





• Specification

  CB9PT Series ( 360° Pan-tilt Camera Heads)

  Series	CB9-50PT	CB9-50SL	CB9-65PT
  Prob​e Diameter(mm)	50mm		65mm
  Viewing Direction	360° Panning & 180° Tilting Camera	Front View & Self-leveling Camera	360° Panning & 180° Tilting Camera
  Camera Pixels	960 TV Line		1920*1080
  D.O.F.	3-50cm
  F.O.V.	90°		105°
  Image Resolution	JPEG 720*576		JPEG 1920*1080
  Video Resolution	AVI 720*576		JPEG 1920*1080
  Light Source	LED 4pcs
  Illuminance	Adjustable light
  Probe Length	60M /80M /100M /120M   Probe Diameter: 9.5mm		Probe Diameter: 10.8mm
  Waterproof	Camera: IP68
  Display	9-inch TFT color screen		10-inch TFT color screen
  Display Resolution	800*480		1280*800
  Working Time	≥4h
  Videoscope Size	Case size: 460(L)*370(W)*180(H)mm / Cable size: 768(L)*396(W)*820(H)mm
  Compatibility	Interchangeable monitor and tube with different diameters
  Software Function	Video/audio recording and image capture、Counter and text、Zoom function (x8 levels)
  Language	English, French, German, Italian, Spanish, Czech, Dutch
  Standard Accessory	8G SD card (max 256G) & USB stick, 512Hz sonde, 110mm & 150mm & 220mm Skid, Universal skid 140mm~330mm
  Option	Locator / 15-inch TFT color screen
  Portable Case	Engineering plastic
  Package	2cartons 52*45*21cm GW:10kg & 84*39*87cm GW:33kg

  CB9 Series (Front View Camera Heads)

  Series	CB9-07	CB9-14	CB9-17	CB9-23	CB9-28
  Prob​e Diameter(mm)	7mm	14mm	17mm	23mm	28mm
  Viewing Direction	Front View
  Camera Pixels	960TV line
  Camera Function	Non			self level cam head
  Skid Size	Ø12mm	Ø30mm	Ø24mm	Ø40/80mm	Ø40/90mm
  D.O.F.	10-40mm	20-45mm	30-60mm	30-200mm	70-200mm
  F.O.V.	60°	65°	50°	105°	105°
  Image Resolution	JPEG 720*576
  Video Resolution	AVI 720*576
  Light Source	LED 4pcs	LED 6pcs	LED 6pcs	LED 12pcs	LED 12pcs
  Illuminance	Adjustable light
  Probe Length	30M / 50M  Probe Diameter: 5mm
  Waterproof	Cable & Camera: IP68
  Display	9-inch TFT color screen
  Display Resolution	800*480
  Working Time	≥4h
  Videoscope Size	Case size: 511(L)*430(W)*200(H)mm
  Compatibility	Interchangeable monitor and tube with different diameters
  Software Function	Video/audio recording and image capture、Counter and text、Zoom function (x8 levels)
  Language	English, French, German, Italian, Spanish, Czech, Dutch
  Standard Accessory	Camera, Cable wheel, Main body, SD card & card reader, Skid, Charger, Screwdriver, Waterproof ring, Manual,suitcase
  Option	Locator / 15-inch TFT color screen
  Portable Case	Engineering plastic
  Package	531(L)*450(W)*220(H)mm GW:33kg

• Model

  CB9PT Series ( 360° Pan-tilt Camera Heads)

  Model	Display	Tip Dia.	Length	Rotation	Camera Res.
  CB9-5060PT	9"	Ø50mm	60M	360° Panning; 180° Tilting	960TV line
  CB9-5080PT	9"	Ø50mm	80M	360° Panning; 180° Tilting	960TV line
  CB9-50100PT	9"	Ø50mm	100M	360° Panning; 180° Tilting	960TV line
  CB9-50120PT	9"	Ø50mm	120M	360° Panning; 180° Tilting	960TV line
  CB9-50120PT	10"	Ø65mm	120M
  CB9-50120PT	10"	Ø65mm	120M	360° Panning; 180° Tilting	1920*1080



  CB9SL Series (Front View with Self-leveling Camera Heads)

  Model	Display	Tip Dia.	Length	Camera heads function	Camera Res.
  CB9-5060SL	9"	Ø50mm	60M	Self-leveling	960TV line
  CB9-5080SL	9"	Ø50mm	80M	Self-leveling	960TV line
  CB9-50100SL	9"	Ø50mm	100M	Self-leveling	960TV line
  CB9-50120SL	9"	Ø50mm	120M	Self-leveling	960TV line


  CB9 Series (Front View Camera Heads)

  Model	Display	Tip Dia.	Length	Camera Res.	Detachable Camera
  CB9-0730	9"	Ø7mm	30M	960TV line	Non
  CB9-0750	9"	Ø7mm	50M	960TV line
  CB9-1430	9"	Ø14mm	30M	960TV line	Yes. (Only 14mm camera can be replaced)
  CB9-1450	9"	Ø14mm	50M	960TV line
  CB9-1730	9"	Ø17mm	30M	960TV line	Yes. Φ17mm & Φ23mm & Φ28mm are Interchangeable
  CB9-1750	9"	Ø17mm	50M	960TV line
  CB9-2330	9"	Ø23mm	30M	960TV line
  CB9-2350	9"	Ø23mm	50M	960TV line
  CB9-2830	9"	Ø28mm	30M	960TV line
  CB9-2850	9"	Ø28mm	50M	960TV line
