CX Series 3D Measurement 360° Video Borescope
1 / 3
  • CX Series 3D Measurement 360° Video Borescope
  • CX Series 3D Measurement 360° Video Borescope
  • CX Series 3D Measurement 360° Video Borescope
CX Series 3D Measurement 360° Video Borescope
Description:
- High End Borescope Competitive with GE & Olympus
- 7" HD IPS LCD Monitor
- Wear-ristant Tungsten Braided Probe
- 360 full swing articulation probe. Max 190 each side
- Electric Servo Motor 360°All-way Accurate Articulation
- 1mega pixels HD Camera
- Snapshot & Video Recording
- Super Bright Max 50000 Lux LED brightness adjustment
- Dispatchable Probe & Display
Download file
  • Introduction
  • Specification
  • Model
  • Q&A
  • Features

    Servo Motor Controlled 360° Full Swing Articulation probe
    7"  HD Intelligent Touch Screen




    Electric Servo Motor  360°All-way Accurate Articulation

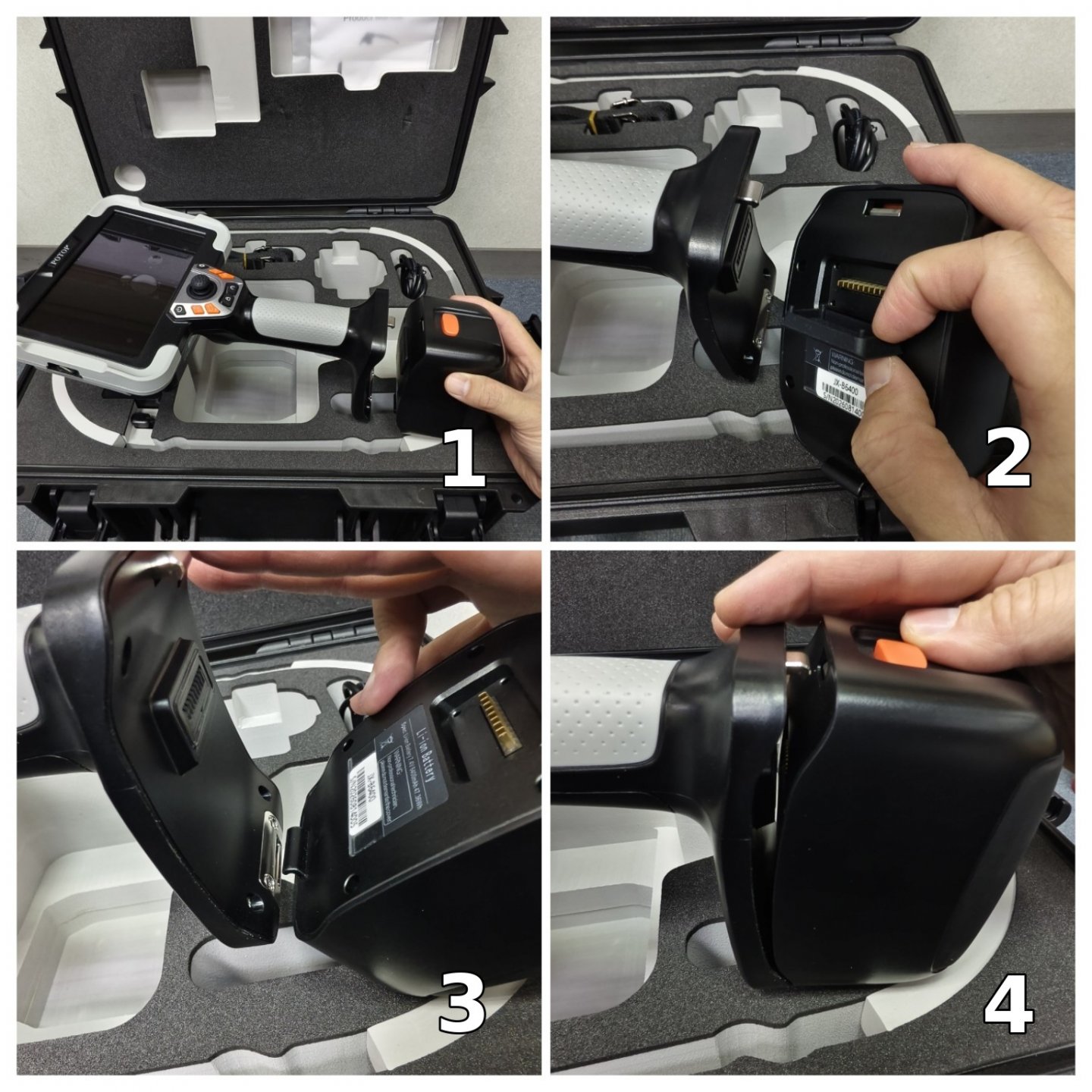

    Modular design, and the host system, tube system and power supply system can be disassembled and separated.
    Independently replace the 1.0mm~8.0mm tube system to meet the needs of different working conditions.




    Craftsmanship, Military Quality

    We have obtained more than 10 invention patents and software copyrights, passed ISO9001/14001 system certification. Us product got CE, RoHS certificates, certificate from the Ministry of Public Security Testing Center and QC inspection report from Ceprei, Credit Rating Certification, GJB9001 National Military Standard System Certification, Explosion Proof Certification, etc.





    3D measurement



    How Stereo Measurement Works?

    Pointed at the same target, the stereo dual-lens system sees a subtle change in the target’s position on the left and right lens. Parallax enables us to get the X, Y, and Z positions of each pixel from the object to calculate length, area, and depth.


    Measurement function (Touch panel)


    distance between two points



    multiple point circumference


    point -to -plane depth



    High precision and fast global scanning 3D cloud image

    High precision and fast global scanning 3D cloud image Fast global scanning to view 3D physical cloud image Vertical depth cloud map, automatic measurement of maximum depth 3D cloud image XYZ coordinate display,arbitrary section view, easy to locate the depth and height difference of internal defects the datum plane shifts and the depth value changes in real time 3D physical cloud image / Vertical depth nephogram

    Profile / Cloud 3D coordinates




    Picture in Picture
    static / dynamic image comparison software


    1920*1200 Super HD image, full


    Smart inspection


    Intelligent operation system

    • Image adjustment: resolution options
    • Camera parameters setting: brightness/ contrast/ gamma/ ray/ saturation/sharpness
    • Image effects: auto balance/ negative film/mirror image or rotation/image freezing
    • Note text: annotation/free drawing/mark




    Picture annotation, free drawing





    WiFi wireless image transmission
    Probe temperature measurement



    MDI report generation

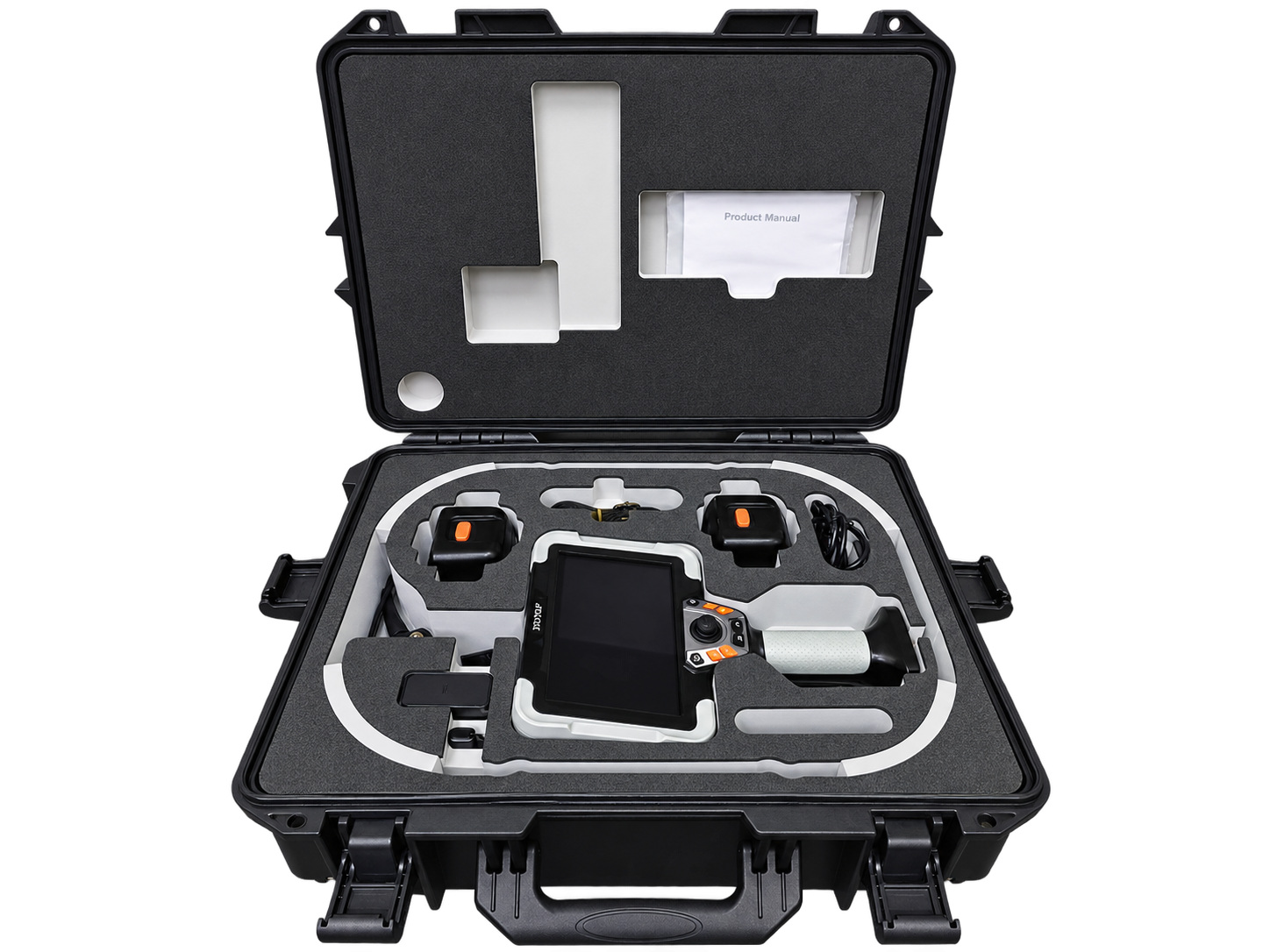

    Packaging case




    CX series videoscopes are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

    The CX Series 3D Measurement 360° Video Borescope represents a significant advancement in inspection technology. With a 360° fully articulated probe and a 7-inch HD intelligent touch screen, it delivers a precise and intuitive operational experience.

    Its modular design allows easy disassembly of the main system, tube system, and power supply system, enabling the independent replacement of tube systems based on specific requirements. Backed by craftsmanship and military-grade quality, it holds numerous invention patents and certifications.

    Supporting 3D measurement capabilities through a stereo dual-lens system, it accurately captures object positions, facilitating calculations for length, area, and depth. The high-precision global scanning of 3D cloud images provides a clear view of the depth and height of internal defects.

    With versatile image adjustment and annotation features, including WiFi wireless image transmission, temperature measurement, and MDI report generation, it caters to a diverse range of applications.

    Widely utilized in automotive manufacturing, inspections, aerospace, and more, the CX Series signifies the pinnacle of inspection, blending technological excellence with precision.

  • Series CX7-10 CX7-18 CX7-22 CX7-28 CX7-38 CX7-60 CX7-80
    Prob​e Diameter Φ1.0mm  Φ1.8mm Φ2.2mm Φ2.8mm Φ3.8mm Φ6.0mm Φ8.0mm
    Viewing Direction 0° front view 0° front view  (90°side view for option)
    Articulation
    Servo Motor
    - two-way 360°
    two-way
    360° all way
    Probe Length 1m 1m~3m 1m~6m
    (3D: 1m~
    3m)
    1m~10m
    (3D: 1m~
    3m)
    DOF
    5-50mm
    front: 10-100mm
    side:3-25mm/
    10-110mm
    3D: 5-50mm
    front: 10-100mm
    side: 3-25mm/10-110mm
    3D: 3-25mm/10-110mm
    FOV 120° front: 120°
    side: 90°
    3D: 120°
    front: 120°
    side: 90° / 120°
    3D: 120°
    Image Resolution 1280 x 720
    Video Resolution 1280 x 720
    Light Source Optical fiber / LED
    Illuminance Max 50000Lx
    Probe Material alloy tungsten-braided
    Bending Angle Φ1.0mm
    no direction

    Max 190°
    Protecting Device of Durability  buffer protection device between the host and wear-resistant tube
    Display 7” IPS touchscreen
    Display Resolution 1920*1200
    Language English / French / German / Japanese / Traditional /Chinese /Simplified Chinese / Korean / Italian
    Software upgrade On-site upgrades are available via SD card and USB storage media
    3D measurement
    (CX7M Series)

    Φ1.0mm~Φ2.8mm non function
    Point to point,point to surface,point to surface depth/multiple point circumference measurement,partial zoom window function(3times calibration),measurement data list
    Image adjustment
    (CX7M Series)


    Φ1.0mm~Φ2.8mm non function
    vertical depth cloud image, 3D physical cloudimage, local section, arbitrary section,XYZ coordinate displayof cloud image, automatic measurement of maximum depth,view of section view, datum translation and real-time display ofdepth dimension
    Utility software MDI report generation software: select the picture, graffiti it,edit the text description under the picture, create the test report and Bluetooth transmission test report
    Image annotation Seal (default/custom), doodle, text input
    Image zoom in/out 8X
    Outer Case Mate Engineering alloy material and aviation aluminum alloy
    Image / Video Format JPG / MP4
    Data Port HDMI port、USB port、type-c port、SD card port、3.0earphone port
    Storage Temperature -23℃~63℃
    Working Temperature Hostr : -15℃~50℃,when 0°C below, the display needspreheating.
    Camera : -25 ℃ ~80 ℃ ,when 0 ° C below, please reduce probe articulation.
    Working Time ≥3h
    Battery Capacity (7.4V,6400mAh)*2
    Power Charge DC12V, 10W
    Videoscope Weight & Size ≈ 2.4 kg(battery included)
    Compatibility The handle can be replaced; with a variety of functional accessories
    Dimention & G.W. Complete Package Size: 61×25×40cm, 10KG
  • CX7M 7" 3D Measurement Series

    Model Tip Dia. Length Articulation Camera Pixels Bend Angle Side View for Option
    CX7M-38014 Ø3.8mm 1M 360˚ 1mega 180˚







    Yes
    CX7M-38024 Ø3.8mm 2M 360˚ 1mega 170˚
    CX7M-38034 Ø3.8mm 3M 360˚ 1mega 160˚
    CX7M-60014 Ø6.0mm 1M 360˚ 1mega 180˚
    CX7M-60024 Ø6.0mm 2M 360˚ 1mega 170˚
    CX7M-60034 Ø6.0mm 3M 360˚ 1mega 160˚
    CX7M-80014 Ø8.0mm 1M 360˚ 1mega 180˚
    CX7M-80024 Ø8.0mm 2M 360˚ 1mega 170˚
    CX7M-80034 Ø8.0mm 3M 360˚ 1mega 160˚


    CX7 7" non 3D measurement series

    Model Tip Dia. Length Articulation Camera Pixels Bend Angle Side View for Option
    CX7-1001 Ø1.0mm 1M - 40,000 -




    Non

    CX7-18012 Ø2.8mm 1M 2-way 300,000 180˚
    CX7-22012 Ø2.2mm 1M 2-way 300,000 180˚
    CX7-22022 Ø2.2mm 2M 2-way 300,000 170˚
    CX7-22032 Ø2.2mm 3M 2-way 300,000 160˚
    CX7-22014 Ø2.2mm 1M 360˚ 300,000 180˚
    CX7-22024 Ø2.2mm 2M 360˚ 300,000 170˚
    CX7-22034 Ø2.2mm 3M 360˚ 300,000 160˚
    CX7-28014 Ø2.8mm 1M 360˚ 300,000 180˚ Yes
    CX7-28024 Ø2.8mm 2M 360˚ 300,000 170˚ Yes
    CX7-28034 Ø2.8mm 3M 360˚ 300,000 160˚ Yes
    CX7-38014 Ø3.8mm 1M 360˚ 1mega 180˚ Yes
    CX7-38024 Ø3.8mm 2M 360˚ 1mega 170˚ Yes
    CX7-38034 Ø3.8mm 3M 360˚ 1mega 160˚ Yes
    CX7-38044 Ø3.8mm 4M 360˚ 1mega 160˚ Yes
    CX7-38054 Ø3.8mm 5M 360˚ 1mega 160˚ Yes
    CX7-38064 Ø3.8mm 6M 360˚ 1mega 160˚ Yes
    CX7-60014 Ø6.0mm 1M 360˚ 1mega 160˚ Yes
    CX7-60024 Ø6.0mm 2M 360˚ 1mega 160˚ Yes
    CX7-60034 Ø6.0mm 3M 360˚ 1mega 150˚ Yes
    CX7-60044 Ø6.0mm 4M 360˚ 1mega 140˚ Yes
    CX7-60054 Ø6.0mm 5M 360˚ 1mega 130˚ Yes
    CX7-60064 Ø6.0mm 6M 360˚ 1mega 120˚ Yes
    CX7-60074 Ø6.0mm 7M 360˚ 1mega 110˚ Yes
    CX7-60084 Ø6.0mm 8M 360˚ 1mega 100˚ Yes
    CX7-60094 Ø6.0mm 9M 360˚ 1mega 90˚ Yes
    CX7-60104 Ø6.0mm 10M 360˚ 1mega 80˚ Yes
    CX7-80014 Ø8.0mm 1M 360˚ 1mega 160˚ Yes
    CX7-80024 Ø8.0mm 2M 360˚ 1mega 160˚ Yes
    CX7-80034 Ø8.0mm 3M 360˚ 1mega 150˚ Yes
    CX7-80044 Ø8.0mm 4M 360˚ 1mega 140˚ Yes
    CX7-80054 Ø8.0mm 5M 360˚ 1mega 130˚ Yes
    CX7-80064 Ø8.0mm 6M 360˚ 1mega 120˚ Yes
    CX7-80074 Ø8.0mm 7M 360˚ 1mega 110˚ Yes
    CX7-80084 Ø8.0mm 8M 360˚ 1mega 100˚ Yes
    CX7-80094 Ø8.0mm 9M 360˚ 1mega 90˚ Yes
    CX7-80104 Ø8.0mm 10M 360˚ 1mega 80˚ Yes
  • There many advantage that articulating video borescopes offer.

    Most NDT applications have small, limited entrance that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corner.

    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even cost effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection device like the
    CT-5 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When CT-5 cameras do not have to be repeatedly manipulate with the purpose of complete inspections, NDT technicians can safe valuable working time.



    Articulating borescopes has an insertion tube of a videoscope usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve the flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.

    Below is common knowledge of these two types:

      Non Articulation Borescope Articulation Borescope
    Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant)
    Assembly Process Easier More Complicated with multi production procedures
    Advantage Basic Inspection at lower price Articulation for better viewing angle. Can do more job in different working environment
    Disadvantage Limited viewing angle for inspection More expensive for new and repair

  • Introduction

    Features

    Servo Motor Controlled 360° Full Swing Articulation probe
    7"  HD Intelligent Touch Screen




    Electric Servo Motor  360°All-way Accurate Articulation



    Modular design, and the host system, tube system and power supply system can be disassembled and separated.
    Independently replace the 1.0mm~8.0mm tube system to meet the needs of different working conditions.




    Craftsmanship, Military Quality

    We have obtained more than 10 invention patents and software copyrights, passed ISO9001/14001 system certification. Us product got CE, RoHS certificates, certificate from the Ministry of Public Security Testing Center and QC inspection report from Ceprei, Credit Rating Certification, GJB9001 National Military Standard System Certification, Explosion Proof Certification, etc.





    3D measurement



    How Stereo Measurement Works?

    Pointed at the same target, the stereo dual-lens system sees a subtle change in the target’s position on the left and right lens. Parallax enables us to get the X, Y, and Z positions of each pixel from the object to calculate length, area, and depth.


    Measurement function (Touch panel)


    distance between two points



    multiple point circumference


    point -to -plane depth



    High precision and fast global scanning 3D cloud image

    High precision and fast global scanning 3D cloud image Fast global scanning to view 3D physical cloud image Vertical depth cloud map, automatic measurement of maximum depth 3D cloud image XYZ coordinate display,arbitrary section view, easy to locate the depth and height difference of internal defects the datum plane shifts and the depth value changes in real time 3D physical cloud image / Vertical depth nephogram

    Profile / Cloud 3D coordinates




    Picture in Picture
    static / dynamic image comparison software


    1920*1200 Super HD image, full


    Smart inspection


    Intelligent operation system

    • Image adjustment: resolution options
    • Camera parameters setting: brightness/ contrast/ gamma/ ray/ saturation/sharpness
    • Image effects: auto balance/ negative film/mirror image or rotation/image freezing
    • Note text: annotation/free drawing/mark




    Picture annotation, free drawing





    WiFi wireless image transmission
    Probe temperature measurement



    MDI report generation








    Packaging case




    CX series videoscopes are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

    The CX Series 3D Measurement 360° Video Borescope represents a significant advancement in inspection technology. With a 360° fully articulated probe and a 7-inch HD intelligent touch screen, it delivers a precise and intuitive operational experience.

    Its modular design allows easy disassembly of the main system, tube system, and power supply system, enabling the independent replacement of tube systems based on specific requirements. Backed by craftsmanship and military-grade quality, it holds numerous invention patents and certifications.

    Supporting 3D measurement capabilities through a stereo dual-lens system, it accurately captures object positions, facilitating calculations for length, area, and depth. The high-precision global scanning of 3D cloud images provides a clear view of the depth and height of internal defects.

    With versatile image adjustment and annotation features, including WiFi wireless image transmission, temperature measurement, and MDI report generation, it caters to a diverse range of applications.

    Widely utilized in automotive manufacturing, inspections, aerospace, and more, the CX Series signifies the pinnacle of inspection, blending technological excellence with precision.

  • Specification
    Series CX7-10 CX7-18 CX7-22 CX7-28 CX7-38 CX7-60 CX7-80
    Prob​e Diameter Φ1.0mm  Φ1.8mm Φ2.2mm Φ2.8mm Φ3.8mm Φ6.0mm Φ8.0mm
    Viewing Direction 0° front view 0° front view  (90°side view for option)
    Articulation
    Servo Motor
    - two-way 360°
    two-way
    360° all way
    Probe Length 1m 1m~3m 1m~6m
    (3D: 1m~
    3m)
    1m~10m
    (3D: 1m~
    3m)
    DOF
    5-50mm
    front: 10-100mm
    side:3-25mm/
    10-110mm
    3D: 5-50mm
    front: 10-100mm
    side: 3-25mm/10-110mm
    3D: 3-25mm/10-110mm
    FOV 120° front: 120°
    side: 90°
    3D: 120°
    front: 120°
    side: 90° / 120°
    3D: 120°
    Image Resolution 1280 x 720
    Video Resolution 1280 x 720
    Light Source Optical fiber / LED
    Illuminance Max 50000Lx
    Probe Material alloy tungsten-braided
    Bending Angle Φ1.0mm
    no direction

    Max 190°
    Protecting Device of Durability  buffer protection device between the host and wear-resistant tube
    Display 7” IPS touchscreen
    Display Resolution 1920*1200
    Language English / French / German / Japanese / Traditional /Chinese /Simplified Chinese / Korean / Italian
    Software upgrade On-site upgrades are available via SD card and USB storage media
    3D measurement
    (CX7M Series)

    Φ1.0mm~Φ2.8mm non function
    Point to point,point to surface,point to surface depth/multiple point circumference measurement,partial zoom window function(3times calibration),measurement data list
    Image adjustment
    (CX7M Series)


    Φ1.0mm~Φ2.8mm non function
    vertical depth cloud image, 3D physical cloudimage, local section, arbitrary section,XYZ coordinate displayof cloud image, automatic measurement of maximum depth,view of section view, datum translation and real-time display ofdepth dimension
    Utility software MDI report generation software: select the picture, graffiti it,edit the text description under the picture, create the test report and Bluetooth transmission test report
    Image annotation Seal (default/custom), doodle, text input
    Image zoom in/out 8X
    Outer Case Mate Engineering alloy material and aviation aluminum alloy
    Image / Video Format JPG / MP4
    Data Port HDMI port、USB port、type-c port、SD card port、3.0earphone port
    Storage Temperature -23℃~63℃
    Working Temperature Hostr : -15℃~50℃,when 0°C below, the display needspreheating.
    Camera : -25 ℃ ~80 ℃ ,when 0 ° C below, please reduce probe articulation.
    Working Time ≥3h
    Battery Capacity (7.4V,6400mAh)*2
    Power Charge DC12V, 10W
    Videoscope Weight & Size ≈ 2.4 kg(battery included)
    Compatibility The handle can be replaced; with a variety of functional accessories
    Dimention & G.W. Complete Package Size: 61×25×40cm, 10KG
  • Model

    CX7M 7" 3D Measurement Series

    Model Tip Dia. Length Articulation Camera Pixels Bend Angle Side View for Option
    CX7M-38014 Ø3.8mm 1M 360˚ 1mega 180˚







    Yes
    CX7M-38024 Ø3.8mm 2M 360˚ 1mega 170˚
    CX7M-38034 Ø3.8mm 3M 360˚ 1mega 160˚
    CX7M-60014 Ø6.0mm 1M 360˚ 1mega 180˚
    CX7M-60024 Ø6.0mm 2M 360˚ 1mega 170˚
    CX7M-60034 Ø6.0mm 3M 360˚ 1mega 160˚
    CX7M-80014 Ø8.0mm 1M 360˚ 1mega 180˚
    CX7M-80024 Ø8.0mm 2M 360˚ 1mega 170˚
    CX7M-80034 Ø8.0mm 3M 360˚ 1mega 160˚


    CX7 7" non 3D measurement series

    Model Tip Dia. Length Articulation Camera Pixels Bend Angle Side View for Option
    CX7-1001 Ø1.0mm 1M - 40,000 -




    Non

    CX7-18012 Ø2.8mm 1M 2-way 300,000 180˚
    CX7-22012 Ø2.2mm 1M 2-way 300,000 180˚
    CX7-22022 Ø2.2mm 2M 2-way 300,000 170˚
    CX7-22032 Ø2.2mm 3M 2-way 300,000 160˚
    CX7-22014 Ø2.2mm 1M 360˚ 300,000 180˚
    CX7-22024 Ø2.2mm 2M 360˚ 300,000 170˚
    CX7-22034 Ø2.2mm 3M 360˚ 300,000 160˚
    CX7-28014 Ø2.8mm 1M 360˚ 300,000 180˚ Yes
    CX7-28024 Ø2.8mm 2M 360˚ 300,000 170˚ Yes
    CX7-28034 Ø2.8mm 3M 360˚ 300,000 160˚ Yes
    CX7-38014 Ø3.8mm 1M 360˚ 1mega 180˚ Yes
    CX7-38024 Ø3.8mm 2M 360˚ 1mega 170˚ Yes
    CX7-38034 Ø3.8mm 3M 360˚ 1mega 160˚ Yes
    CX7-38044 Ø3.8mm 4M 360˚ 1mega 160˚ Yes
    CX7-38054 Ø3.8mm 5M 360˚ 1mega 160˚ Yes
    CX7-38064 Ø3.8mm 6M 360˚ 1mega 160˚ Yes
    CX7-60014 Ø6.0mm 1M 360˚ 1mega 160˚ Yes
    CX7-60024 Ø6.0mm 2M 360˚ 1mega 160˚ Yes
    CX7-60034 Ø6.0mm 3M 360˚ 1mega 150˚ Yes
    CX7-60044 Ø6.0mm 4M 360˚ 1mega 140˚ Yes
    CX7-60054 Ø6.0mm 5M 360˚ 1mega 130˚ Yes
    CX7-60064 Ø6.0mm 6M 360˚ 1mega 120˚ Yes
    CX7-60074 Ø6.0mm 7M 360˚ 1mega 110˚ Yes
    CX7-60084 Ø6.0mm 8M 360˚ 1mega 100˚ Yes
    CX7-60094 Ø6.0mm 9M 360˚ 1mega 90˚ Yes
    CX7-60104 Ø6.0mm 10M 360˚ 1mega 80˚ Yes
    CX7-80014 Ø8.0mm 1M 360˚ 1mega 160˚ Yes
    CX7-80024 Ø8.0mm 2M 360˚ 1mega 160˚ Yes
    CX7-80034 Ø8.0mm 3M 360˚ 1mega 150˚ Yes
    CX7-80044 Ø8.0mm 4M 360˚ 1mega 140˚ Yes
    CX7-80054 Ø8.0mm 5M 360˚ 1mega 130˚ Yes
    CX7-80064 Ø8.0mm 6M 360˚ 1mega 120˚ Yes
    CX7-80074 Ø8.0mm 7M 360˚ 1mega 110˚ Yes
    CX7-80084 Ø8.0mm 8M 360˚ 1mega 100˚ Yes
    CX7-80094 Ø8.0mm 9M 360˚ 1mega 90˚ Yes
    CX7-80104 Ø8.0mm 10M 360˚ 1mega 80˚ Yes
  • Q&A

    There many advantage that articulating video borescopes offer.

    Most NDT applications have small, limited entrance that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corner.

    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even cost effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection device like the
    CT-5 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When CT-5 cameras do not have to be repeatedly manipulate with the purpose of complete inspections, NDT technicians can safe valuable working time.



    Articulating borescopes has an insertion tube of a videoscope usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve the flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.

    Below is common knowledge of these two types:

      Non Articulation Borescope Articulation Borescope
    Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant)
    Assembly Process Easier More Complicated with multi production procedures
    Advantage Basic Inspection at lower price Articulation for better viewing angle. Can do more job in different working environment
    Disadvantage Limited viewing angle for inspection More expensive for new and repair
