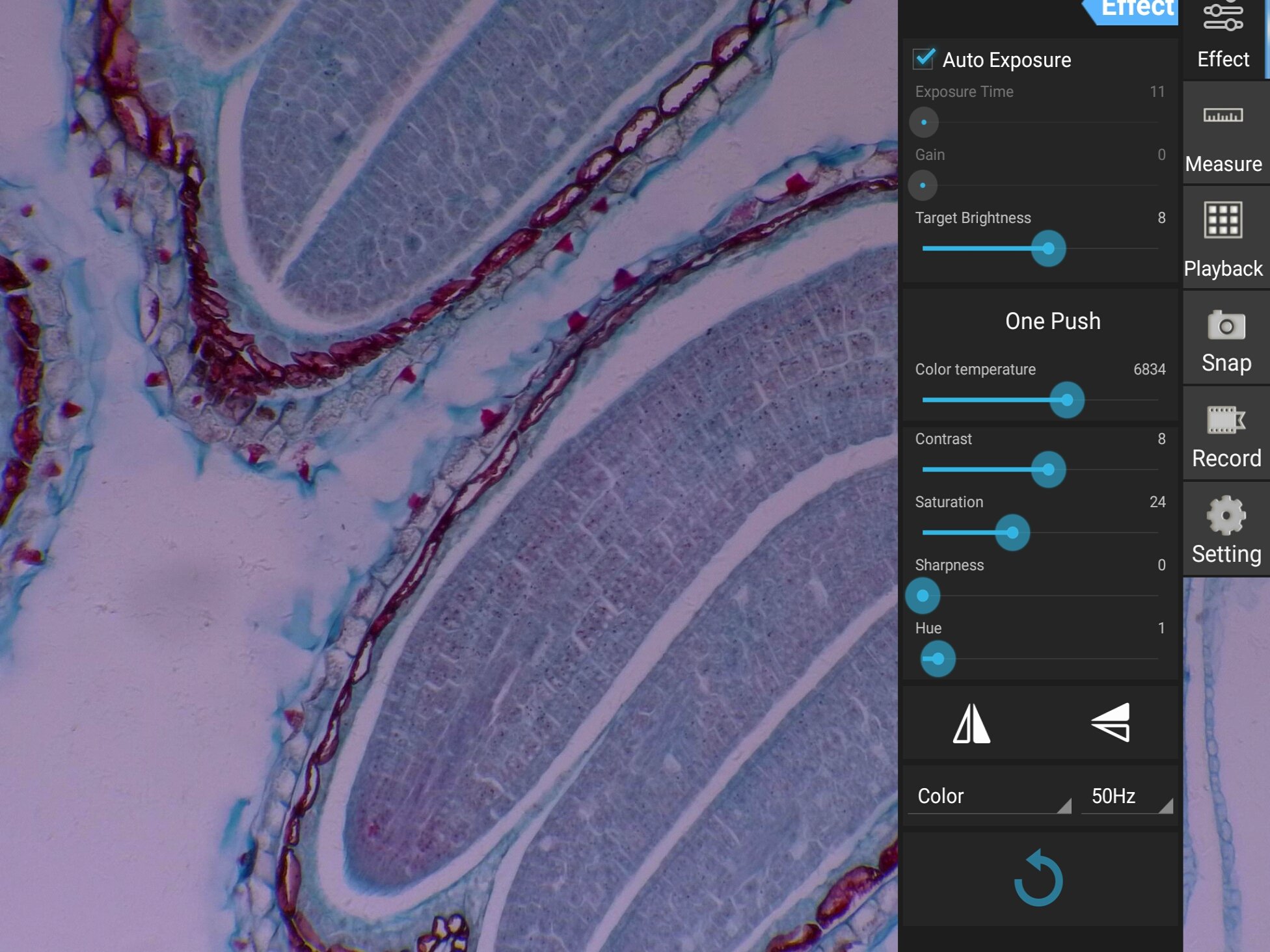

  Effect adjustment screen

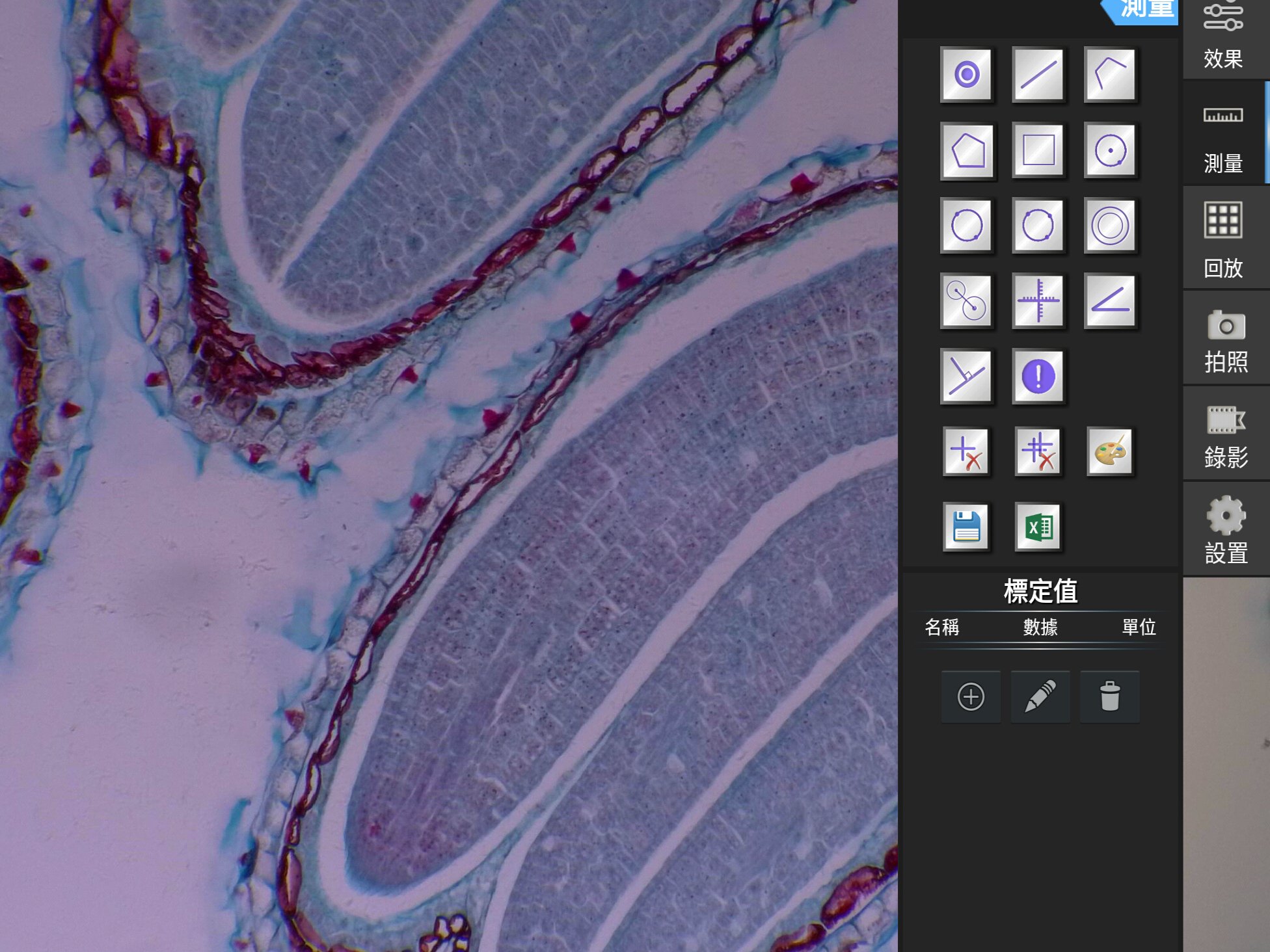

  Measurement tool screen

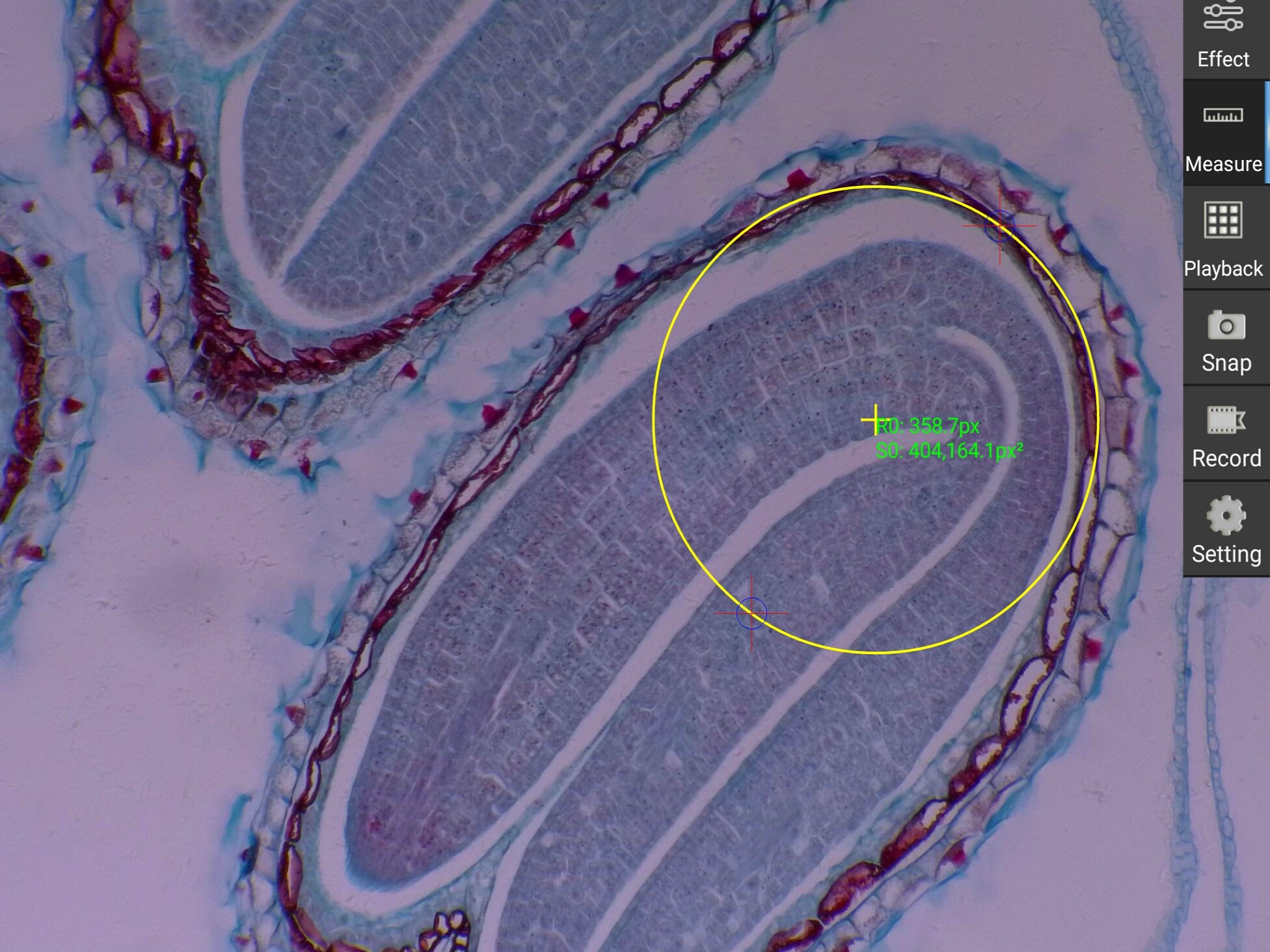

  Measurement tool screen-circumference and area measurement

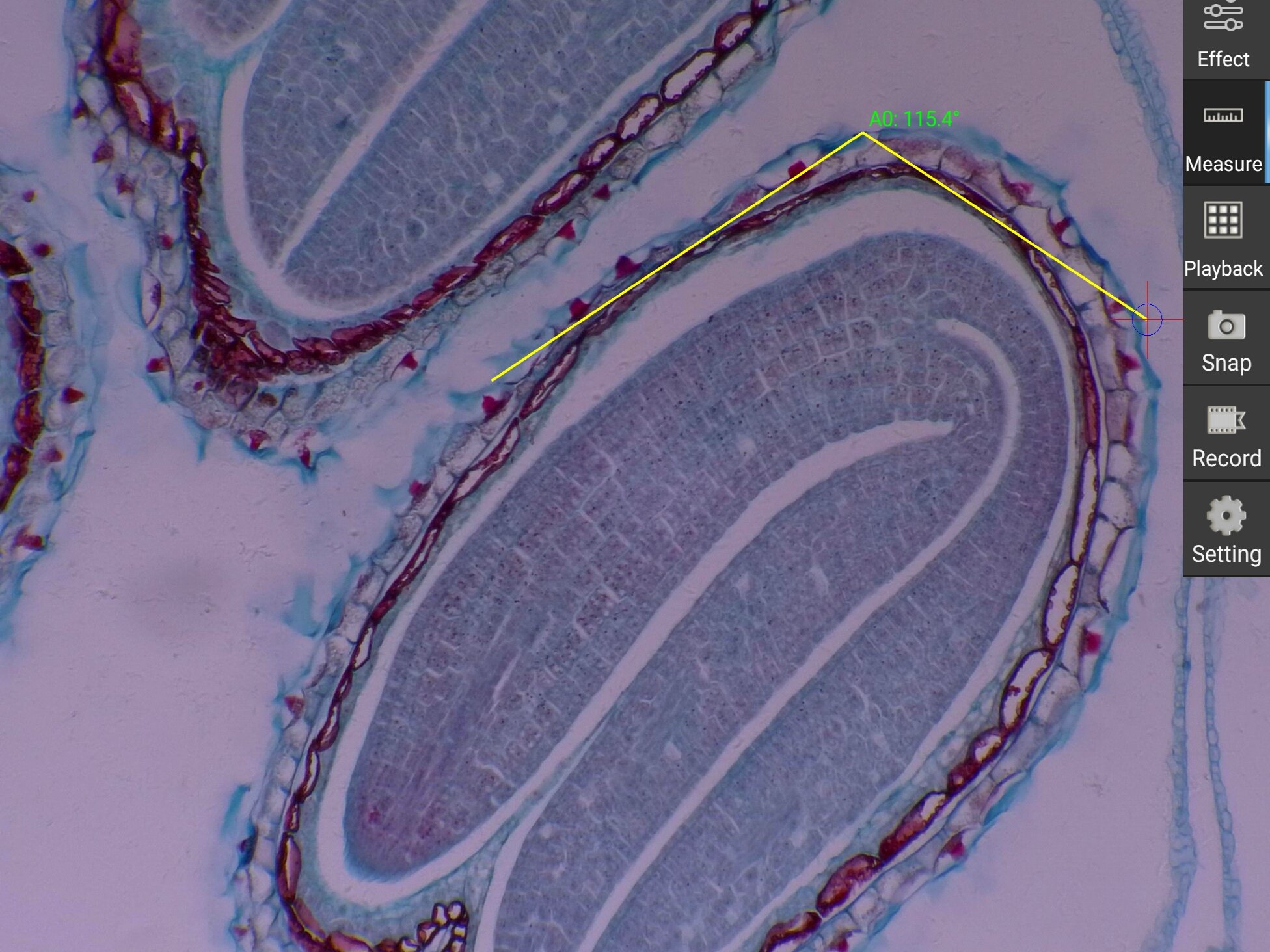

  Measurement tool screen-angle measurement

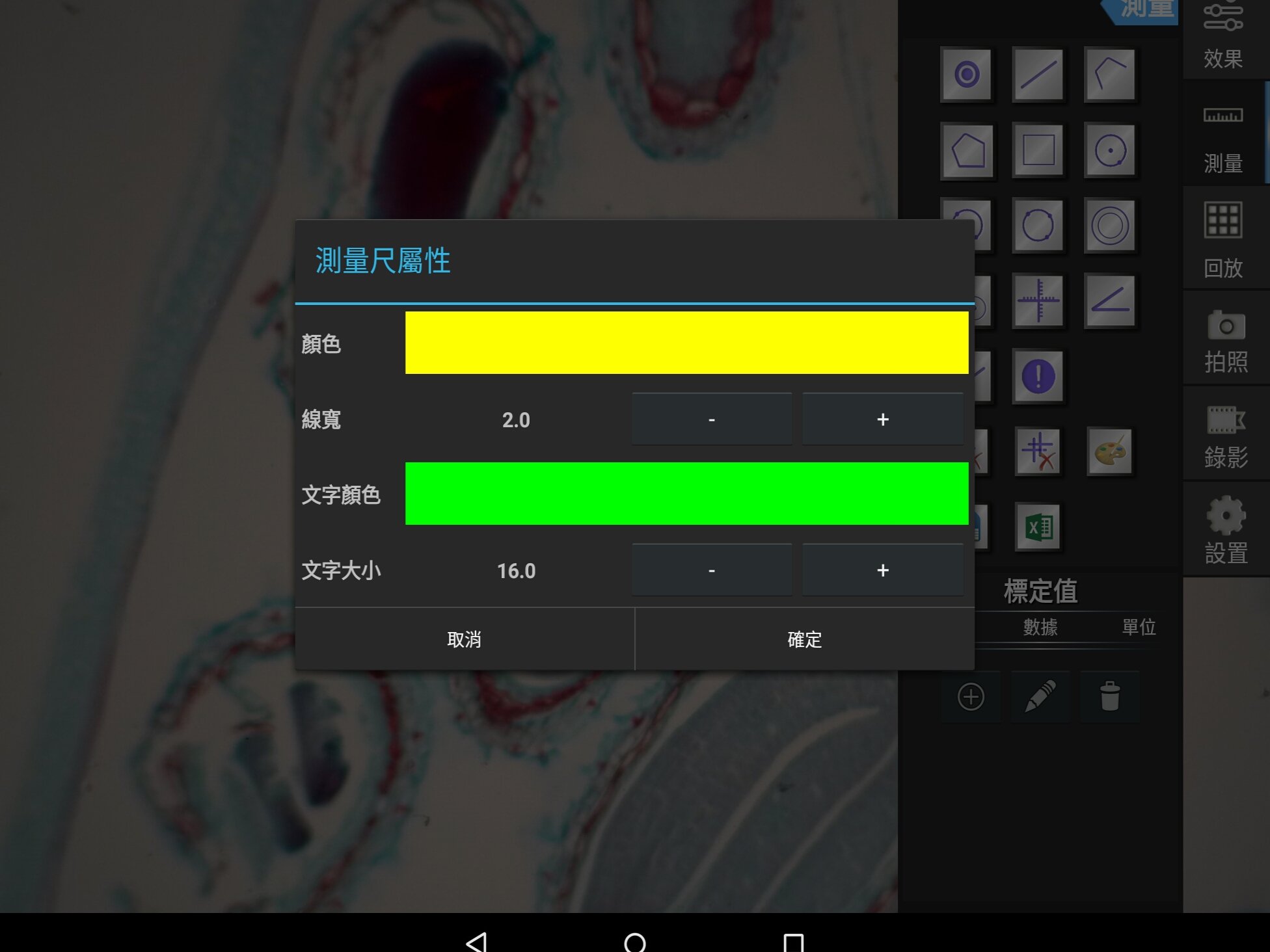

  Measuring Tool Screen-Measuring Ruler Properties

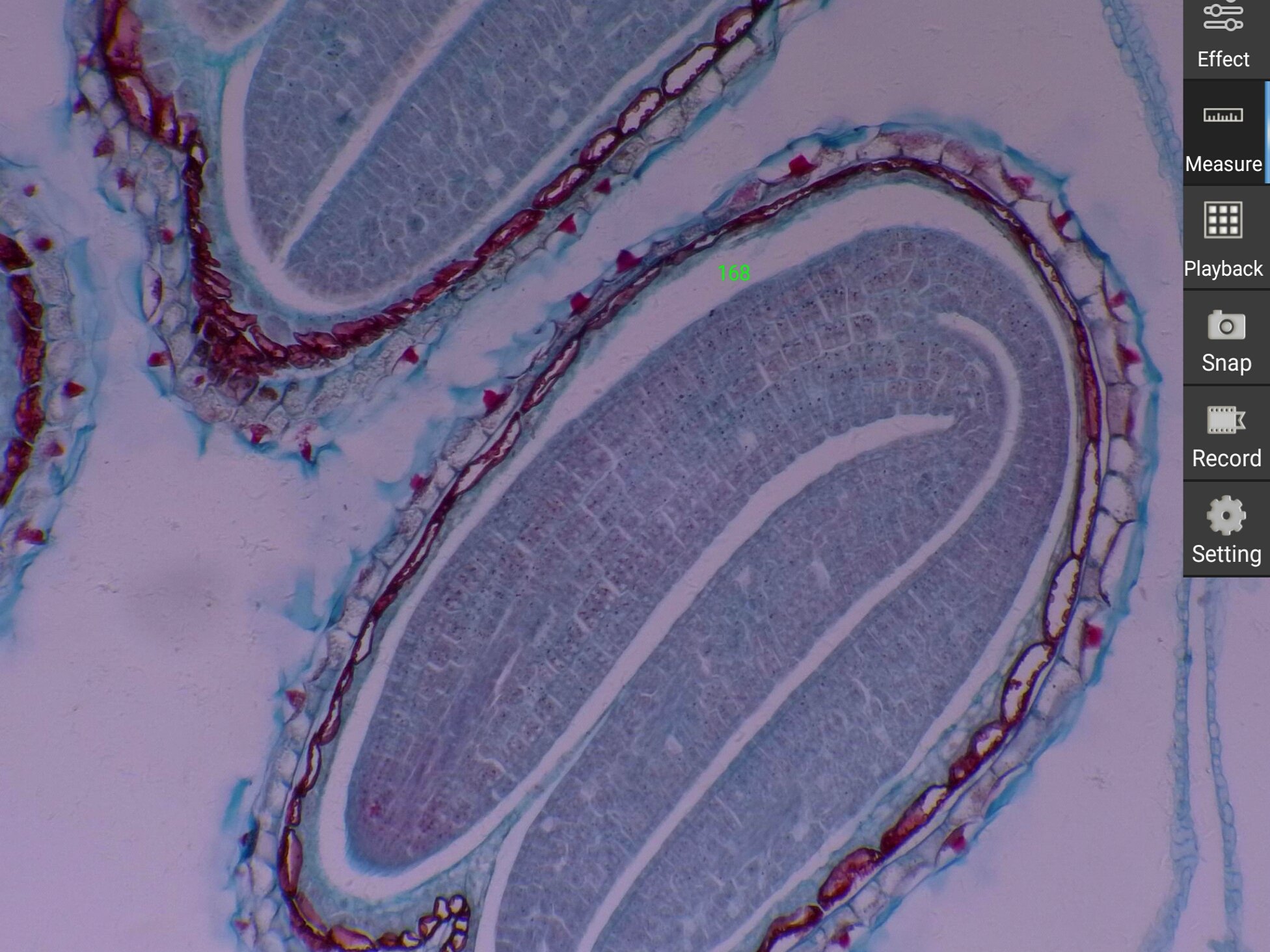

  Measuring tool screen-text mark



  CME Series Introduction

  The CME Series offers outstanding image quality and a diverse range of measurement tools, providing you with versatile solutions for various applications.

  To begin with, the Effect Adjustment Screen allows you to easily fine-tune and optimize the image quality, ensuring a clear and detailed visual experience.

  Within the Measurement Tool Screen, the CME Series presents a wealth of measurement functionalities. You can effortlessly conduct circumference and area measurements, as well as utilize the angle measurement tool to precisely measure angles between objects.

  Moreover, the CME Series is equipped with features like Measuring Ruler Properties and Text Mark on the Measurement Tool Screen, enabling you to comprehensively record and describe measurement results.

  The CME Series not only delivers exceptional effect adjustments but also combines multifunctional measurement tools to meet a variety of needs in different scenarios. This innovative series will bring greater convenience and efficiency to your work.


• Specificfation

  Model	CME-5699
  CMOS Pixel	5.0 Mega Pixel
  CMOS Size	1/2.5"
  Pixel Size	2.2μm X 2.2μm
  Frame Rate	2048 X 1563 (15/fps)
  Display	9.7"
  Image output method	USB2.0、HDMI、WIFI、TF
  Operating system	Android 5.1.1 version
  Wifi	2.4GHz/5GHz dual-band WIFI support 802.11a/b/g/n/ac protocol
  Bluetooth	Bluetooth 4.0
  Power	supply DC-12V/2A
  Basic functions	brightness, contrast, saturation, white balance
  Image quality	adjustment Exposure, sharpness, Gamma, color,temperature adjustment
  Camera function	Mirror, flip
  UI interface	Mouse operation and touch operation
  Take photos and videos	16 million pixel photos, 1080P video
  Storage function	Instant photo, video, picture preview, SD card format
  Marking function	Point coordinates, crosshairs, coordinate system, text annotations
  Length measurement	Straight line length, broken line length, curve length, parallel line distance, dot line distance
  Geometric measurement	Line segment length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circle, radius fixed circle
  Geometric area measurement	Polygon, square
  measuring system	Built-in S-EYE test software
  Dimensions	238 X 51 X 206 mm
  Single machine weight	0.6 kg
  Standard accessories	DC-12V/2A power supply
