• Specificfation

  Features	Description

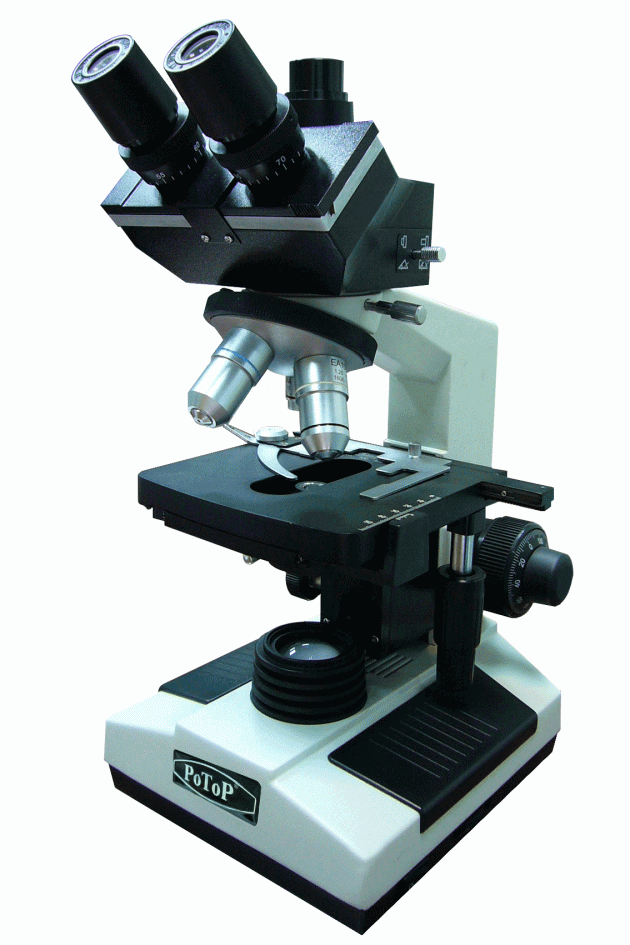

  Model	PB-3730
  Viewing head	Triples measuring single tube 45 ° angle 360 ° rotation
  Eyepiece	WF10 X / WF16X
  Objective	Achromate objective: Achromate 4X/0.10 Achromate 10X/0.25 Achromate 40X/0.65 Achromate 100X/1.25
  Stage	Double layers mechanical stage Stage size: 140mm × 140mm Moving range: 70mm × 50mm
  Condenser	N.A1.25 Abbe condenser with iris diaphragm
  Focusing	Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm
  Illumination	6V20W Built-in brightness Variable
