• Introduction

  Introduction

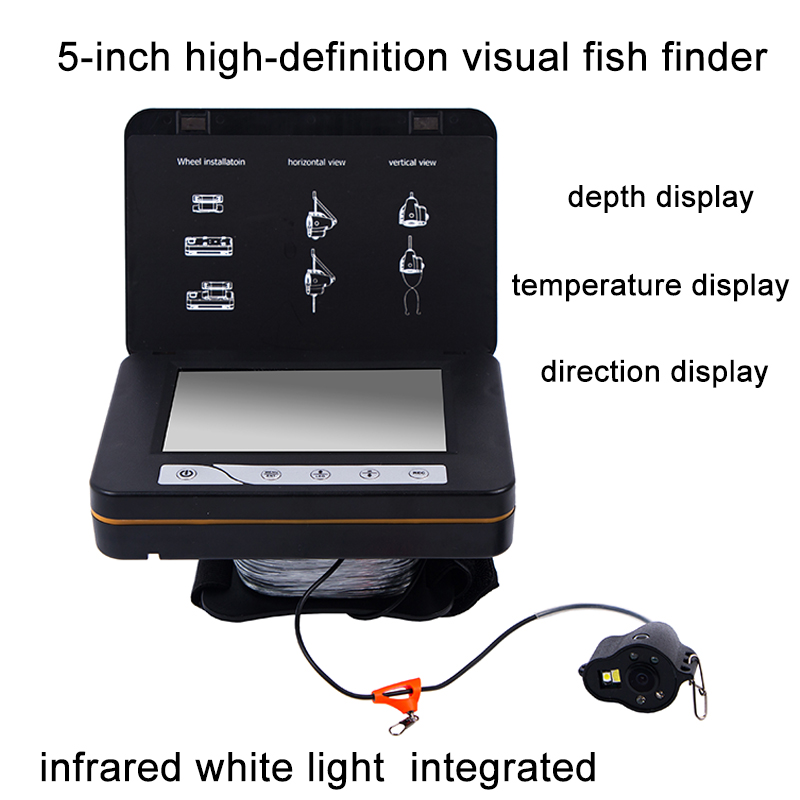

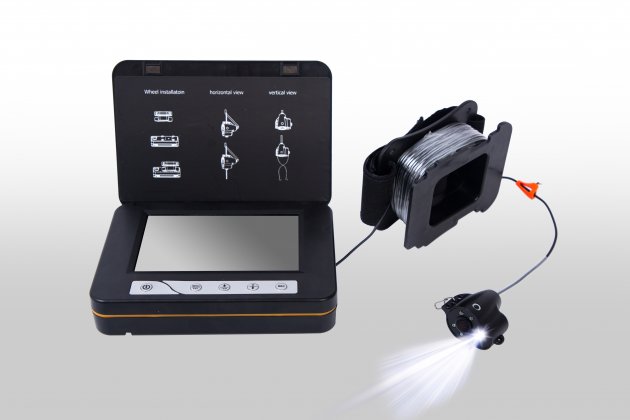

  5" HD high-definition infrared white
  light integrated visual fish finder








  depht display. temperature display. direction


  For high-intensity infrared lights.
  adjustable three-gear light switchable.





  product description

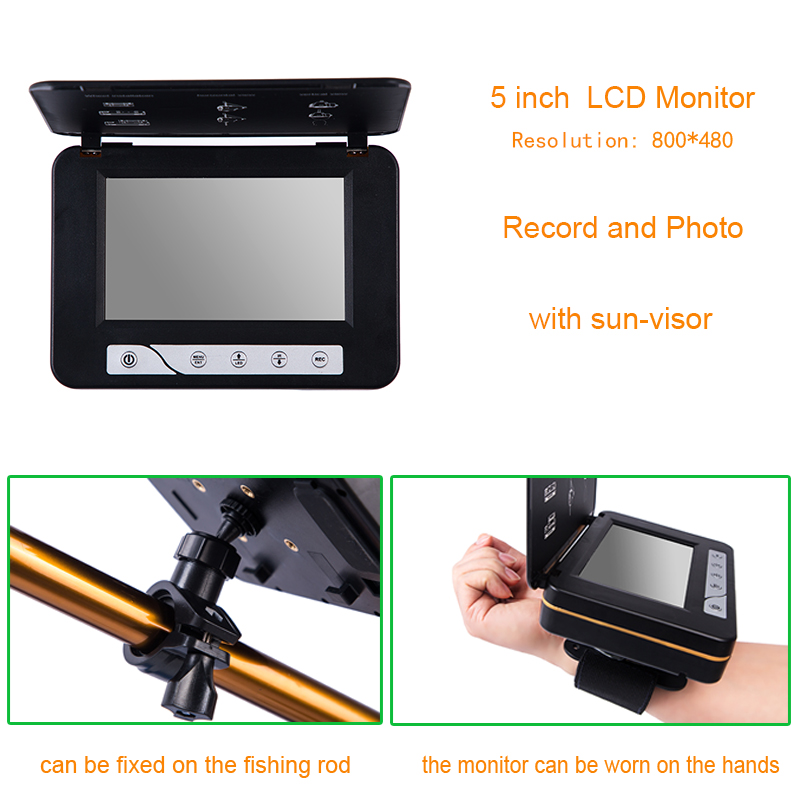

  Can be attached to a fishing rod or arm






  Size

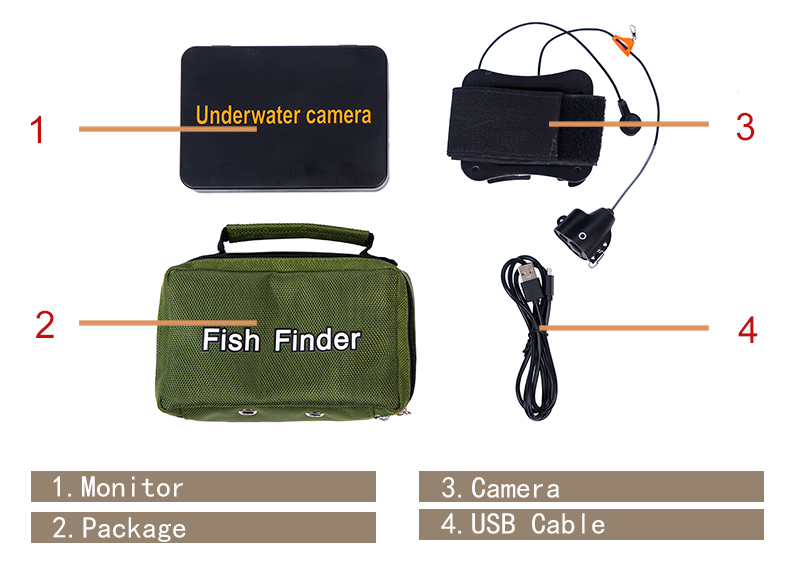

  Product composition







• Specification


  Model	F49 Series
  Display	5 inches HD color LCD monitor
  Display Resolution	800 x 480
  Camera size	42 x 44 mm
  Illumination	white/infrared integrated camera
  Camera F.O.V.	wide angle
  Camera Res.	800 x 480
  Cable Length	15M
  Image Storage	TF card
  Function	Photo, video recording
  Working Temperature	-20℃ to 60℃
  Store Temperature	-30℃ to 80℃
  Water Proof	Camera: IP68
  Language	English / Chinese

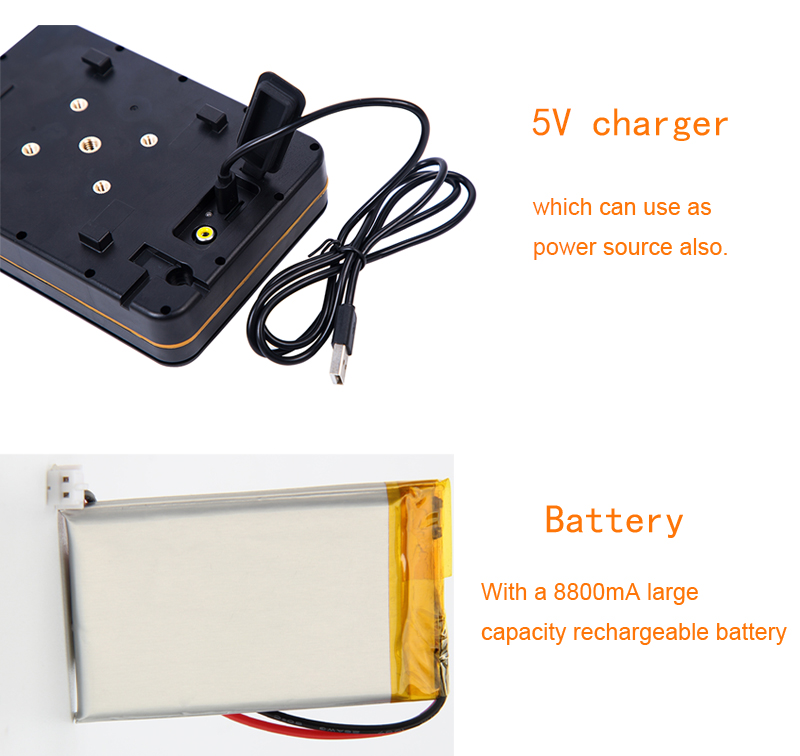

  Battery	Lithium Battery  8800MA
  Power Supply	DC5V
  Package size	18*14*8 CM  0.96KG
  Package	Monitor / Package / Camera / USB Cable

• Model





  Model	Display	Camera size	Length	Cable dia.
  F49-4415	5"	44x26x42 mm	15M	1.8mm
