Dual Cameras Switch Probe ( J Series )
1 / 1
  • Dual Cameras Switch Probe ( J Series )

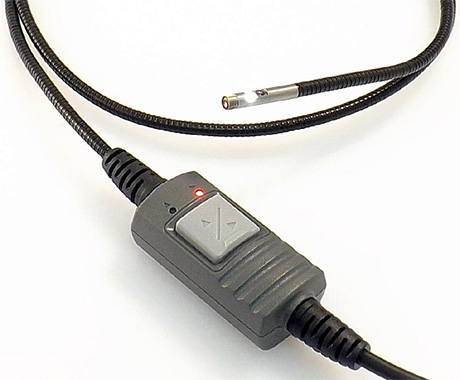

Dual Cameras Switch Probe ( J Series )
Description:
Ø4.9mm Dual Cameras Switch probe, including dual camera lens with LED sets in one probe and effective solution for forward-view and side-view switching.

You don't need the mirror set to be the 90° side view, just clicking the button to change forward-view and 90° side-view quickly and easily.
  • Introduction
  • Specification
  • Console System
  • Model
  • Optional Accessory
  • Application
  •
  • Features Description
    Tip Diamete Ø 4.9 mm
    Type of Camera Dual Cameras ( Front & Side )
    Camera Length 28mm
    Camera Material Stainless Steel
    Probe Material Semi-Rigid
    F.O.V 56°
    D.O.F. 10 mm ~ 60 mm
    Resolution 320 X 240 ( QVGA )
    Working Temperature 0°C ~ 55°C
    Light Source Front : White LED * 2
    Side : White LED * 1
    Probe Length 1M / 2M / 3M
    Waterpoof IP67
    Function Change Camera to Front / Side View
  •

    JK Main Console System

     ‧ Large 7" HQ LCD Monitor (800*480)
    ‧ Snapshot & Video Recording with Audio (640*480)
    ‧ LED brightness adjustment
    ‧ Mirror Image & Image Rotation
    ‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
    ‧ USB to PC Conneciotn
    ‧ Live View Software to PC
    ‧ Long duty hour up to 6 hrs
    ‧ 1 meter drop test
    ‧ Waterproof and dustproof grade IP 55

    Read More

    JF Main Console System

    ‧ 3.5" TFT LCD Monitor (320*240)
    ‧ Snapshot & Video Recording (640*480)
    ‧ LED brightness adjustment
    ‧ 2X Zoom In & Mirror Image
    ‧ USB to PC Conneciotn

    Read More
  • Model Type of Probe Tip Dia. Length Material of Tube Console System
    JKR-4901S Dual Camera Ø 4.9mm 1M Semi-Rigid 7" Monitor
    JKR-4902S Dual Camera Ø 4.9mm 2M Semi-Rigid 7" Monitor
    JKR-4903S Dual Camera Ø 4.9mm 3M Semi-Rigid 7" Monitor
    JFR-4901S Dual Camera Ø 4.9mm 1M Semi-Rigid 3.5" Monitor
    JFR-4902S Dual Camera Ø 4.9mm 2M Semi-Rigid 3.5" Monitor
    JFR-4903S Dual Camera Ø 4.9mm 3M Semi-Rigid 3.5" Monitor
  •
  • Building Data...
  • Introduction

  • Specification
    Features Description
    Tip Diamete Ø 4.9 mm
    Type of Camera Dual Cameras ( Front & Side )
    Camera Length 28mm
    Camera Material Stainless Steel
    Probe Material Semi-Rigid
    F.O.V 56°
    D.O.F. 10 mm ~ 60 mm
    Resolution 320 X 240 ( QVGA )
    Working Temperature 0°C ~ 55°C
    Light Source Front : White LED * 2
    Side : White LED * 1
    Probe Length 1M / 2M / 3M
    Waterpoof IP67
    Function Change Camera to Front / Side View
  • Console System


    JK Main Console System

     ‧ Large 7" HQ LCD Monitor (800*480)
    ‧ Snapshot & Video Recording with Audio (640*480)
    ‧ LED brightness adjustment
    ‧ Mirror Image & Image Rotation
    ‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
    ‧ USB to PC Conneciotn
    ‧ Live View Software to PC
    ‧ Long duty hour up to 6 hrs
    ‧ 1 meter drop test
    ‧ Waterproof and dustproof grade IP 55

    Read More

    JF Main Console System

    ‧ 3.5" TFT LCD Monitor (320*240)
    ‧ Snapshot & Video Recording (640*480)
    ‧ LED brightness adjustment
    ‧ 2X Zoom In & Mirror Image
    ‧ USB to PC Conneciotn

    Read More
  • Model
    Model Type of Probe Tip Dia. Length Material of Tube Console System
    JKR-4901S Dual Camera Ø 4.9mm 1M Semi-Rigid 7" Monitor
    JKR-4902S Dual Camera Ø 4.9mm 2M Semi-Rigid 7" Monitor
    JKR-4903S Dual Camera Ø 4.9mm 3M Semi-Rigid 7" Monitor
    JFR-4901S Dual Camera Ø 4.9mm 1M Semi-Rigid 3.5" Monitor
    JFR-4902S Dual Camera Ø 4.9mm 2M Semi-Rigid 3.5" Monitor
    JFR-4903S Dual Camera Ø 4.9mm 3M Semi-Rigid 3.5" Monitor
  • Optional Accessory

  • Application
    Building Data...
